Installation Procedure

  1. Install the console to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screws that retain the front of the console.

    Tighten

    Tighten the screws to 7 N.m (63 lb in).

  3. Install the cup holder insert.
  4. Install the nuts that retain the rear of the console.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

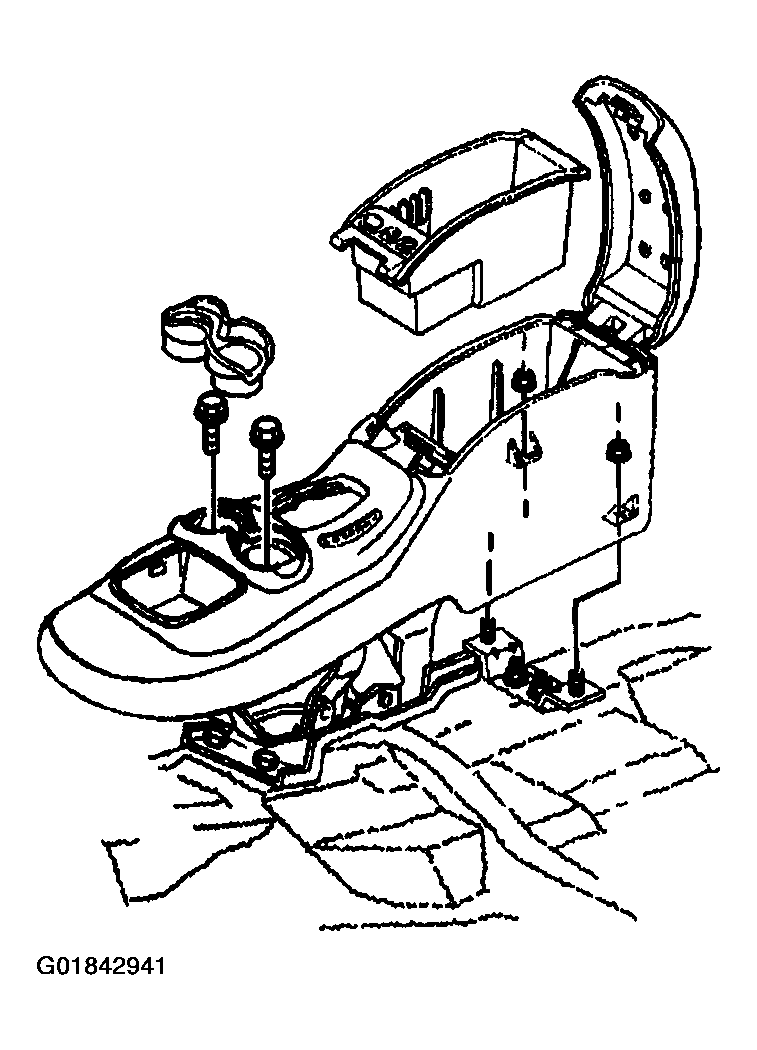

    Fig 1: Identifying Front Full Length Floor Console Components - (Auto Trans)
    G01842941Courtesy of GENERAL MOTORS CORP.
  5. Install the transmission select switch (if equipped).

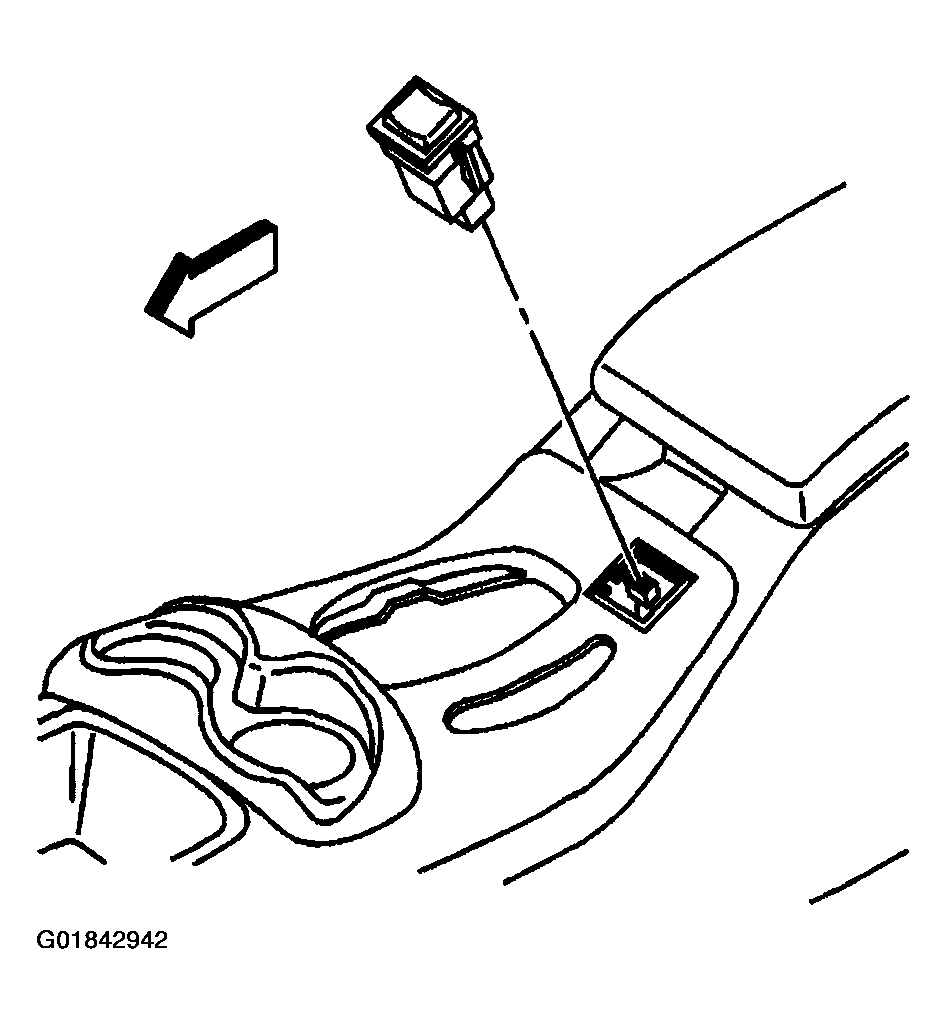

    Fig 2: Locating Transmission Select Switch
    G01842942Courtesy of GENERAL MOTORS CORP.
  6. Install the console compartment insert.
  7. Install the console compartment insert screws.

    Tighten

    Tighten the nuts to 1.9 N.m (17 lb in).

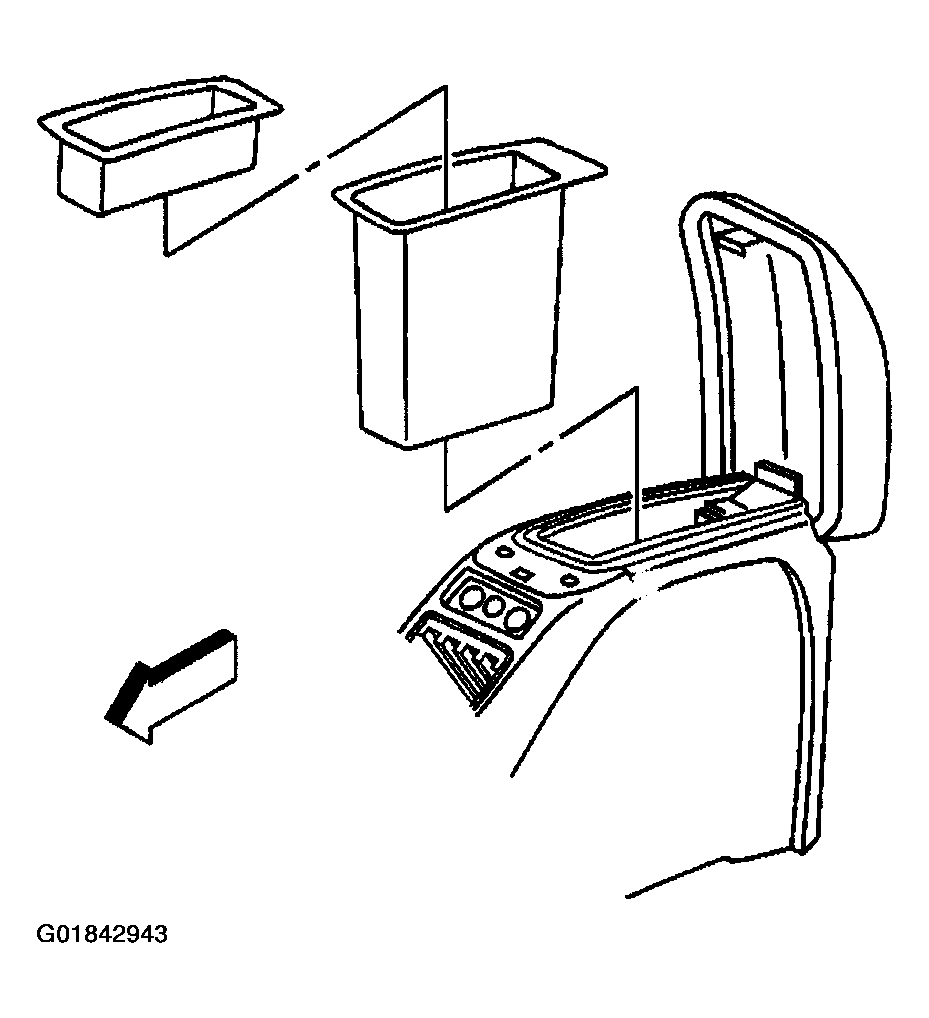

    Fig 3: Locating Console Compartment Inserts
    G01842943Courtesy of GENERAL MOTORS CORP.
  8. Install the shift handle to the shift lever.
  9. Install the shift handle retaining clip at the front of the handle.
    Fig 4: Locating Shift Handle Retaining Clip
    G01842944Courtesy of GENERAL MOTORS CORP.
