Removal Procedure

  1. For manual transmission only, remove the shift control lever. Refer to CONTROL LEVER &/OR BOOT REPLACEMENT in MANUAL TRANSMISSION - NV 1500 article.
  2. Remove the console from the floor.

    Pull up on the console in order to release the retainer clips.

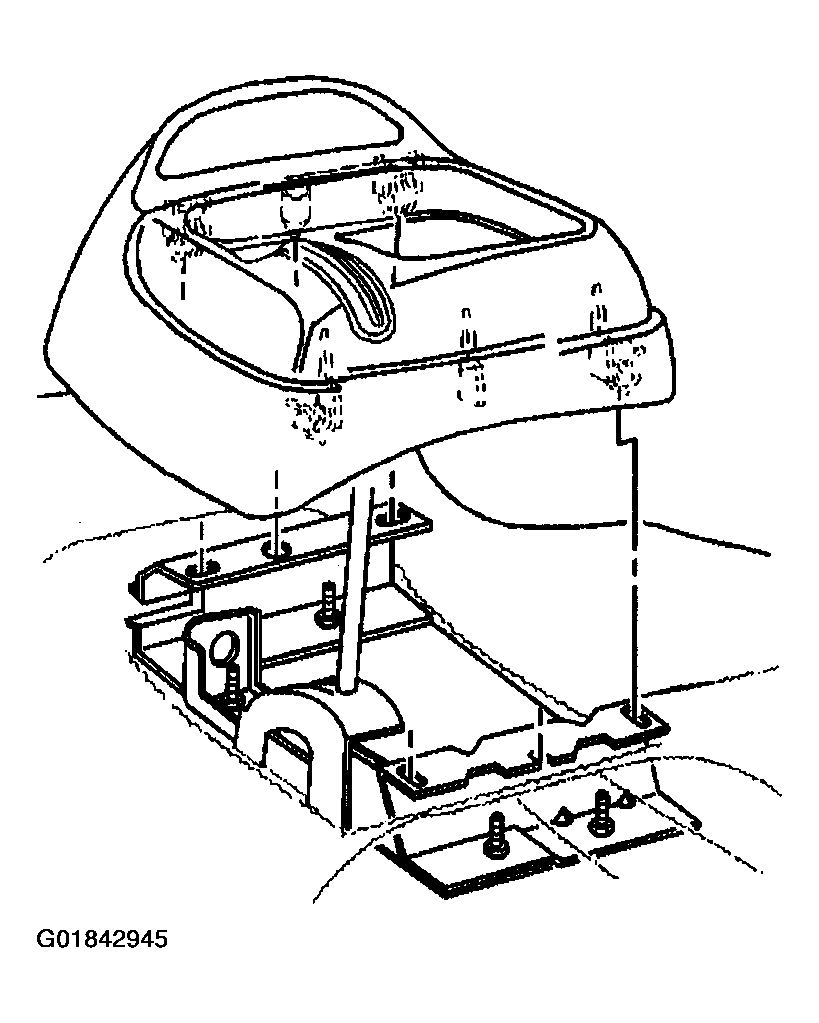

    Fig 1: Identifying Front Floor Console Components - (Non-Full Length)
    G01842945Courtesy of GENERAL MOTORS CORP.
