Installation Procedure

  1. Use care when installing the console so the clips do not bend.
  2. Install the console to the floor.
  3. For manual transmission only, install the shift lever. Refer to CONTROL LEVER &/OR BOOT REPLACEMENT in MANUAL TRANSMISSION - NV 1500 article.

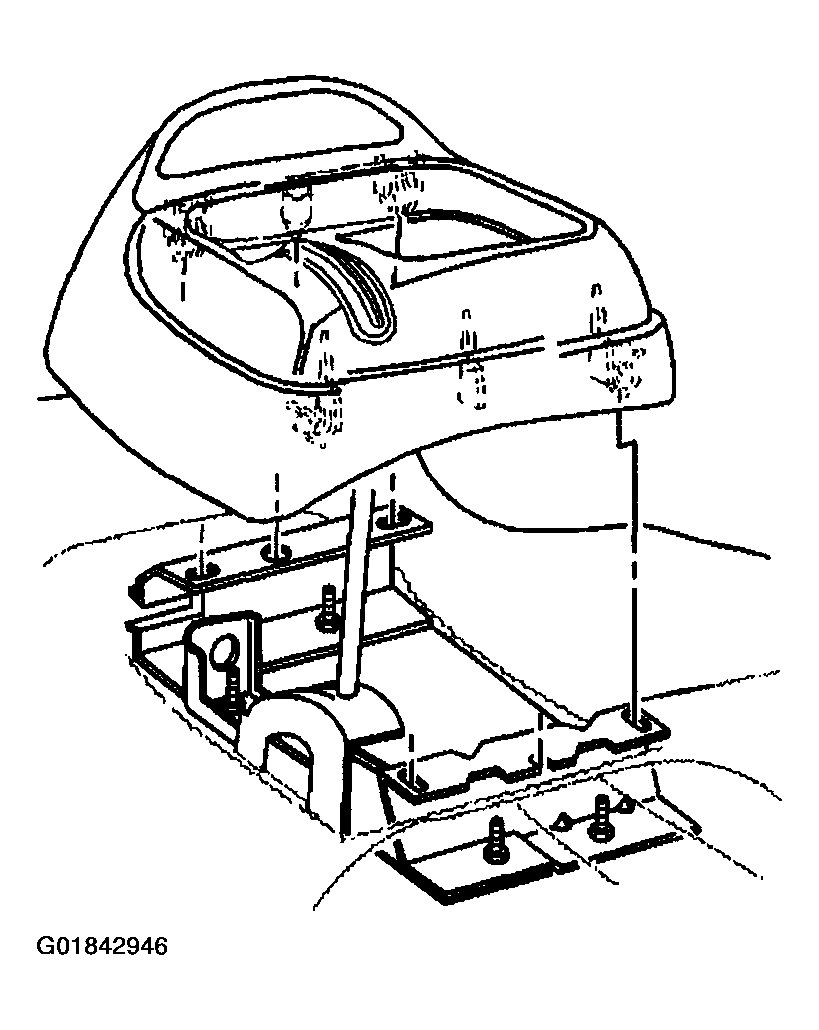

    Fig 1: Identifying Front Floor Console Components - (Non-Full Length)
    G01842946Courtesy of GENERAL MOTORS CORP.
