Removal Procedure

  1. Remove the screws that retain the instrument panel sound insulator to the following components:
    • The instrument panel.
    • The cowl.
  2. Remove the instrument panel sound insulator from the vehicle.

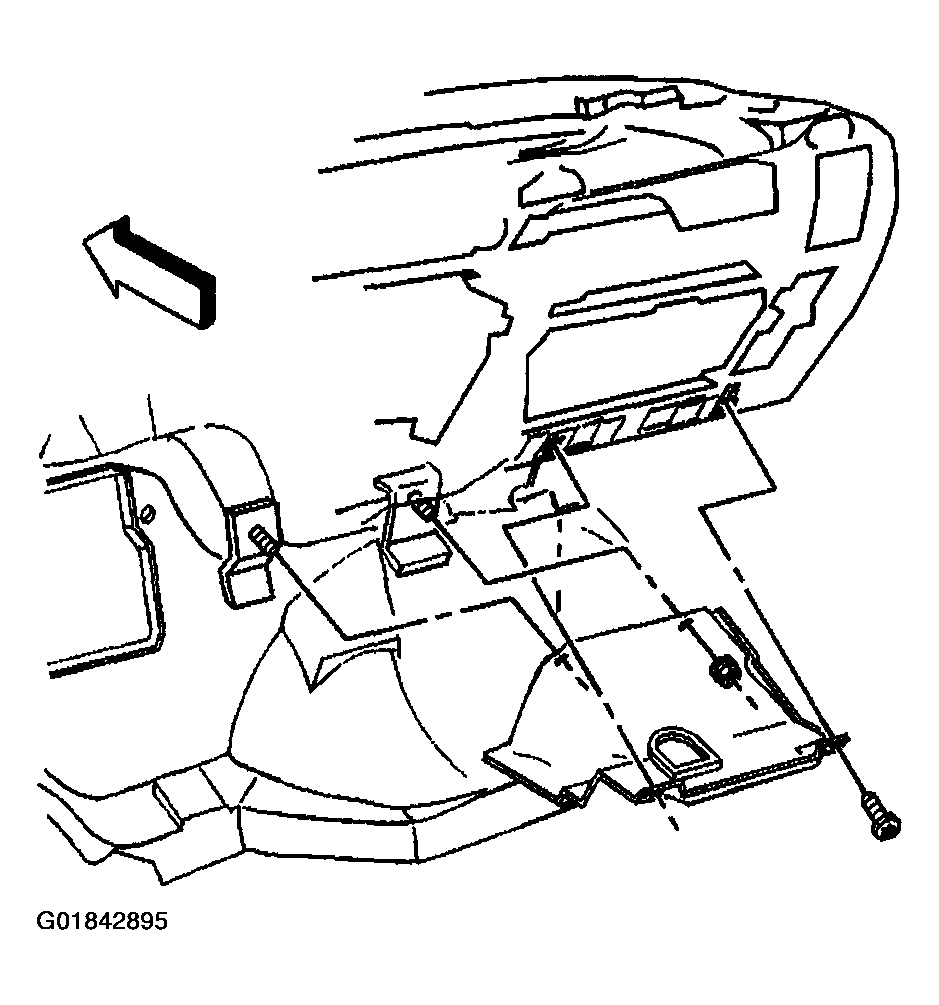

    Fig 1: Locating Right Closeout/Instrument Panel Sound Insulator
    G01842895Courtesy of GENERAL MOTORS CORP.
