Installation Procedure

  1. Install the instrument panel sound insulator to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screws that retain the instrument panel sound insulator to the following components:
    • The instrument panel.
    • The cowl.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

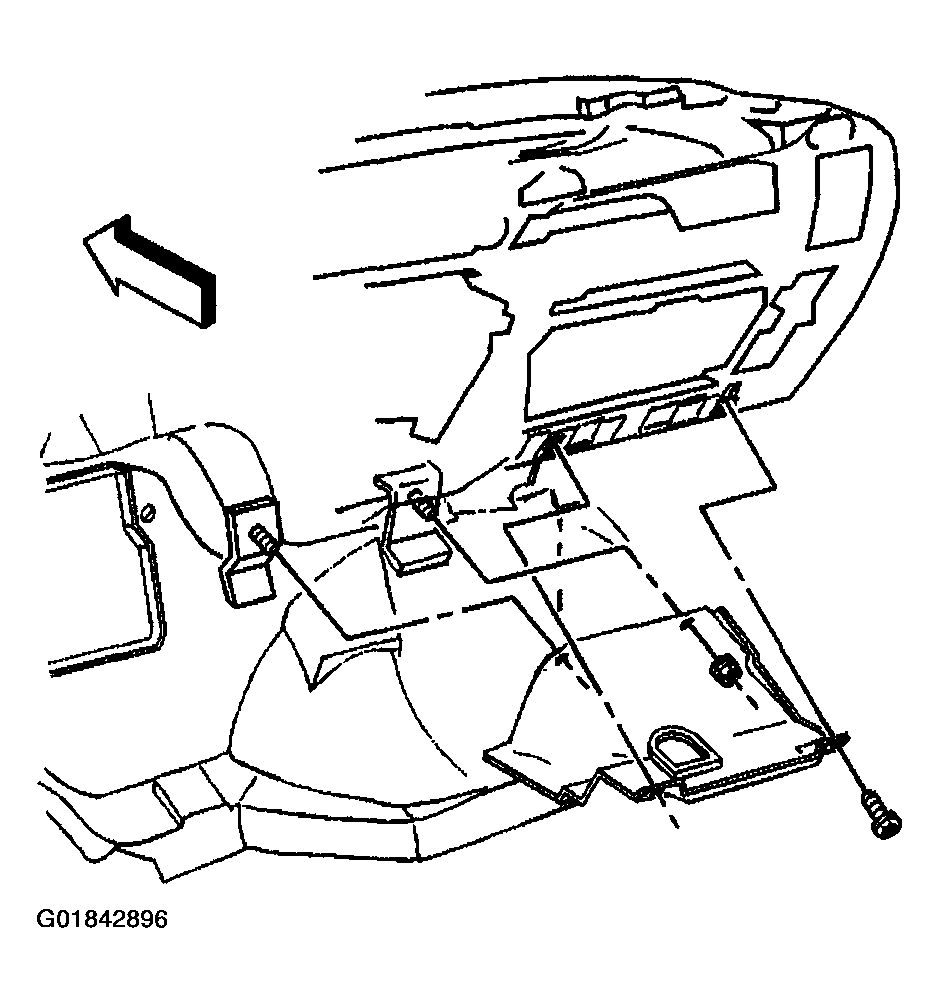

    Fig 1: Locating Right Closeout/Instrument Panel Sound Insulator
    G01842896Courtesy of GENERAL MOTORS CORP.
