Removal Procedure

  1. Remove the screws that retain the data link connector (DLC) to the instrument panel sound insulator.

    Feed DLC lines through the hole in the sound insulator.

  2. Remove the screws that retain the instrument panel sound insulator to the knee bolster and the cowl panel.
  3. Disconnect the electrical connectors from the remote control door lock receiver module.
  4. Remove and retain the remote control door lock receiver module from the instrument panel sound insulator (if equipped).

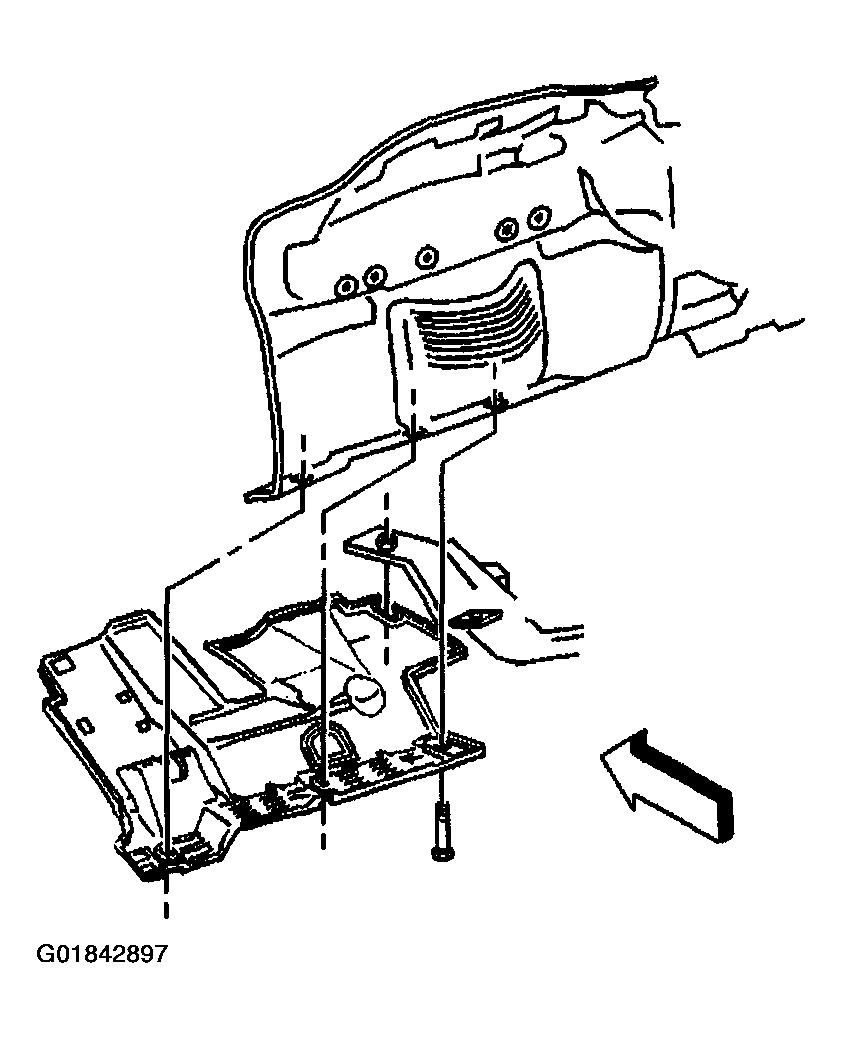

    Fig 1: Locating Left Closeout/Instrument Panel Sound Insulator
    G01842897Courtesy of GENERAL MOTORS CORP.
