Installation Procedure

  1. Install the remote control door lock receiver module to the instrument panel sound insulator.
  2. Connect the electrical connector to the remote door lock receiver module.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screw that retains the instrument panel sound insulator to the cowl panel.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  4. Install the screws that retain the instrument panel sound insulator to the knee bolster.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  5. Feed DLC through the hole in the instrument panel sound insulator.
  6. Install the screws that retain DLC to the instrument panel sound insulator.

    Tighten

    Tighten the screws to 2.4 N.m (21 lb in).

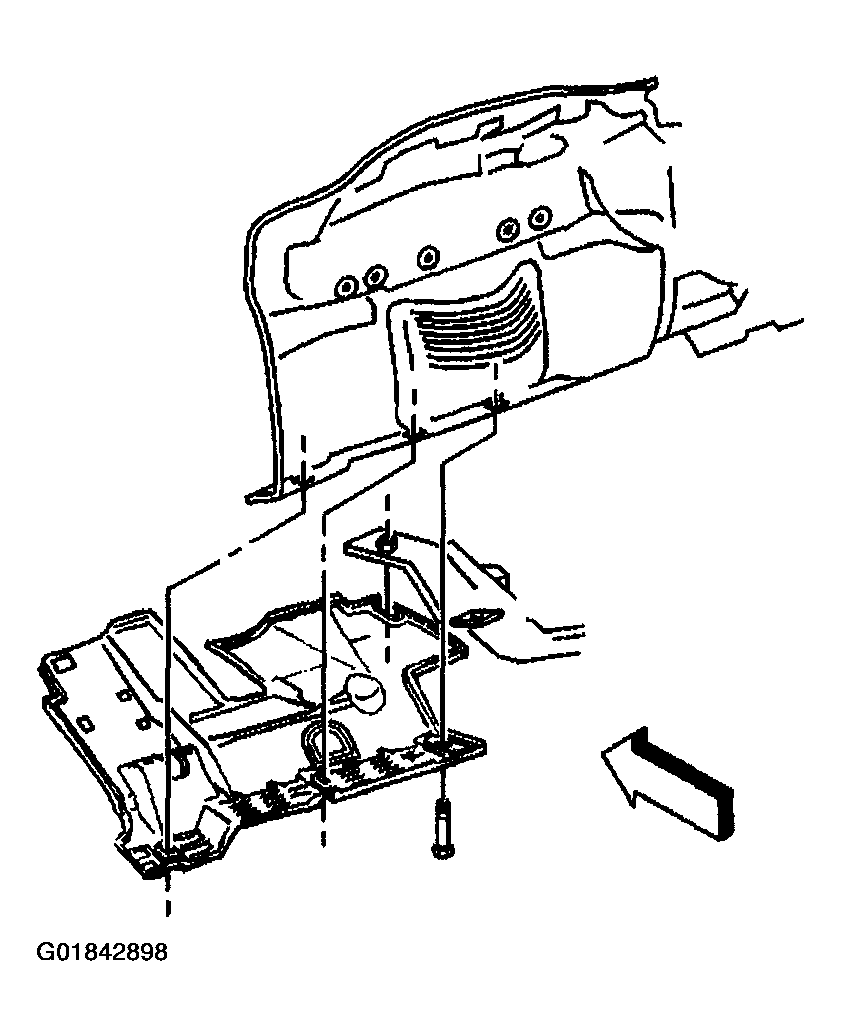

    Fig 1: Locating Left Closeout/Instrument Panel Sound Insulator
    G01842898Courtesy of GENERAL MOTORS CORP.
