Removal Procedure

  1. Remove the center console from the vehicle. Refer to CONSOLE REPLACEMENT - FRONT FLOOR - FULL LENGTH (AUTO TRANS)  or CONSOLE REPLACEMENT - FRONT FLOOR (NON-FULL LENGTH)  or CONSOLE REPLACEMENT - FRONT FLOOR - FULL LENGTH (MANUAL TRANS) .
  2. Remove the screws that retain the instrument panel sound insulator to the following components:
    • The knee bolster
    • The instrument panel
    • The heater assembly
    • The floor duct
  3. Remove the instrument panel sound insulator from the vehicle.
  4. Disconnect the electrical connector from the accessory power outlet, if equipped.

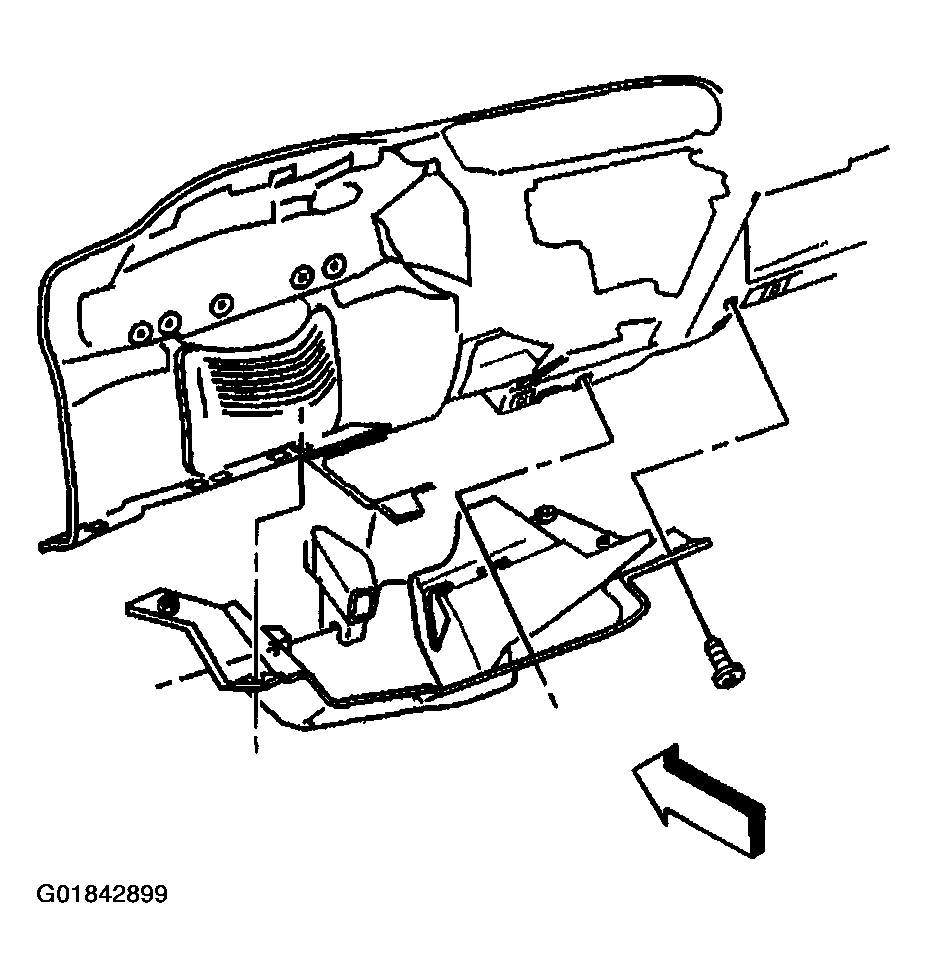

    Fig 1: Locating Lower Closeout/Insulator Instrument Panel Sound Insulator
    G01842899Courtesy of GENERAL MOTORS CORP.
