Installation Procedure

  1. Connect the electrical connector to the accessory power outlet, if equipped.
  2. Install the instrument panel sound insulator to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screws that retain the instrument panel sound insulator to the following components:
    • The knee bolster
    • The instrument panel
    • The floor duct

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  4. Install the screw that retains the instrument panel sound insulator to the heater assembly.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  5. Install the center console to the vehicle. Refer to CONSOLE REPLACEMENT - FRONT FLOOR - FULL LENGTH (AUTO TRANS)  or CONSOLE REPLACEMENT - FRONT FLOOR (NON-FULL LENGTH)  or CONSOLE REPLACEMENT - FRONT FLOOR - FULL LENGTH (MANUAL TRANS) .

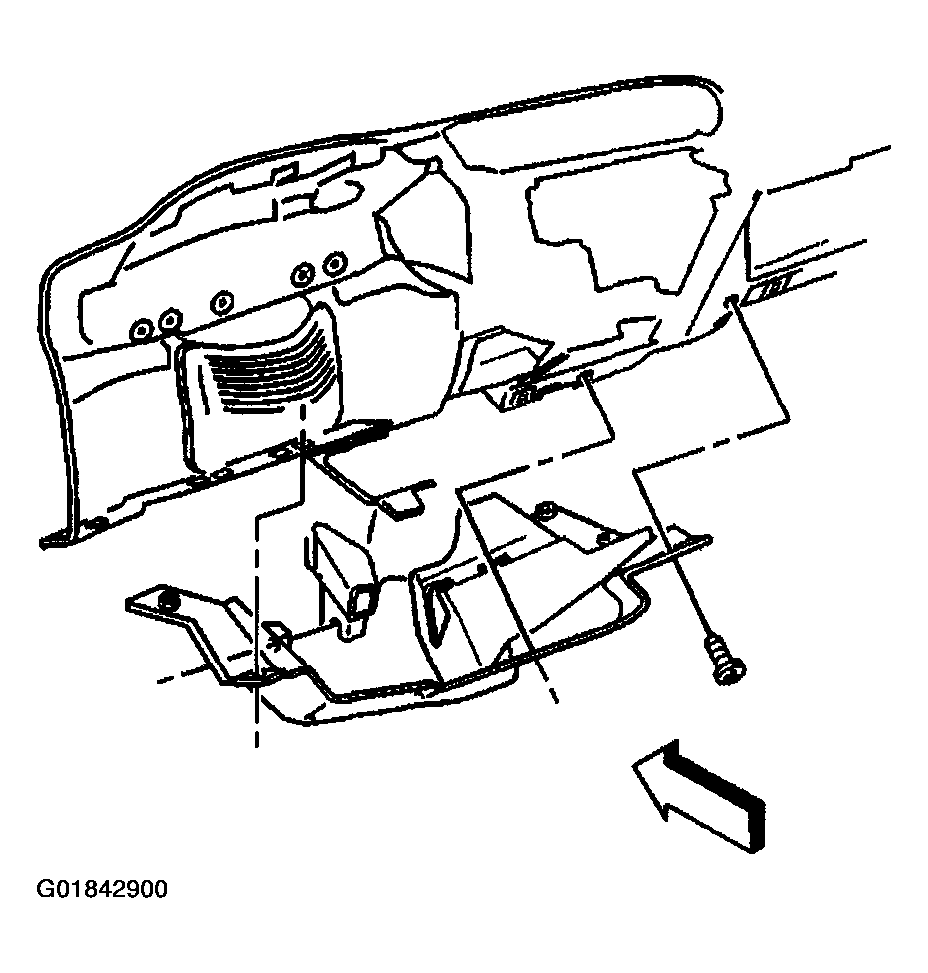

    Fig 1: Locating Lower Closeout/Insulator Instrument Panel Sound Insulator
    G01842900Courtesy of GENERAL MOTORS CORP.
