Installation Procedure
- Install the brake pedal to the steering column support. Refer to BRAKE PEDAL
in DISC & DRUM article.NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.

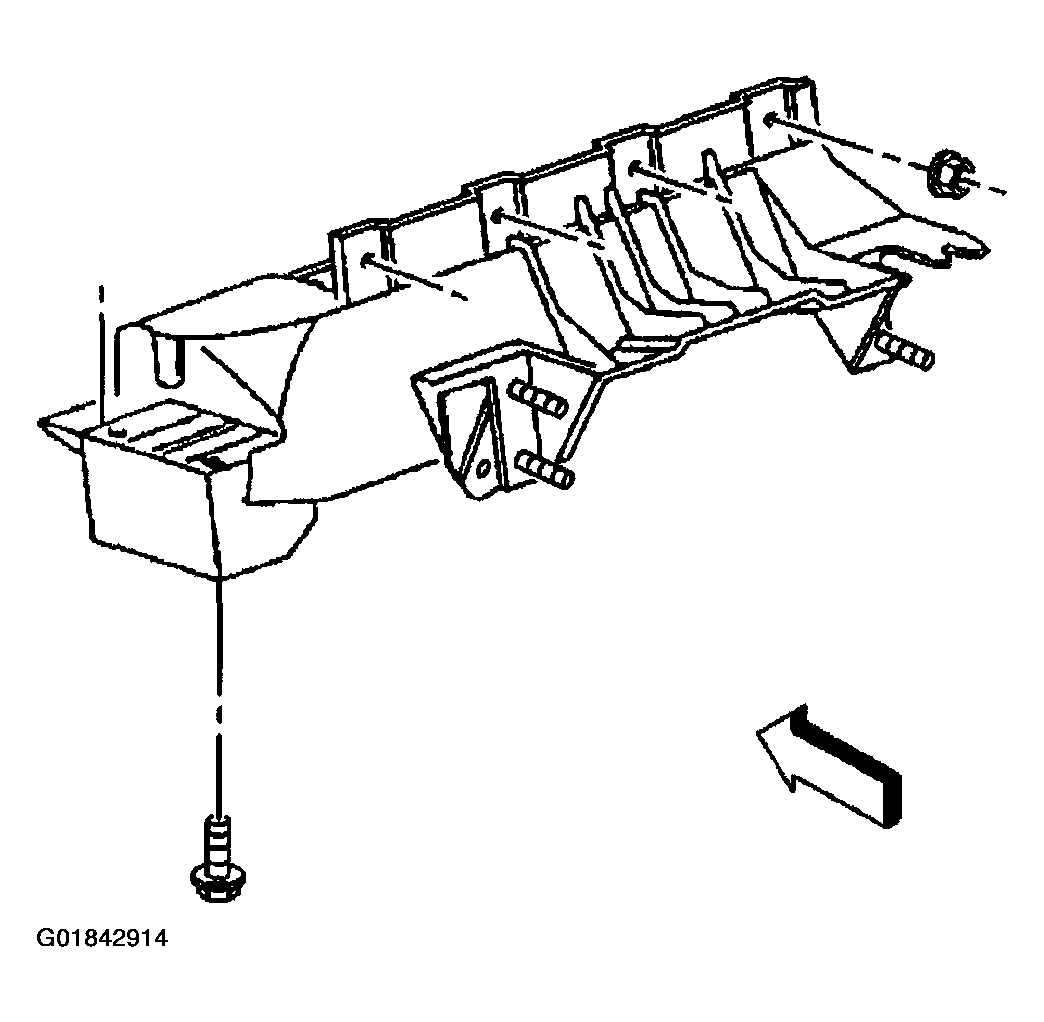

- Install the steering column support bracket fasteners.
Tighten
- Tighten the nuts to 25 N.m (18 lb ft).
- Tighten the bolts to 25 N.m (18 lb ft).
- Install the brake switch. Refer to STOP LIGHT SWITCH in DISC & DRUM brakes article.
- Install the brake booster pushrod to the brake pedal. Refer to VACUUM BRAKE BOOSTER in DISC & DRUM brakes article.
- Install the clutch master cylinder pushrod to the clutch pedal, if equipped. Refer to CLUTCH MASTER CYLINDER & RESERVOIR in CLUTCHES article.
- Install the instrument panel. Refer to IP CARRIER REPLACEMENT .
