Installation Procedure

  1. Install the ashtray housing to the instrument panel.
  2. Position the ashtray housing in order to connect the electrical connectors.
  3. Connect the electrical connectors.
  4. Install the electrical connector retaining clip to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  5. Install the screws that retain the ash tray housing to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

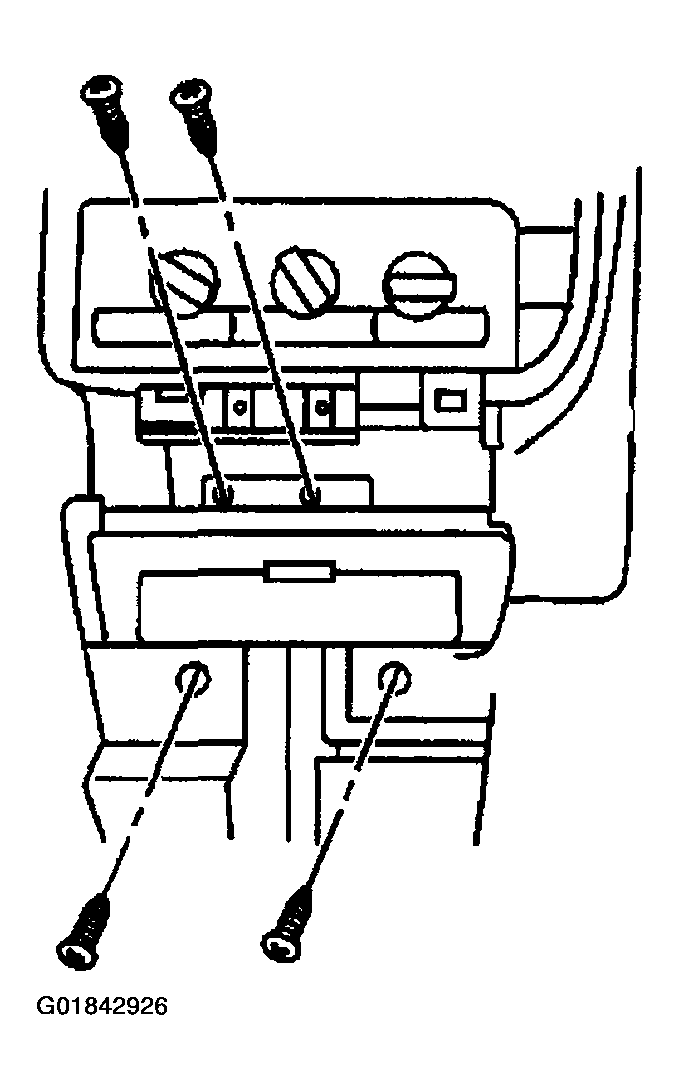

    Fig 1: Locating Ashtray Housing Retaining Screws
    G01842926Courtesy of GENERAL MOTORS CORP.
  6. Install the instrument panel trimplate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
