Removal Procedure

  1. Remove the radiator grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM.
  2. Lift the temperature sensor upward in order to remove the temperature sensor.
  3. Disconnect the electrical connector.

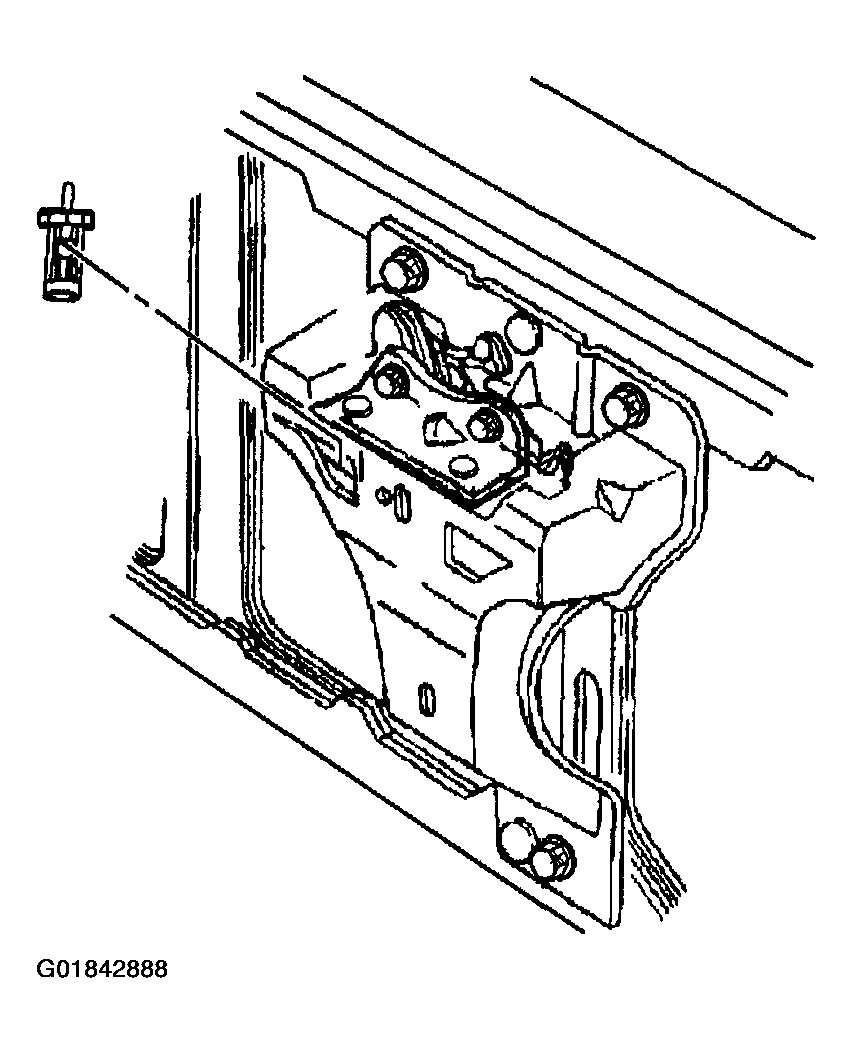

    Fig 1: Locating Temperature Sensor
    G01842888Courtesy of GENERAL MOTORS CORP.
