Tachometer Inaccurate Or Inoperative

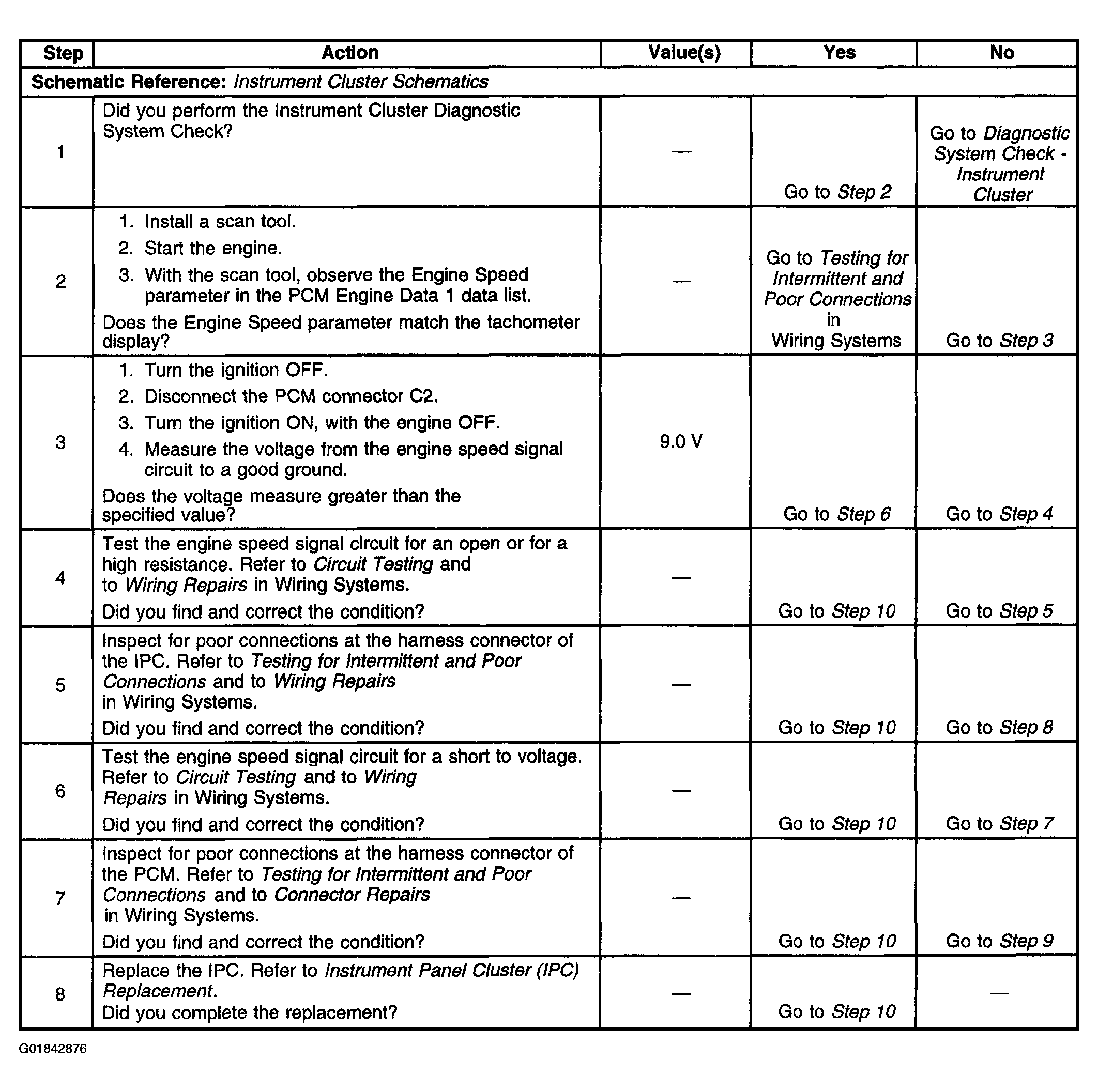

Fig 1: Tachometer Inaccurate Or Inoperative (Steps 1-8)
G01842876Courtesy of GENERAL MOTORS CORP.

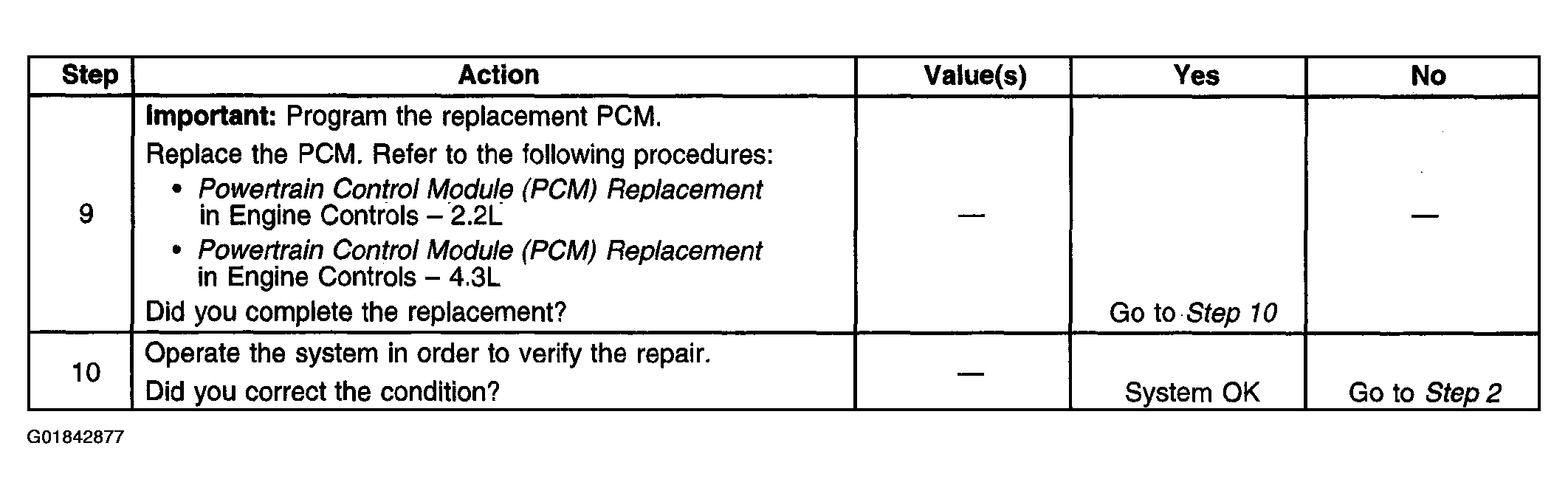

Fig 2: Tachometer Inaccurate Or Inoperative (Steps 9-10)
G01842877Courtesy of GENERAL MOTORS CORP.
