Speedometer &/Or Odometer Inaccurate Or Inoperative

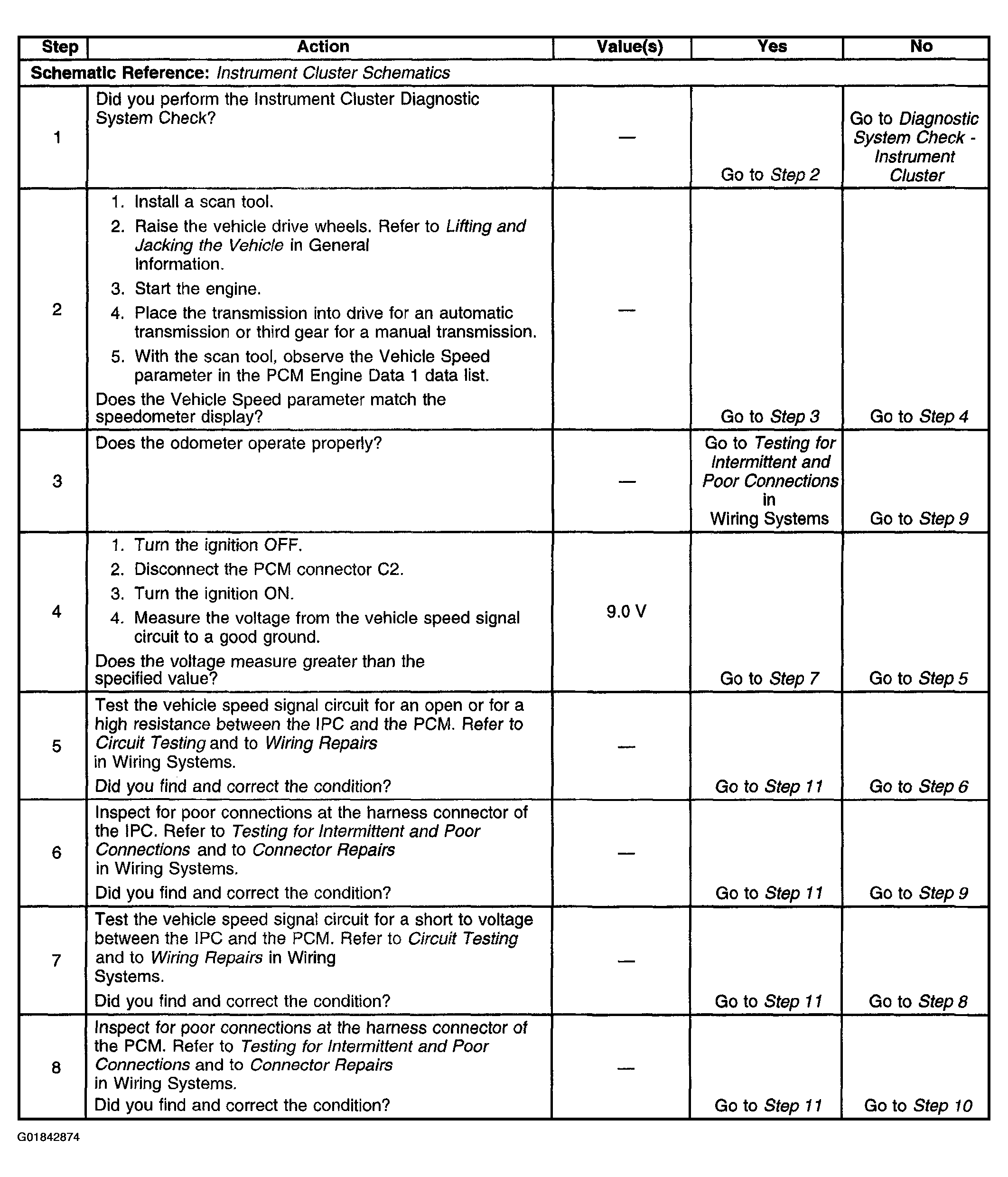

Fig 1: Speedometer &/Or Odometer Inaccurate Or Inoperative (Steps 1-8)
G01842874Courtesy of GENERAL MOTORS CORP.

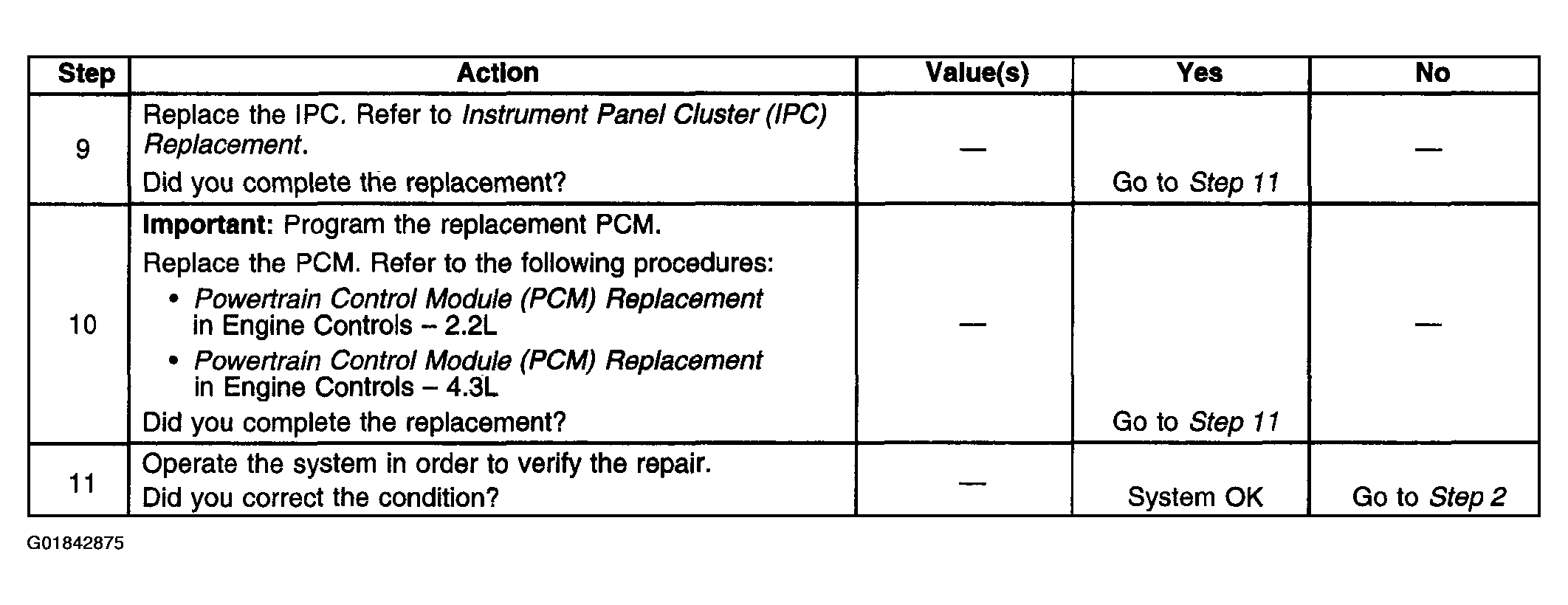

Fig 2: Speedometer &/Or Odometer Inaccurate Or Inoperative (Steps 9-11)
G01842875Courtesy of GENERAL MOTORS CORP.
