Instrument Panel Cluster (IPC)

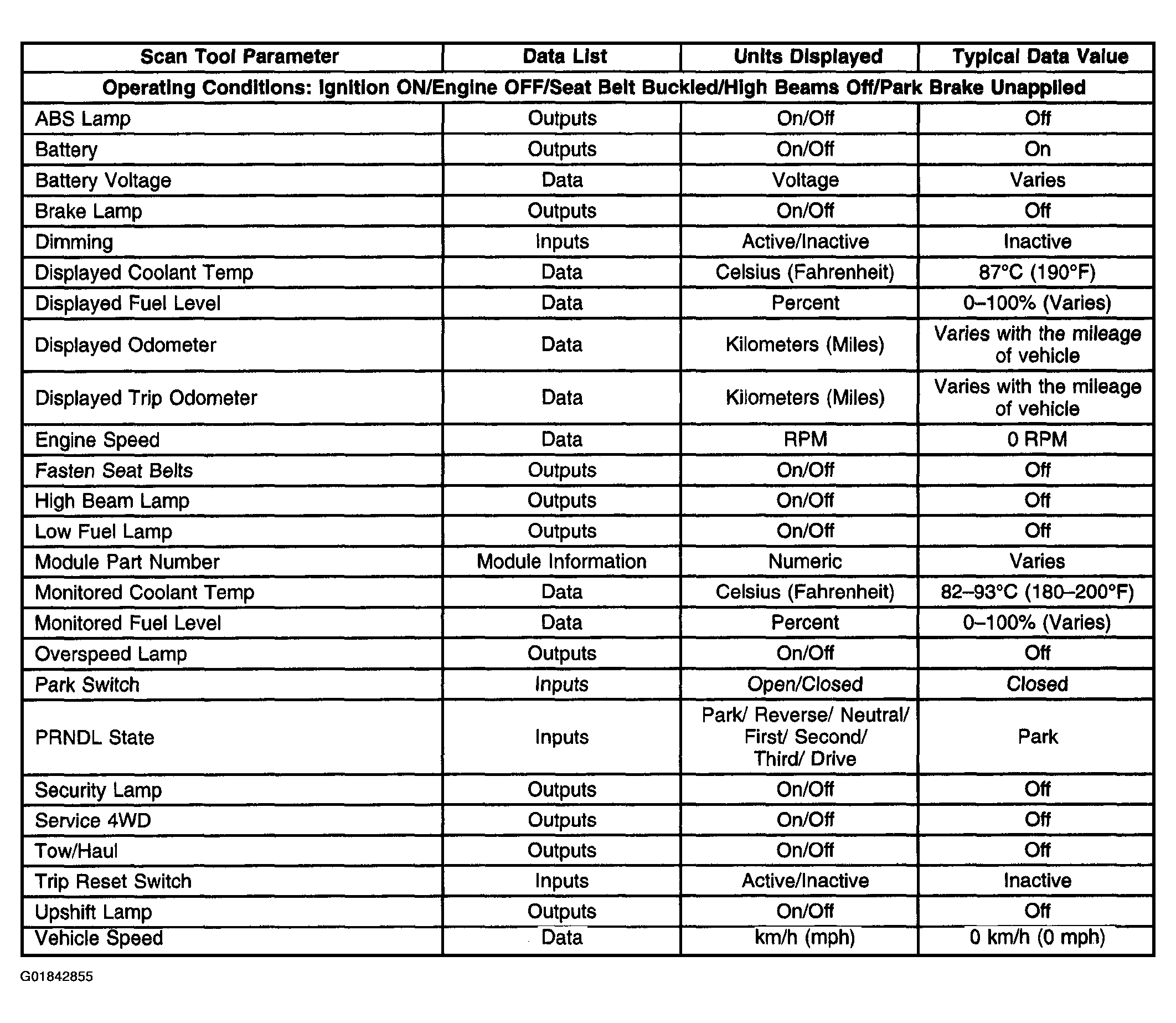

Fig 1: Instrument Panel Cluster Data Values (IPC)
G01842855Courtesy of GENERAL MOTORS CORP.
