Odometer Trip/Reset Switch Inoperative

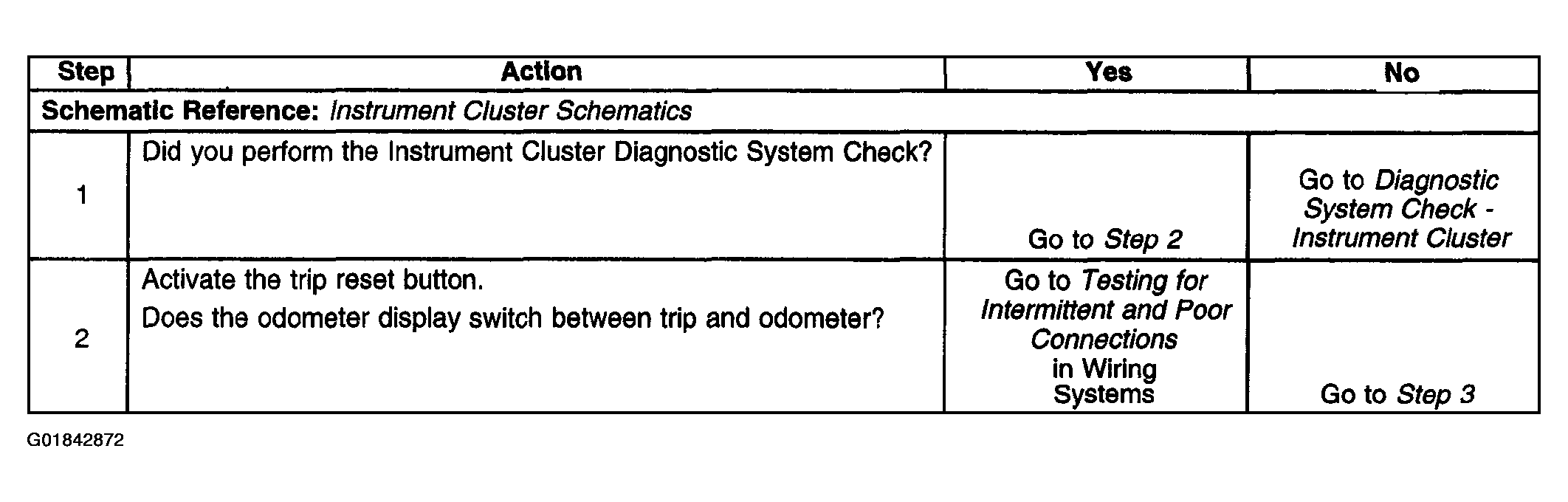

Fig 1: Odometer Trip/Reset Switch Inoperative (Steps 1-2)
G01842872Courtesy of GENERAL MOTORS CORP.

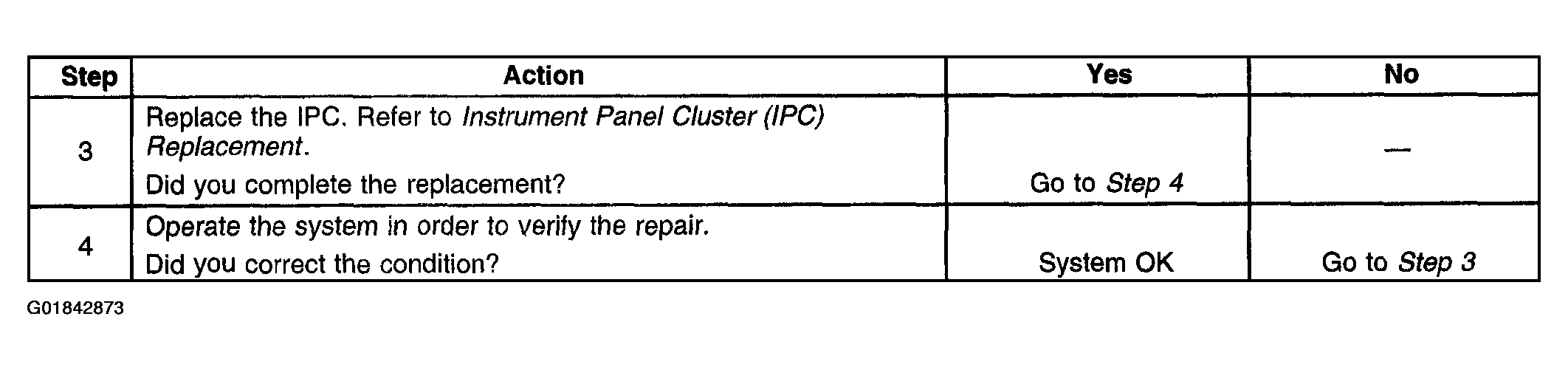

Fig 2: Odometer Trip/Reset Switch Inoperative (Steps 3-4)
G01842873Courtesy of GENERAL MOTORS CORP.
