Instrument Cluster Inoperative
Instrument Cluster Inoperative

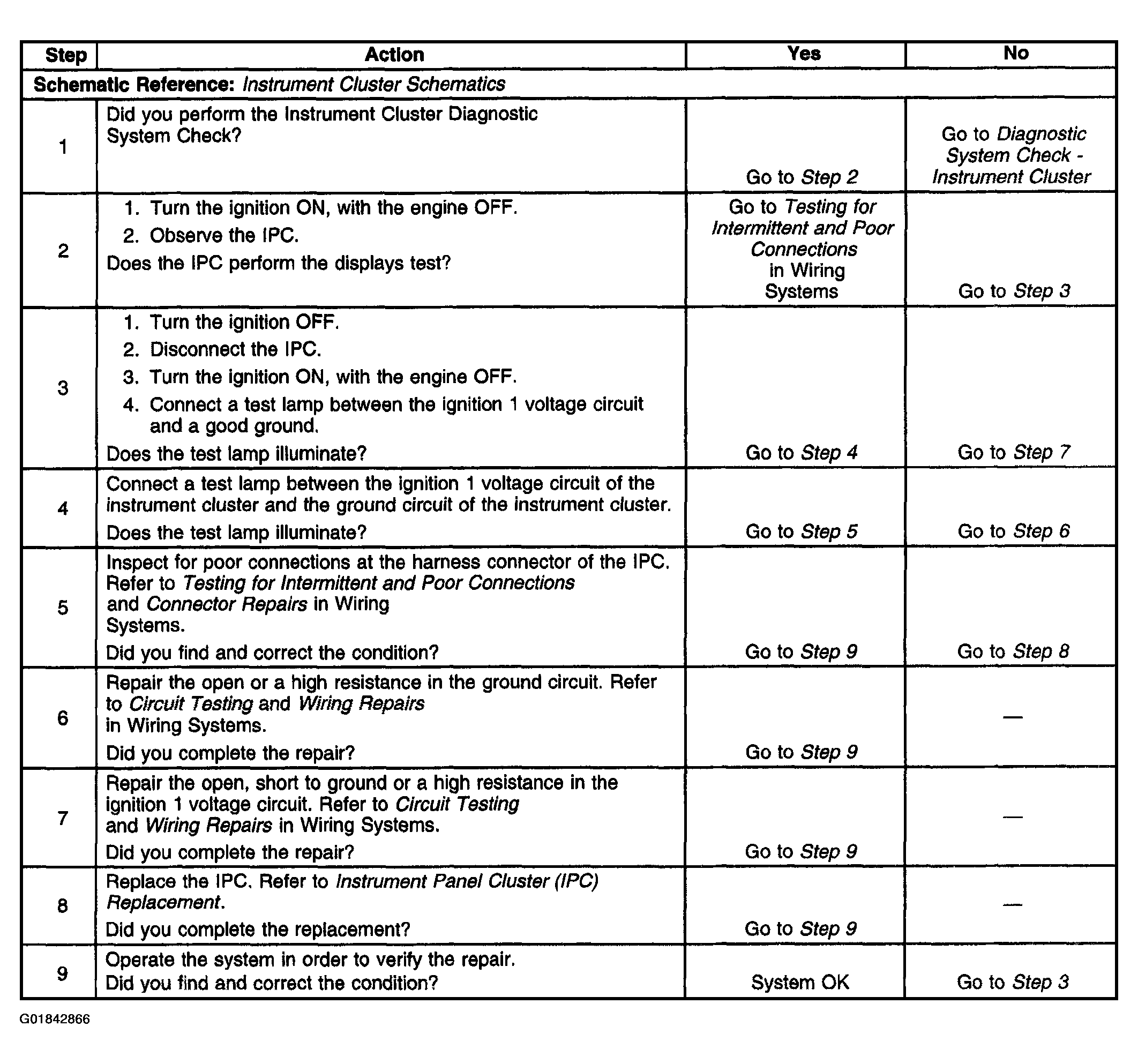

Fig 1: Instrument Cluster Inoperative (Steps 1-9)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
