Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Electrical >> Instrument Panel, Gauges & Console >> Diagnostic Information & Procedures >> Driver Information Center (DIC) Switch(Es) Inoperative

Driver Information Center (DIC) Switch(Es) Inoperative

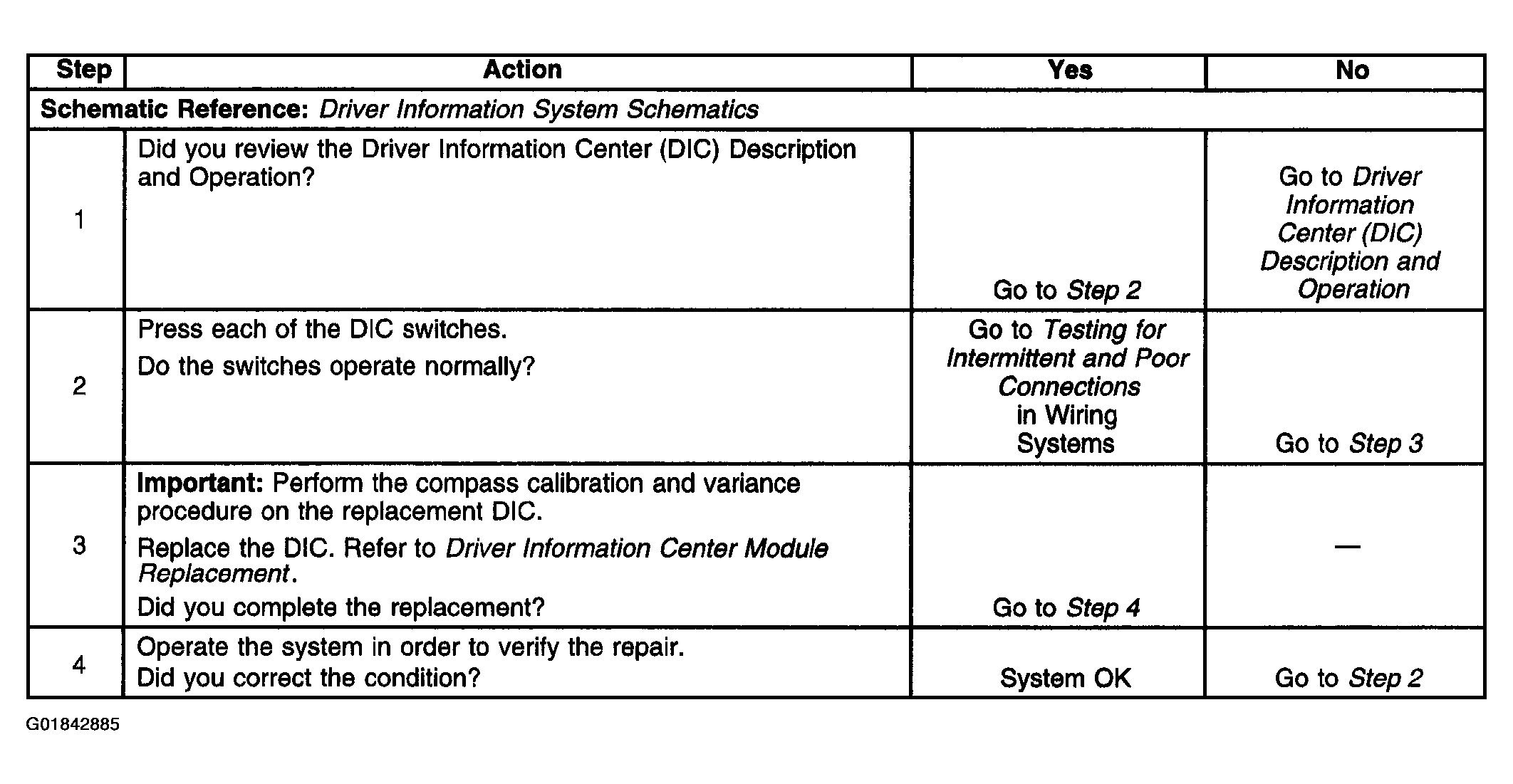

Fig 1: Driver Information Center (DIC) Switch(es) Inoperative (Steps 1-4)

G01842885

Courtesy of GENERAL MOTORS CORP.
