Driver Information Center (DIC) Compass Inaccurate Or C Displayed
Driver Information Center (DIC) Compass Inaccurate Or C Displayed

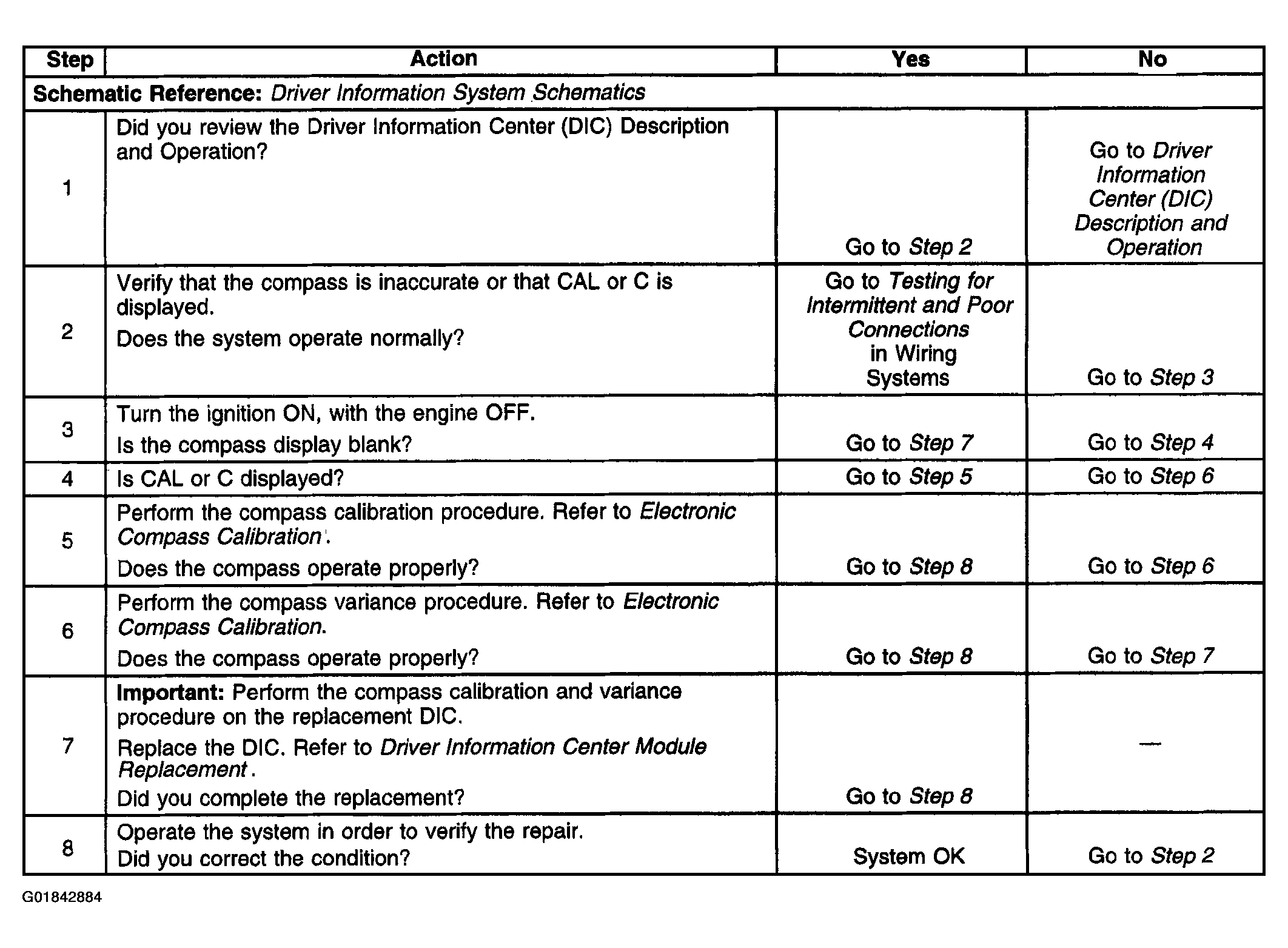

Fig 1: Driver Information Center (DIC) Compass Inaccurate Or C Displayed (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
