DTC P0654: State Of Driver Mismatch
>>
Conditions For Clearing the MIL/DTC
Conditions For Clearing the MIL/DTC
A current DTC clears when the diagnostic runs and does not fail.
A history DTC clears after 40 consecutive malfunction free warm-up cycles.
The PCM receives the clear code command from the scan tool.

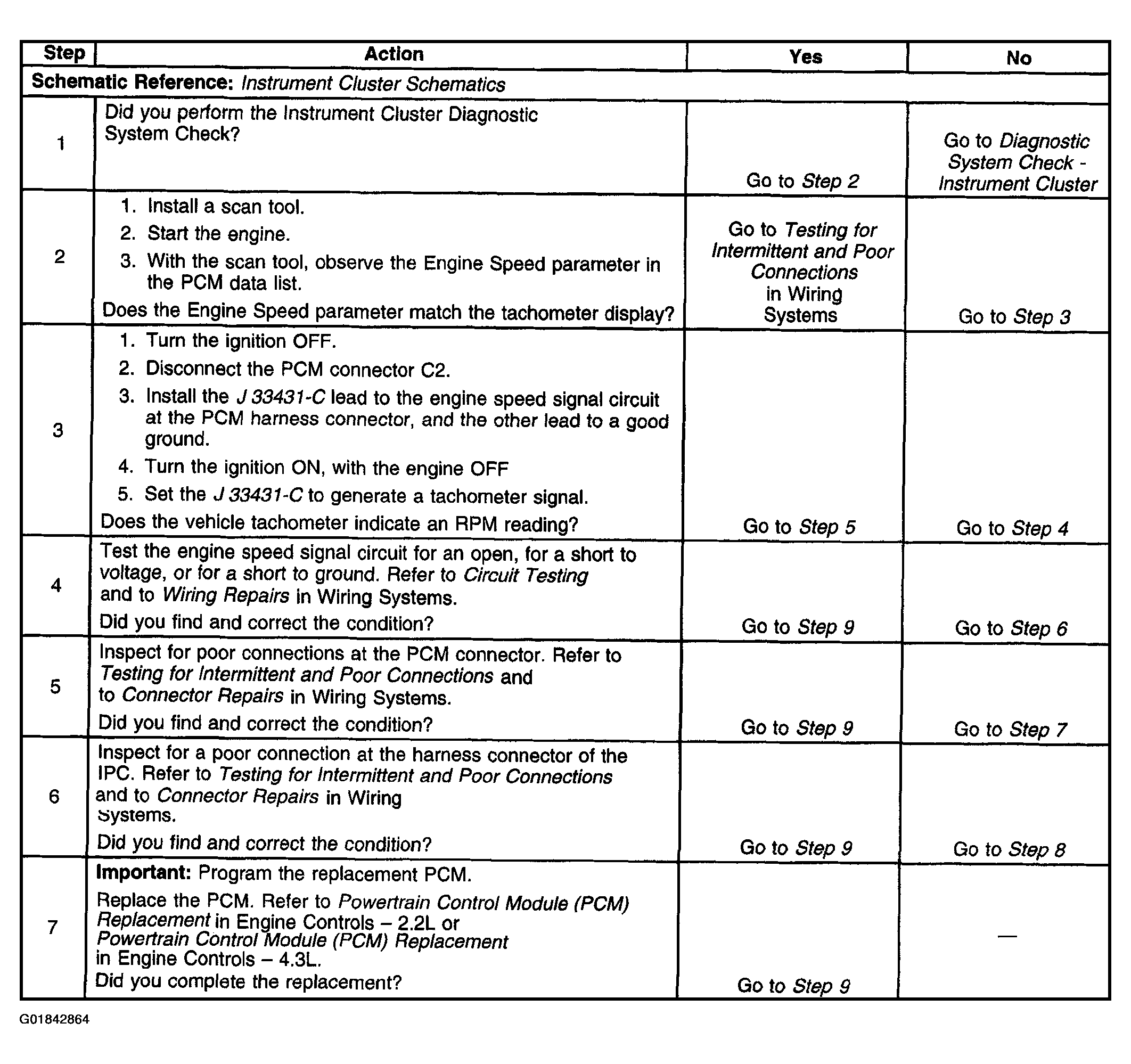

Fig 1: DTC P0654 Testing (Steps 1-7)
Courtesy of GENERAL MOTORS CORP.

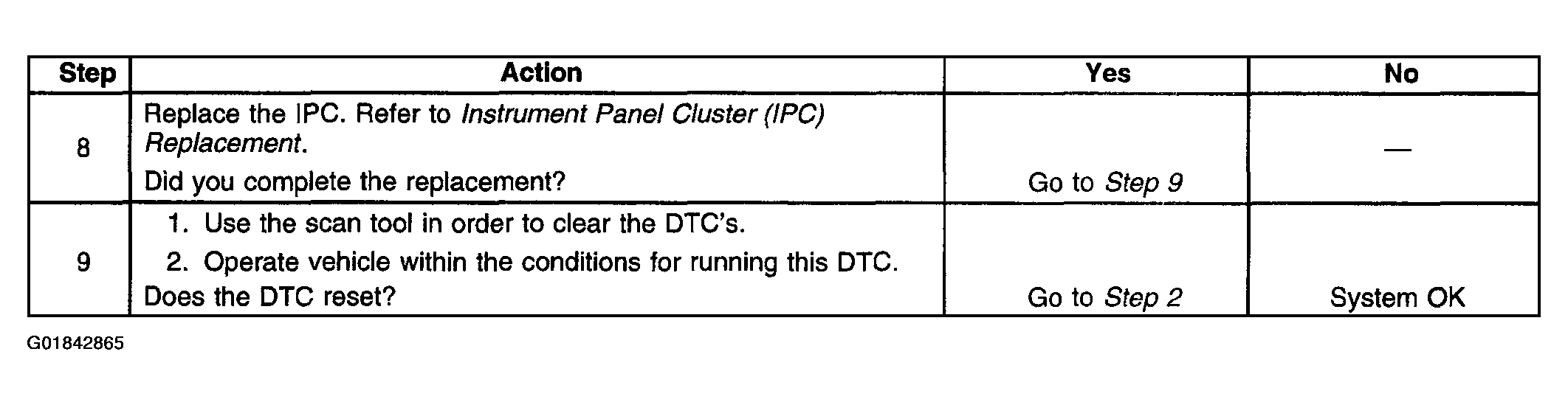

Fig 2: DTC P0654 Testing (Steps 8-9)
Courtesy of GENERAL MOTORS CORP.
