Test Description

The number below refers to the step number on the diagnostic table. See Fig 1.

1. 3

   Tests for the proper operation of the circuit in the high voltage range.

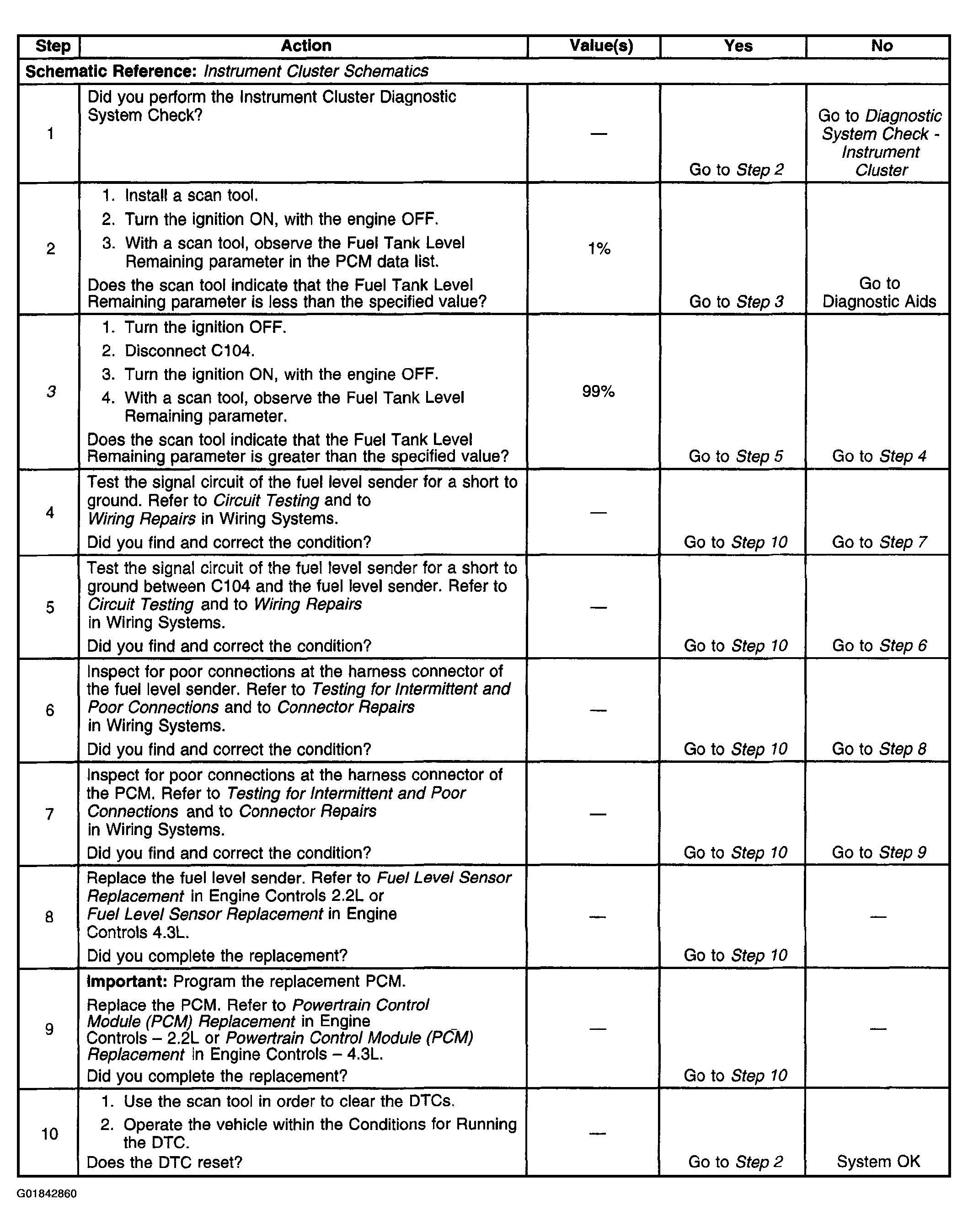

Fig 1: DTC P0462 Testing (Steps 1-10)

Courtesy of GENERAL MOTORS CORP.
