Instrument Panel, Gages, & Console Connector End Views

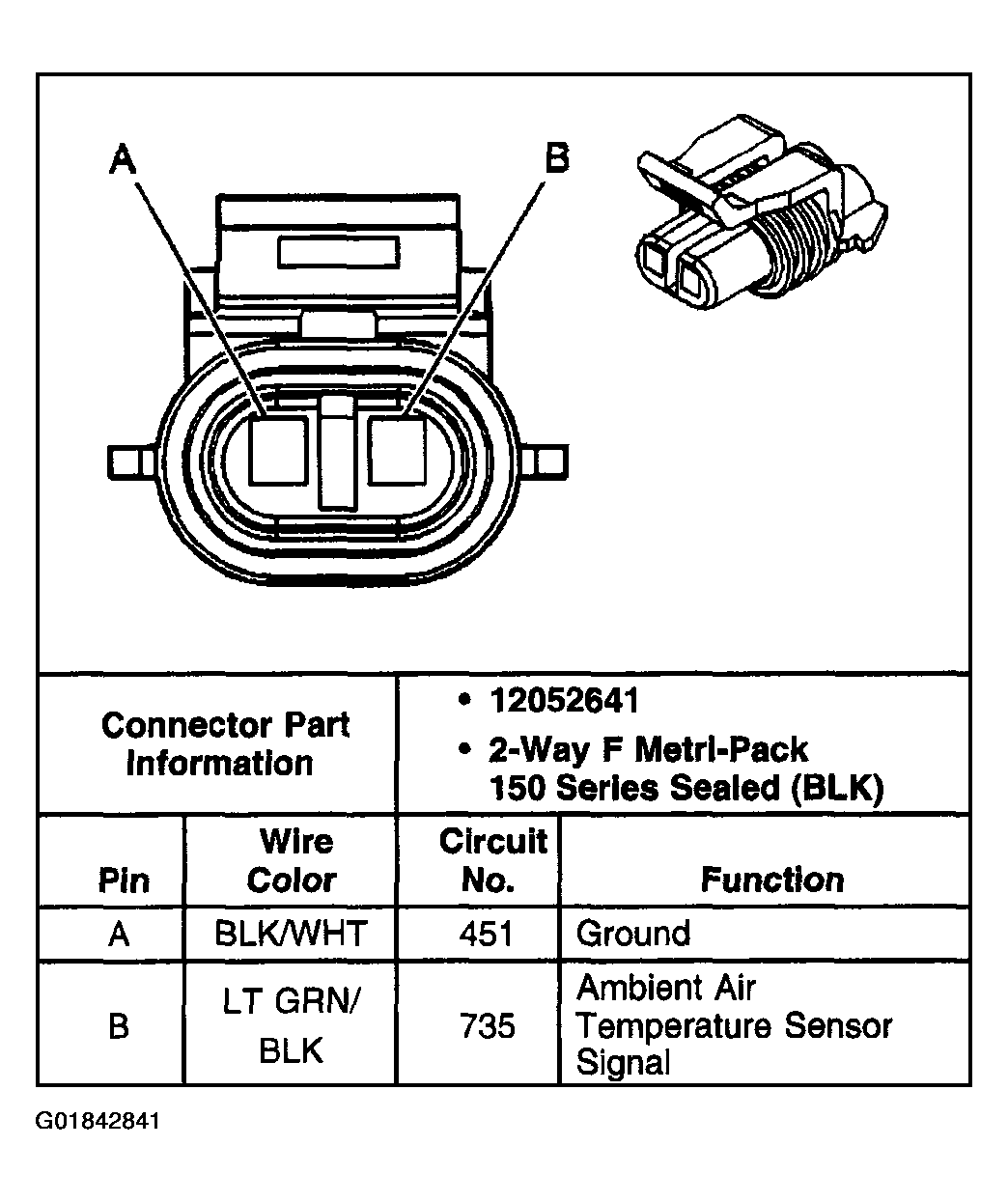

Fig 1: Air Temperature Sensor - Outside

Courtesy of GENERAL MOTORS CORP.

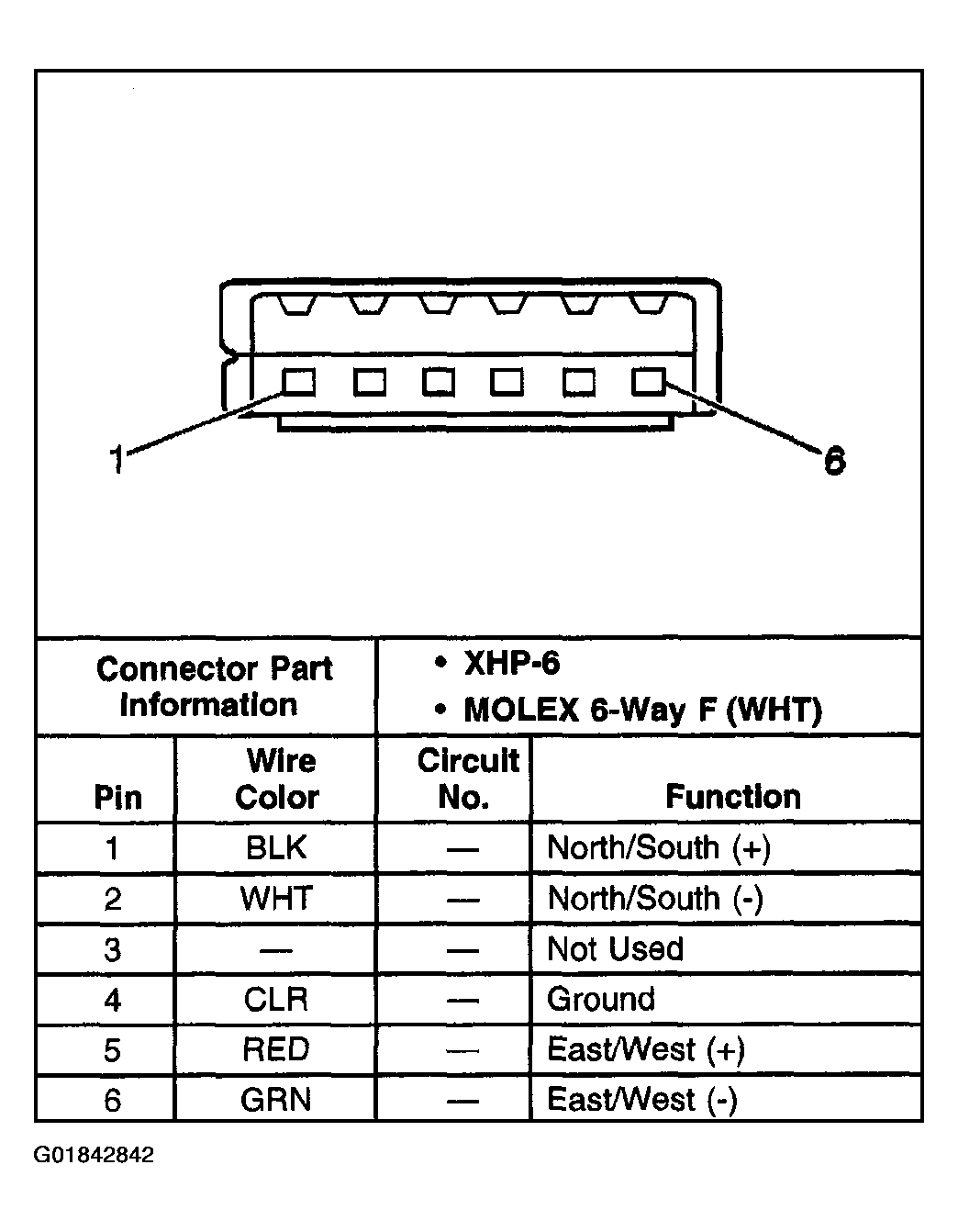

Fig 2: Compass Sensor

Courtesy of GENERAL MOTORS CORP.

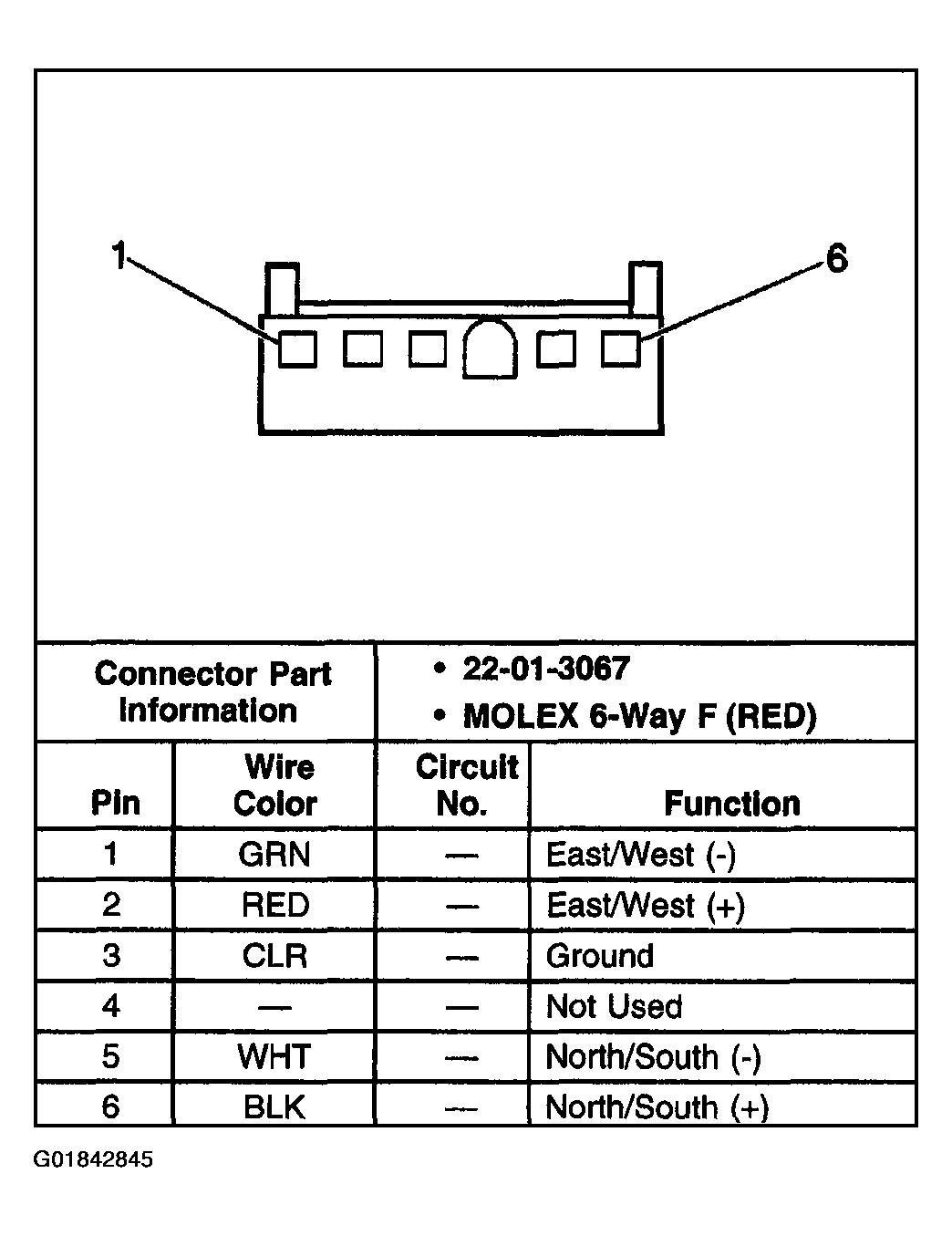

Fig 3: Driver Information Center (DIC) Connector C1, w/ Trip Computer

Courtesy of GENERAL MOTORS CORP.

Fig 4: Driver Information Center (DIC) Connector C1, w/o Trip Computer

Courtesy of GENERAL MOTORS CORP.

Fig 5: Driver Information Center (DIC) Connector C2, w/ Short Console

Courtesy of GENERAL MOTORS CORP.

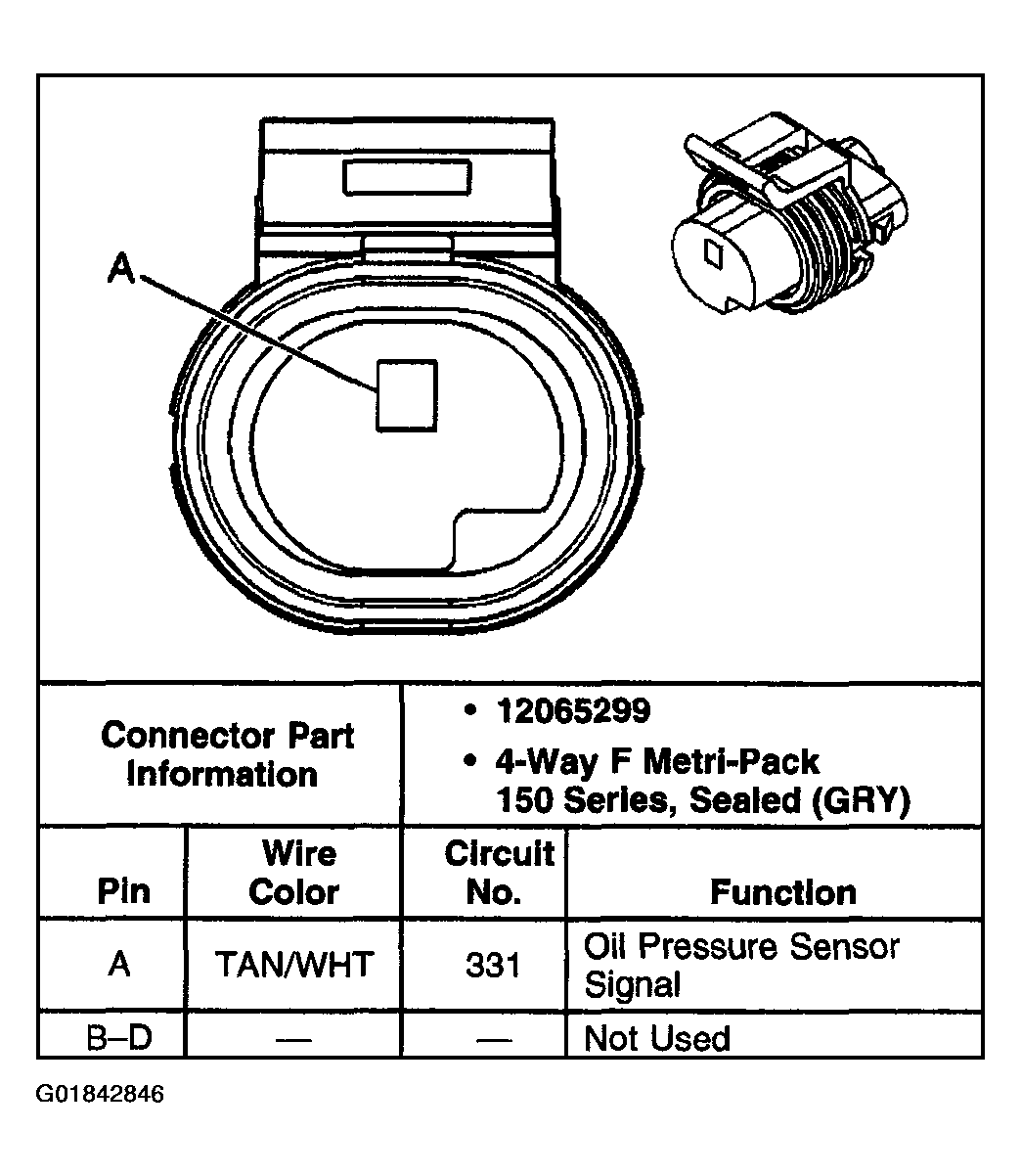

Fig 6: Engine Oil Pressure (EOP) Sensor

Courtesy of GENERAL MOTORS CORP.

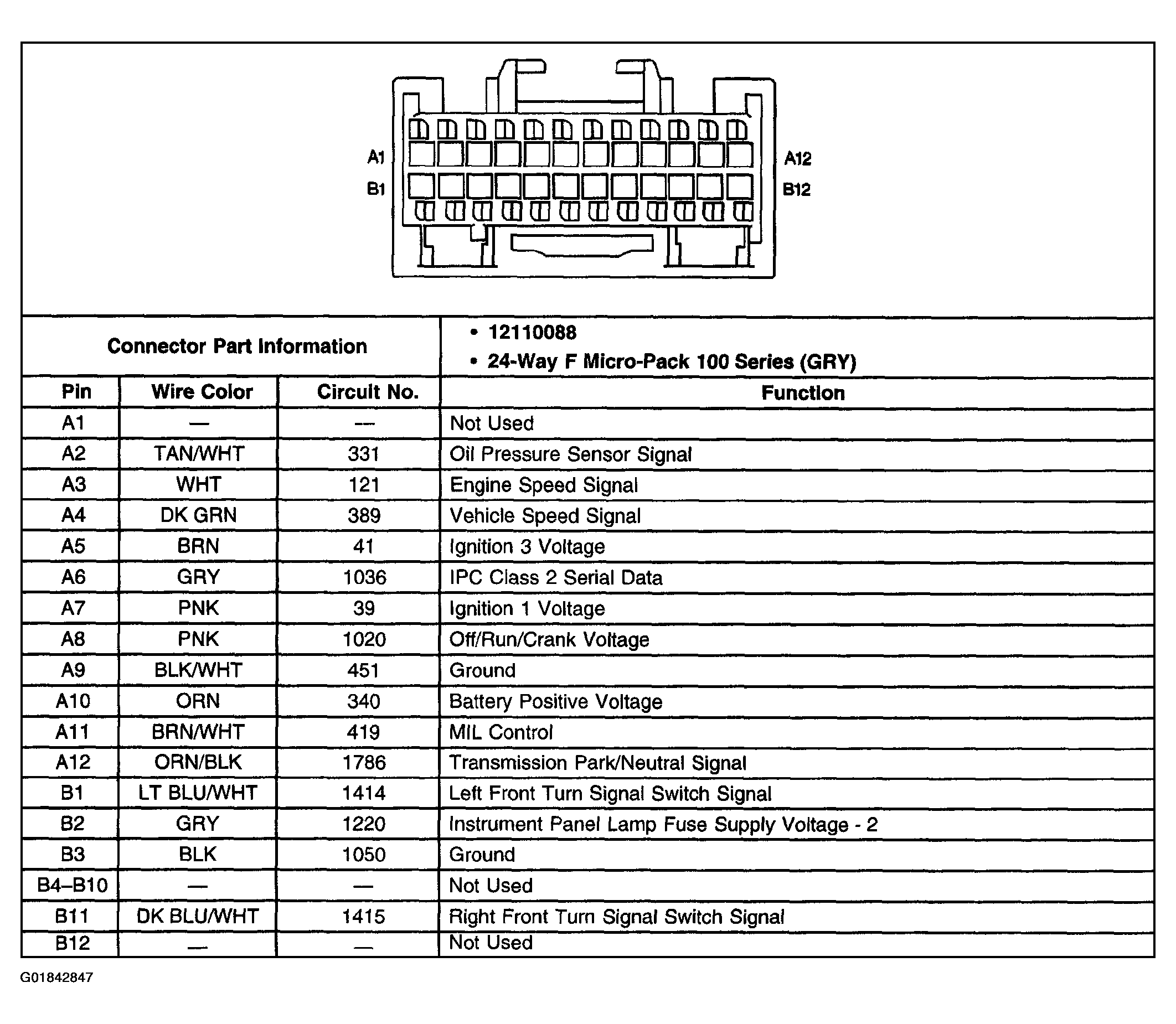

Fig 7: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.
