Instrument Panel, Gages, & Console Component Views

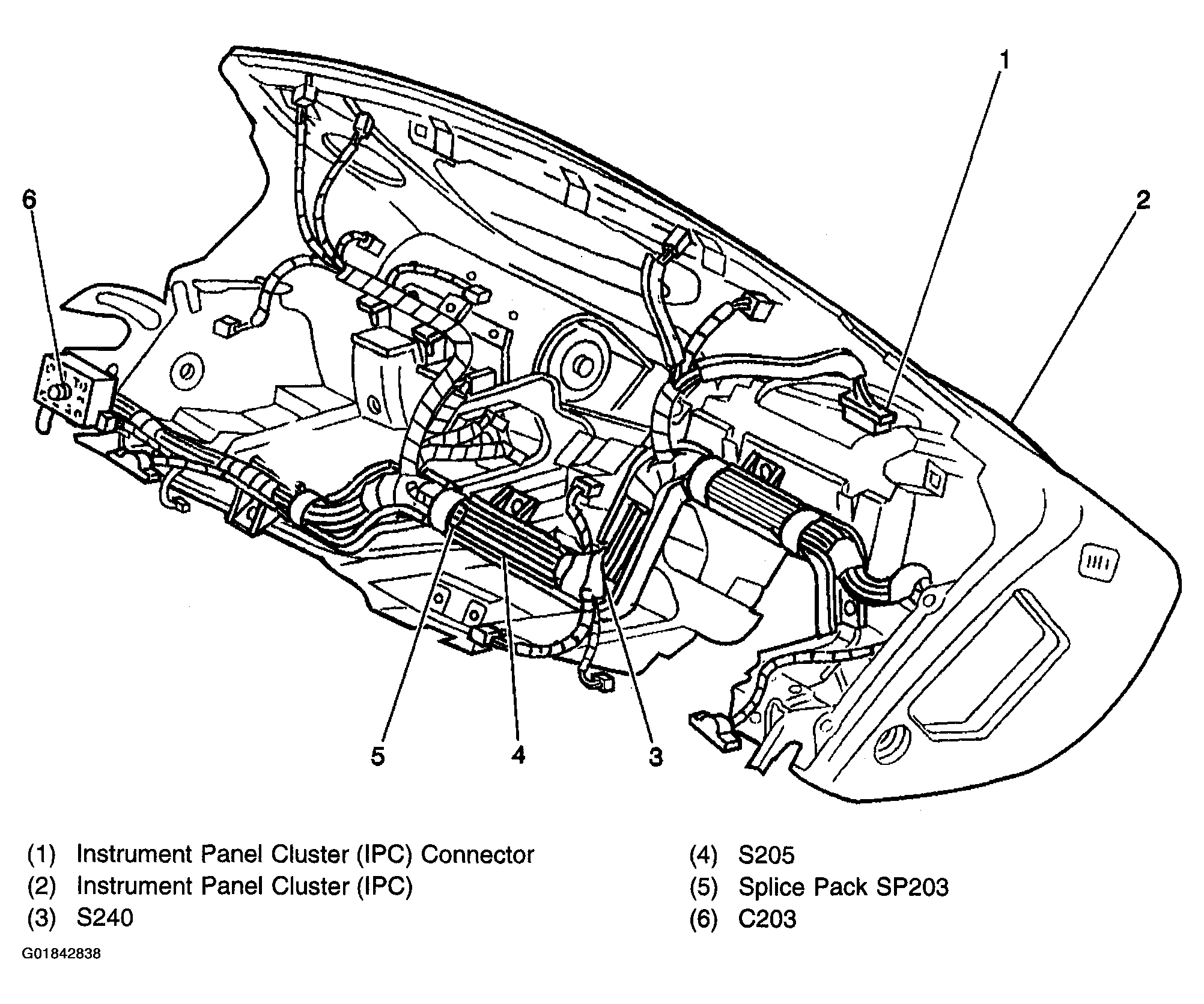

Fig 1: IP Wiring Harness Composite View
G01842838Courtesy of GENERAL MOTORS CORP.

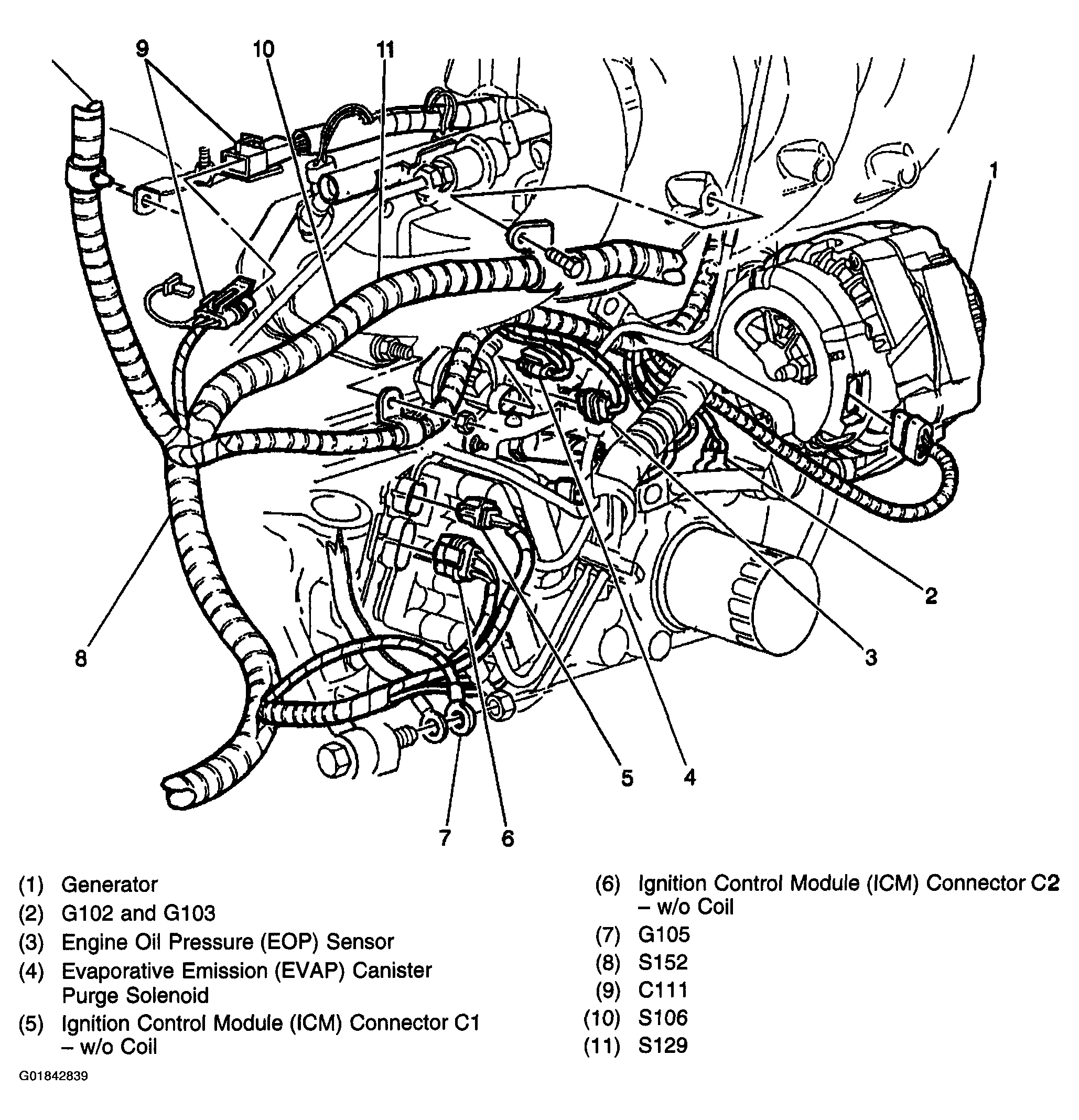

Fig 2: Engine, LR (2.2L)
G01842839Courtesy of GENERAL MOTORS CORP.

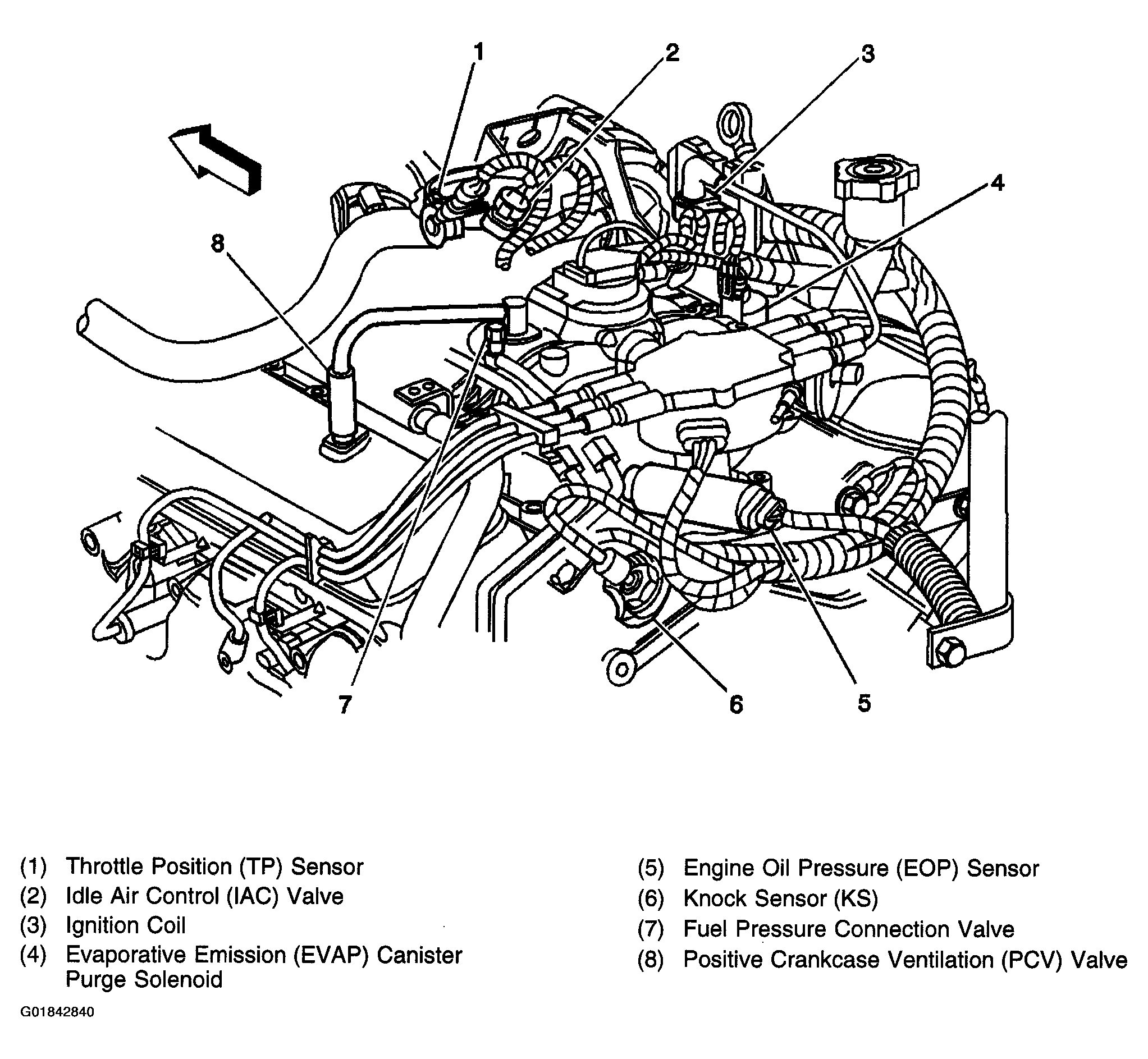

Fig 3: Engine Harness Rear (4.3L)
G01842840Courtesy of GENERAL MOTORS CORP.
