Removal Procedure

  1. Disconnect the electrical connector from the horn.

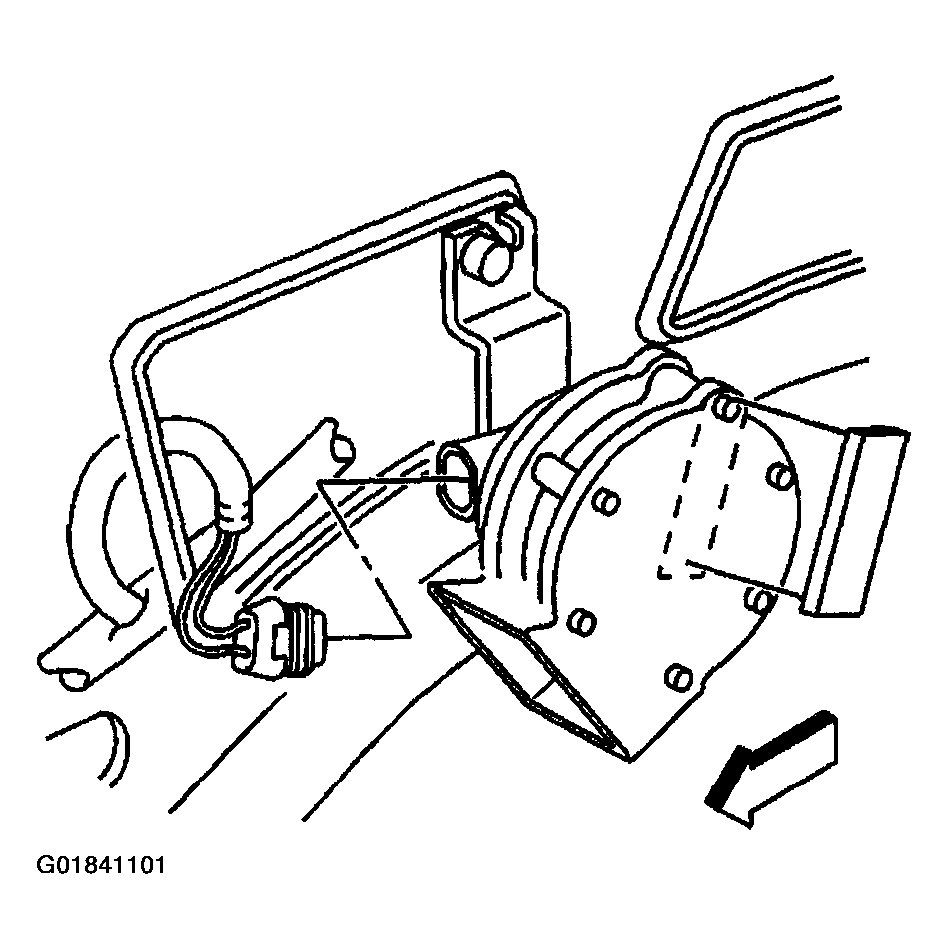

    Fig 1: Disconnecting Electrical Connector From Horn - Right
    G01841101Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt that retains the horn assembly to the fender.
  3. Remove the horn assembly from the fender.

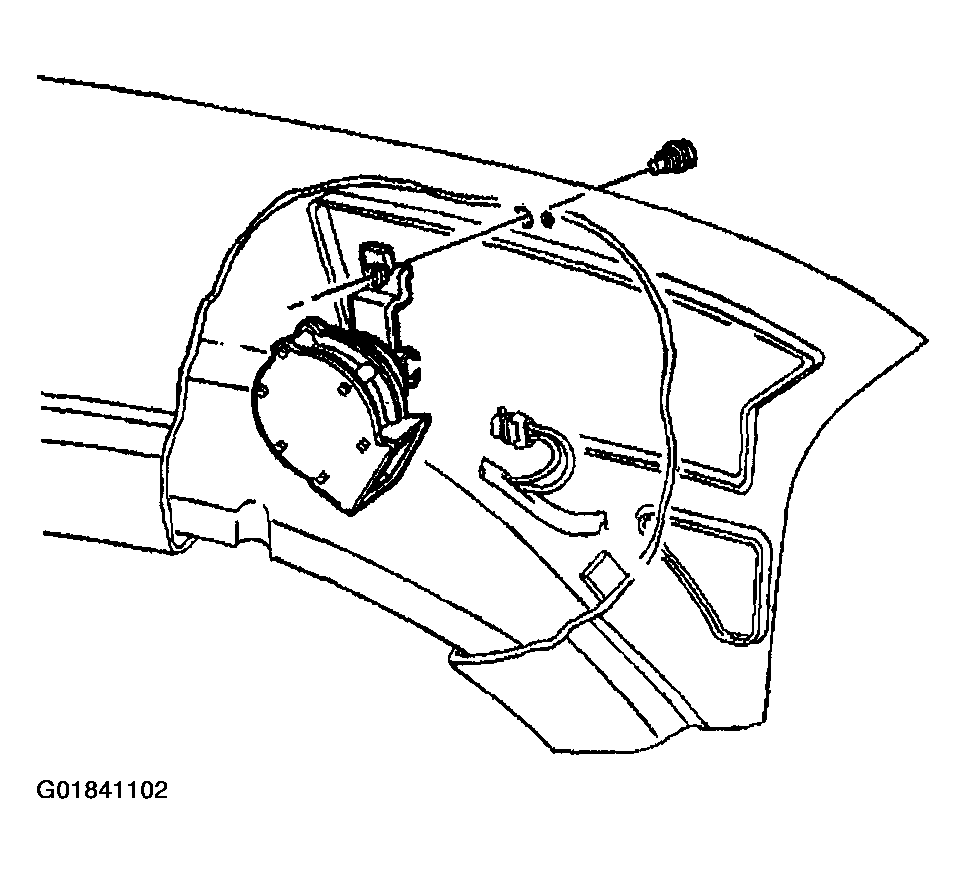

    Fig 2: Removing Bolt That Retains Horn Assembly To Fender - Right
    G01841102Courtesy of GENERAL MOTORS CORP.
