Removal Procedure

  1. Remove the windshield washer solvent container. Refer to WASHER PUMP/RESERVOIR REPLACEMENT .
  2. Disconnect the electrical connector from the horn.

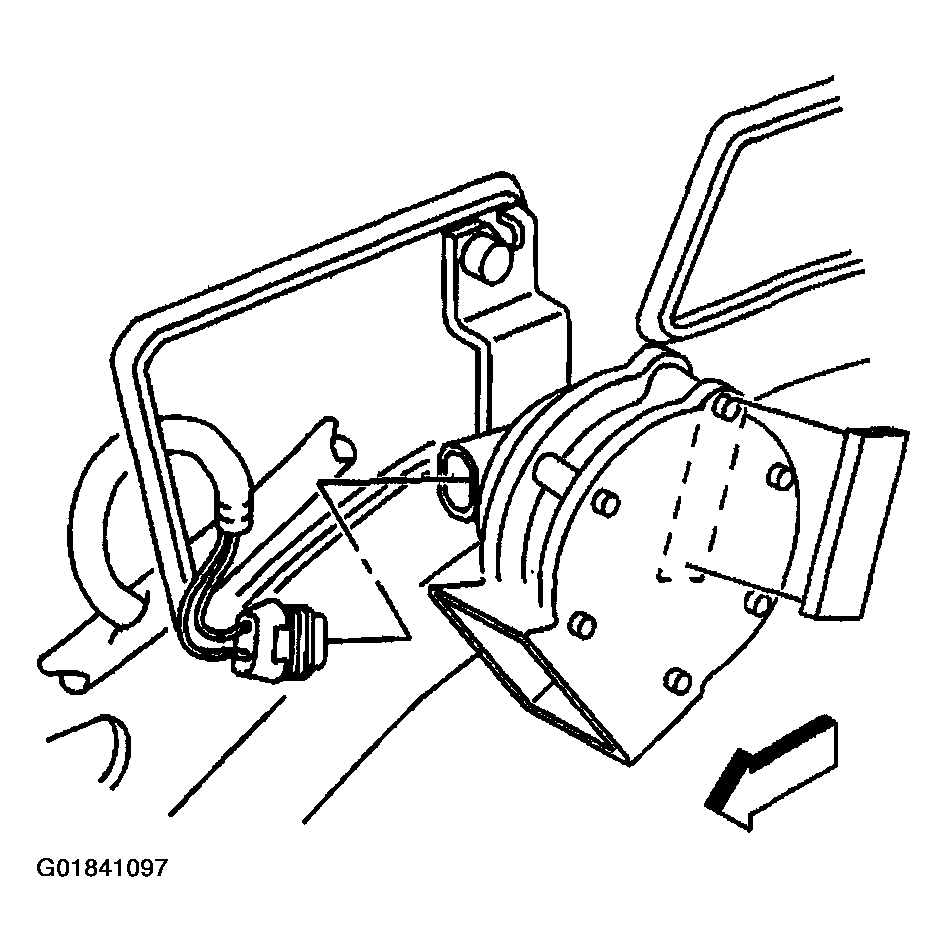

    Fig 1: Disconnecting Electrical Connector From Horn - Left
    G01841097Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt that retains the horn to the inner fender.
  4. Remove the horn from the inner fender.

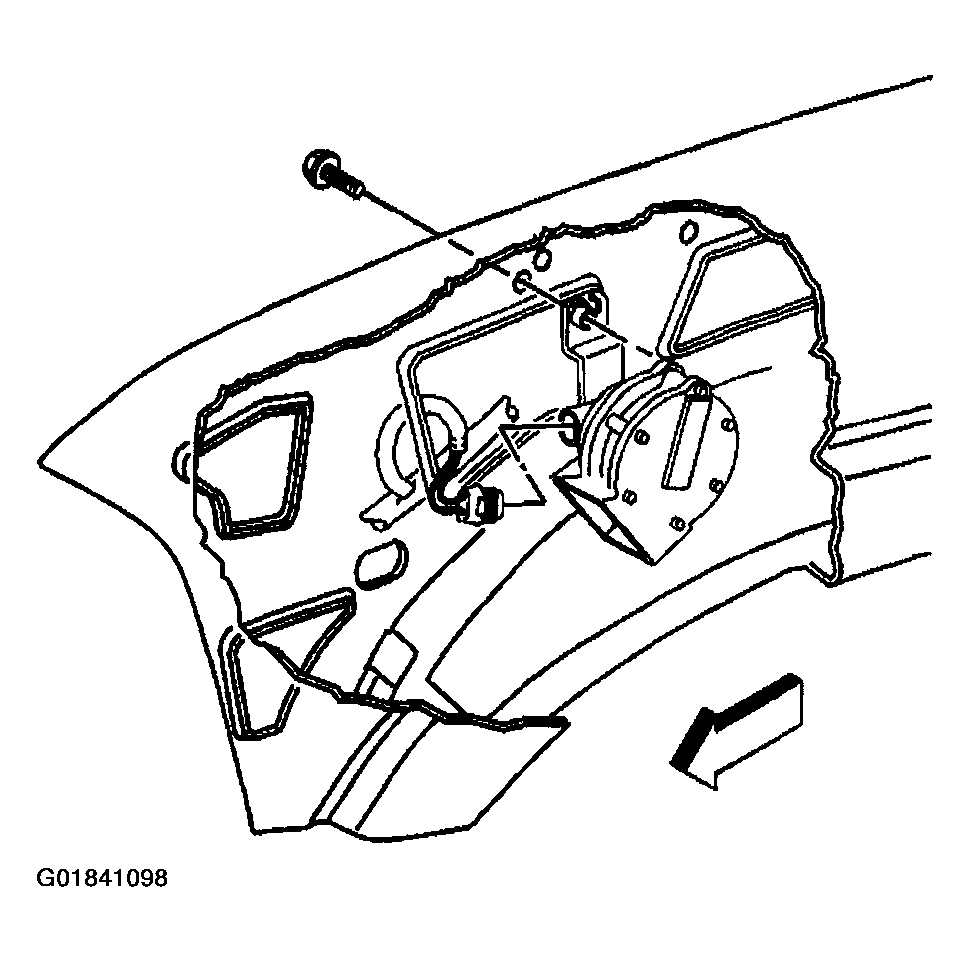

    Fig 2: Removing Bolt That Retains Horn To Inner Fender - Left
    G01841098Courtesy of GENERAL MOTORS CORP.
