Removal Procedure

  1. Open and support the hood.
  2. Remove the protective cover from the underhood fuse block.
  3. Remove the horn relay from the underhood fuse block.

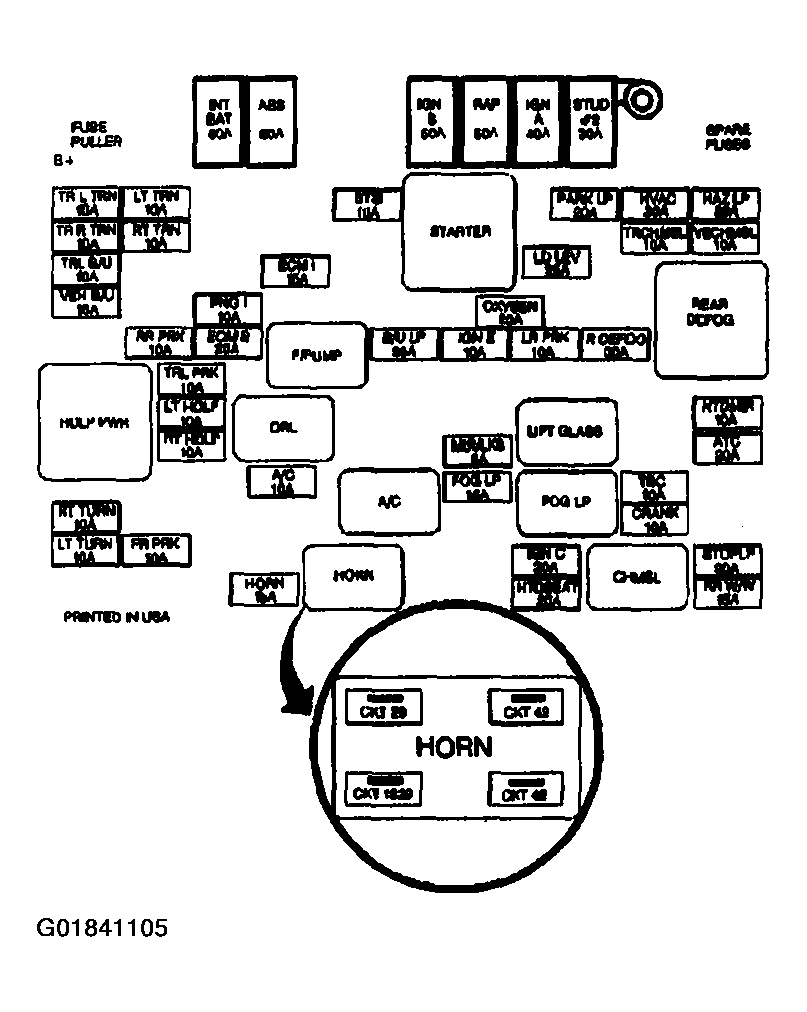

    Fig 1: Removing Horn Relay From Underhood Fuse Block
    G01841105Courtesy of GENERAL MOTORS CORP.
