Installation Procedure

Align the previously drawn reference marks.
Install the shaft to the transfer case.

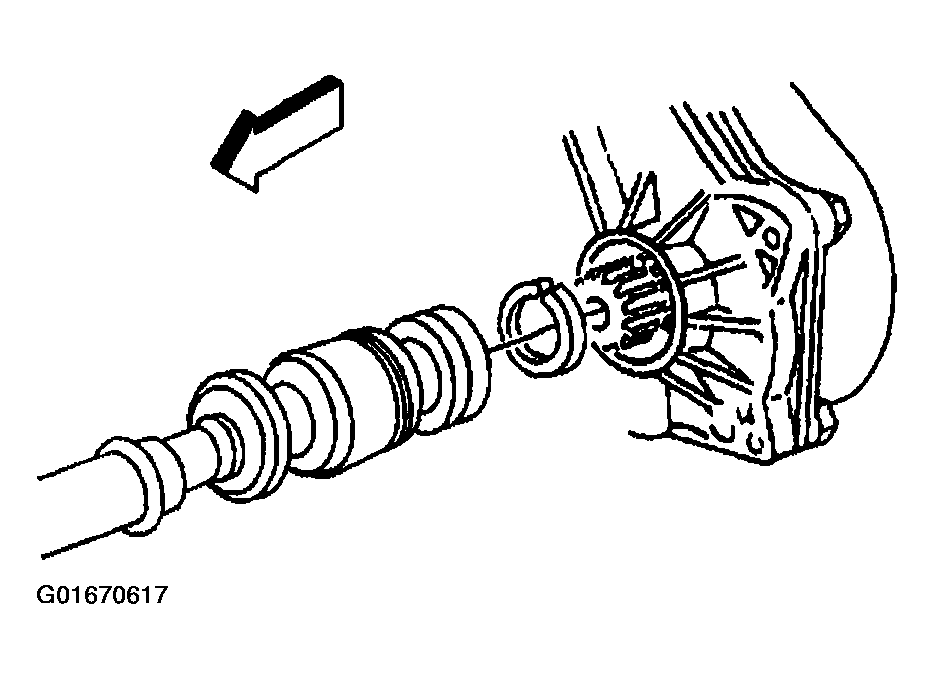

Fig 1: Installing Shaft To Transfer Case - Front
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Ensure that the propeller shaft assembly is fully engaged into the slip yoke. The retaining ring will produce a snapping noise when the shaft is properly engaged.
Install the front propeller shaft yoke clamp bolts to the front drive axle.
Tighten

Tighten the front propeller shaft yoke clamp bolts to 20 N.m (15 lb ft).
Lower the vehicle.

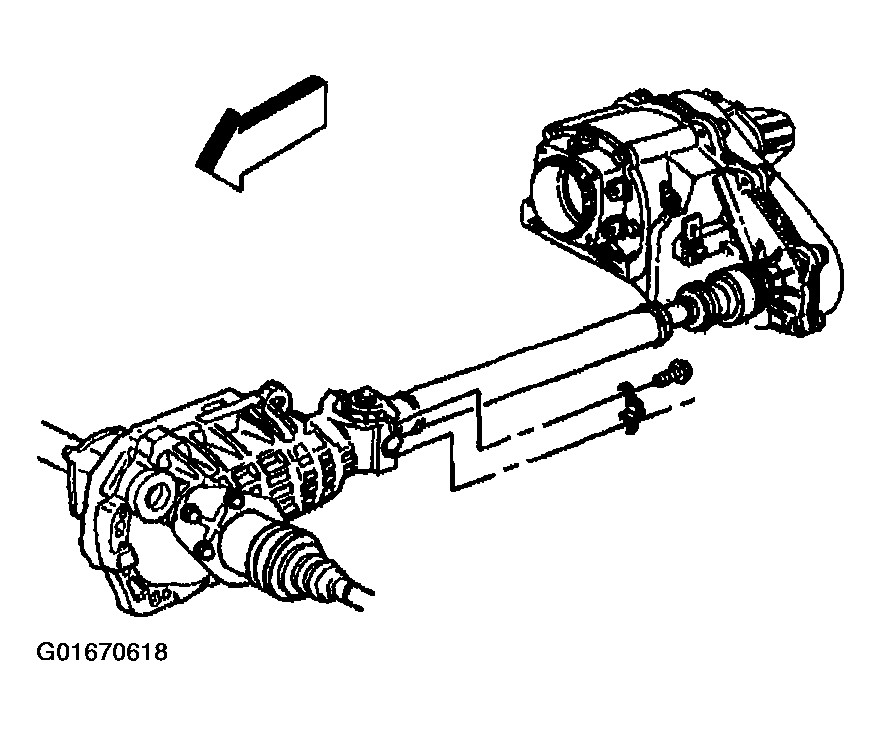

Fig 2: Installing Front Propeller Shaft Yoke Clamp Bolts To Front Drive Axle
Courtesy of GENERAL MOTORS CORP.
