Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the propeller shaft. Refer to Propeller Shaft Replacement - Two Piece .
  3. Remove the center bearing using the following steps:

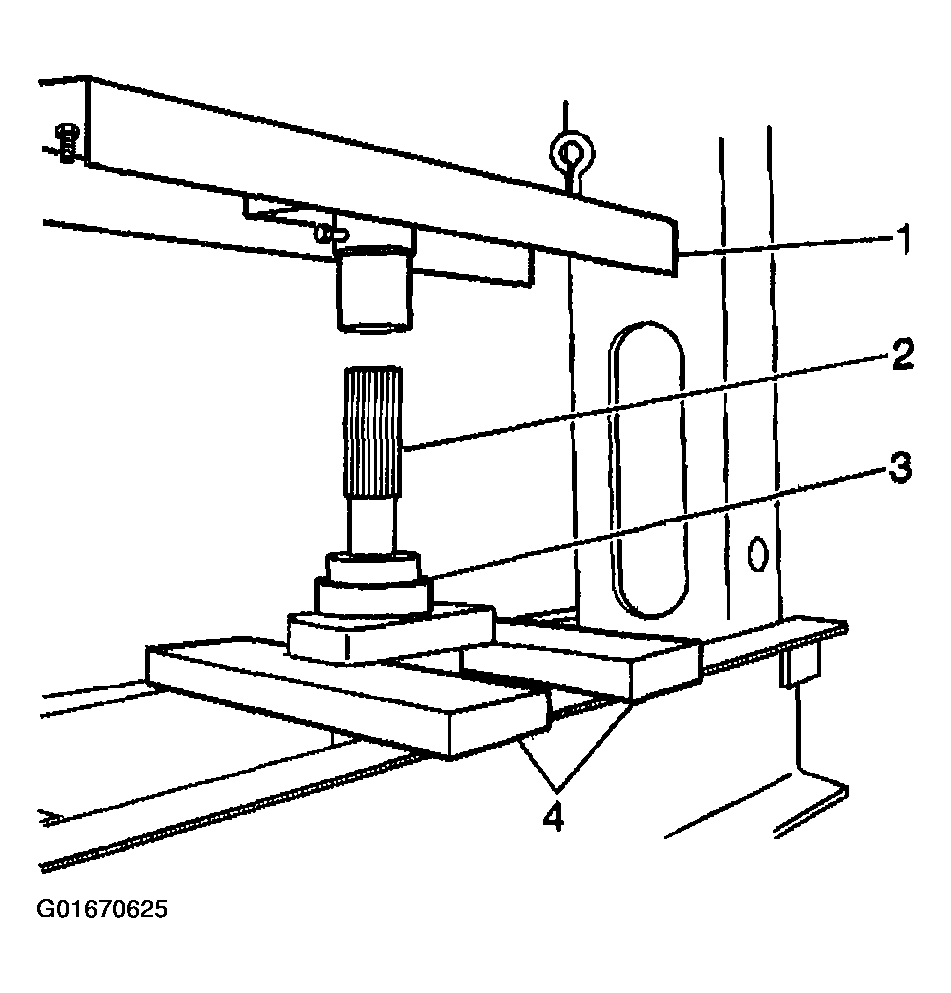

    1. 3.1. Stand the propeller shaft (2) on end in the press (1) with the center bearing (3) supported by the press bars (4).
    2. 3.2. Press the propeller shaft (2) down and off the center bearing (3).
      Fig 1: Removing Center Bearing
      G01670625Courtesy of GENERAL MOTORS CORP.
