Installation Procedure

  1. Install the center bearing (3) onto the propeller shaft (2) by pressing the center bearing onto the shaft using a press (1).

    Ensure that the center bearing is fully seated on the propeller shaft.

  2. Install the propeller shaft. Refer to Propeller Shaft Replacement - Two Piece .
  3. Lower the vehicle.

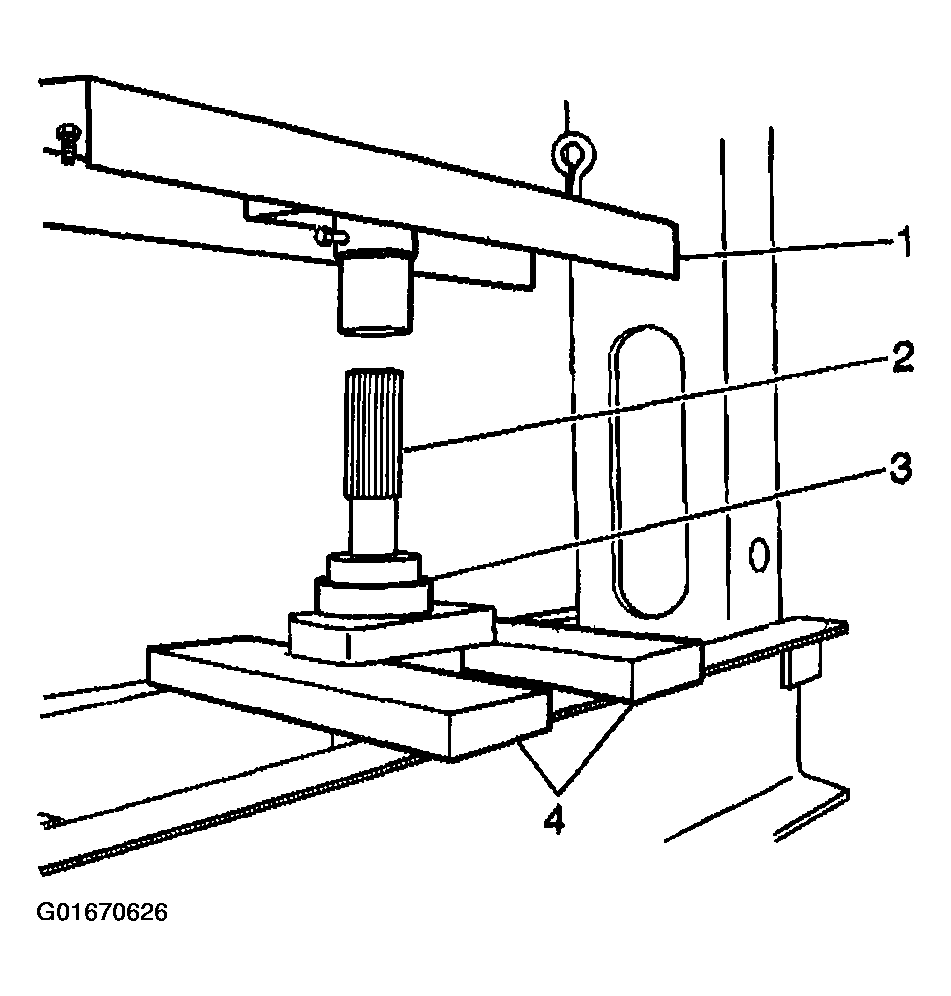

    Fig 1: Installing Center Bearing Onto Propeller Shaft
    G01670626Courtesy of GENERAL MOTORS CORP.
