Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Drivelines & Axles >> Driveshaft & Universal Joints >> Propeller Shaft And Universal Joints >> Diagnostic Information and Procedures >> Shudder on Acceleration at Low Speed

Shudder on Acceleration at Low Speed

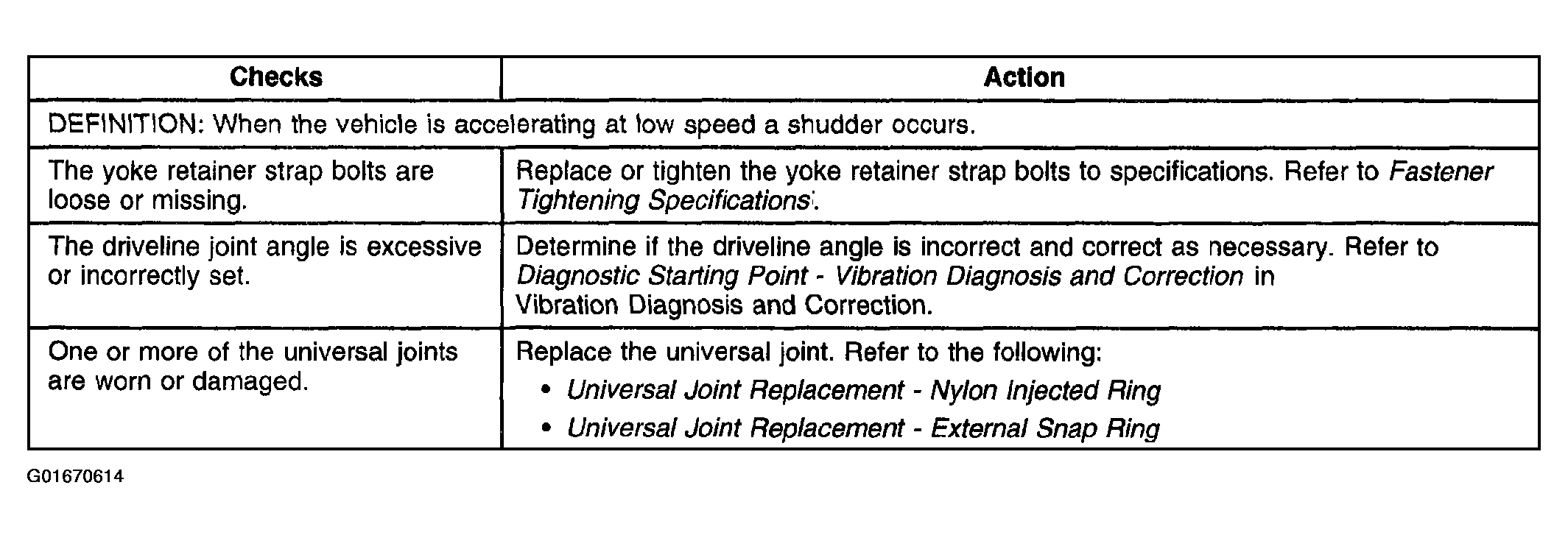

Fig 1: Shudder On Acceleration At Low Speed

G01670614

Courtesy of GENERAL MOTORS CORP.
