Driveline Disassembled Views

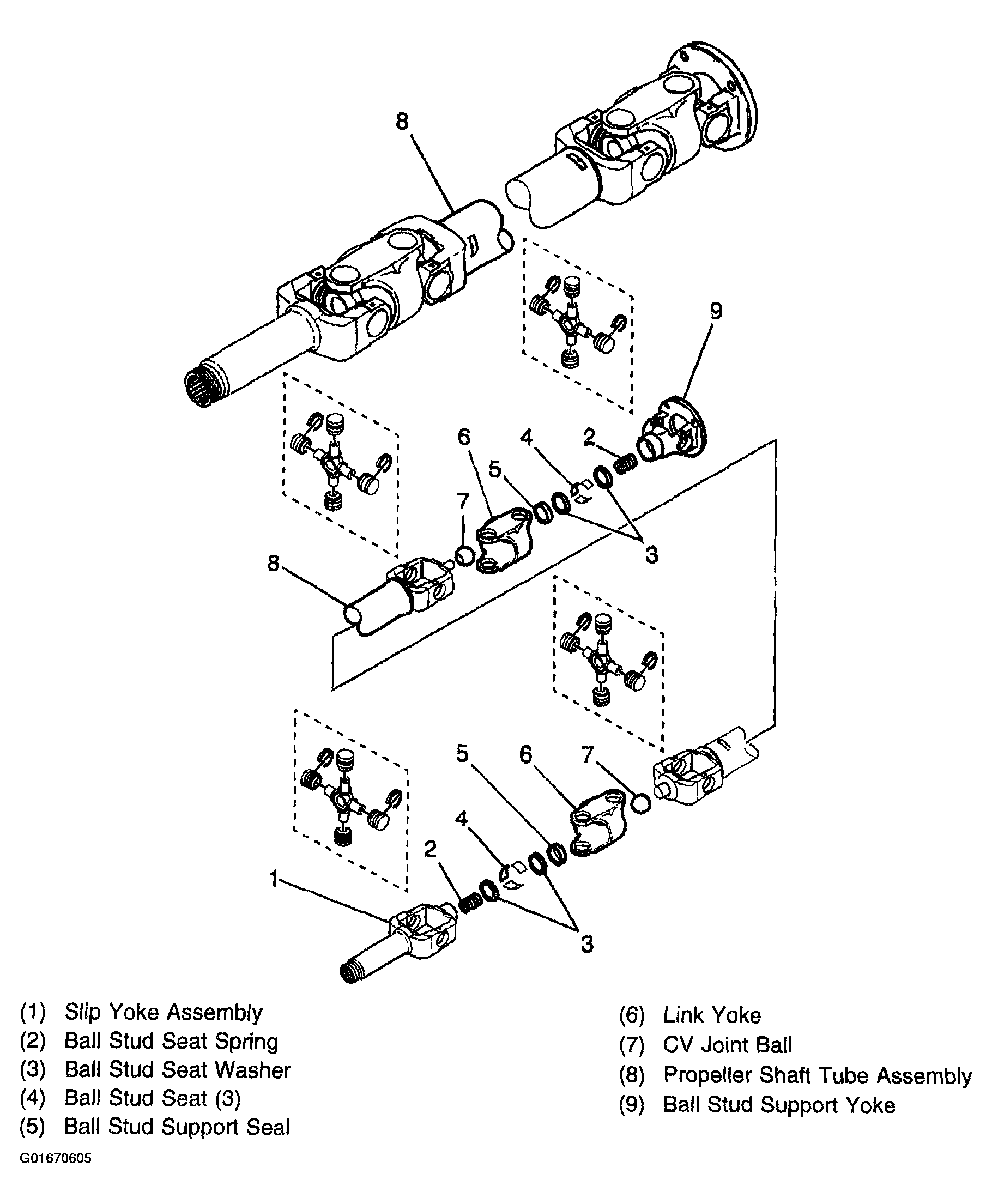

Fig 1: Double Cardan Propeller Shaft
G01670605Courtesy of GENERAL MOTORS CORP.

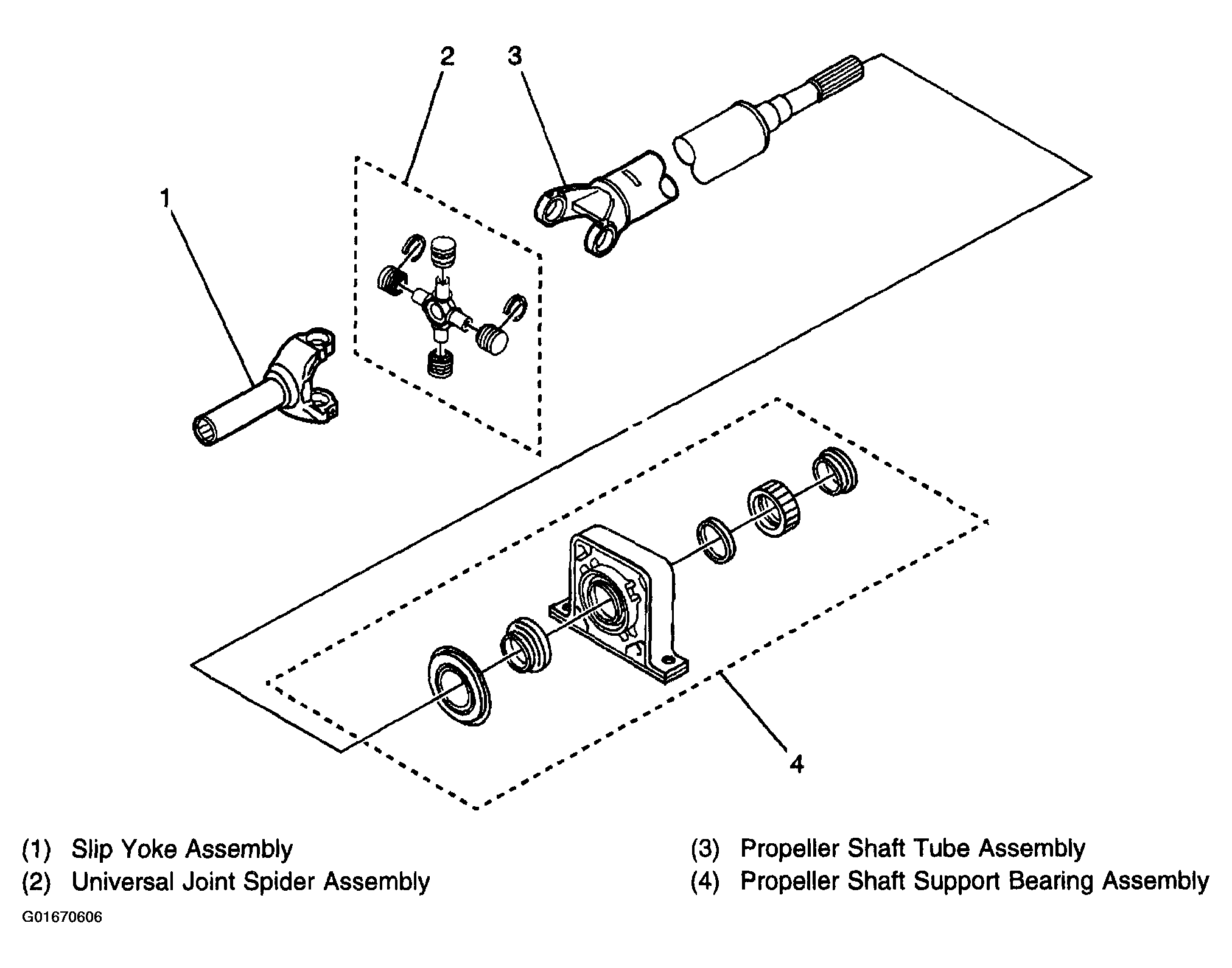

Fig 2: Propeller Shaft with Center Bearing
G01670606Courtesy of GENERAL MOTORS CORP.

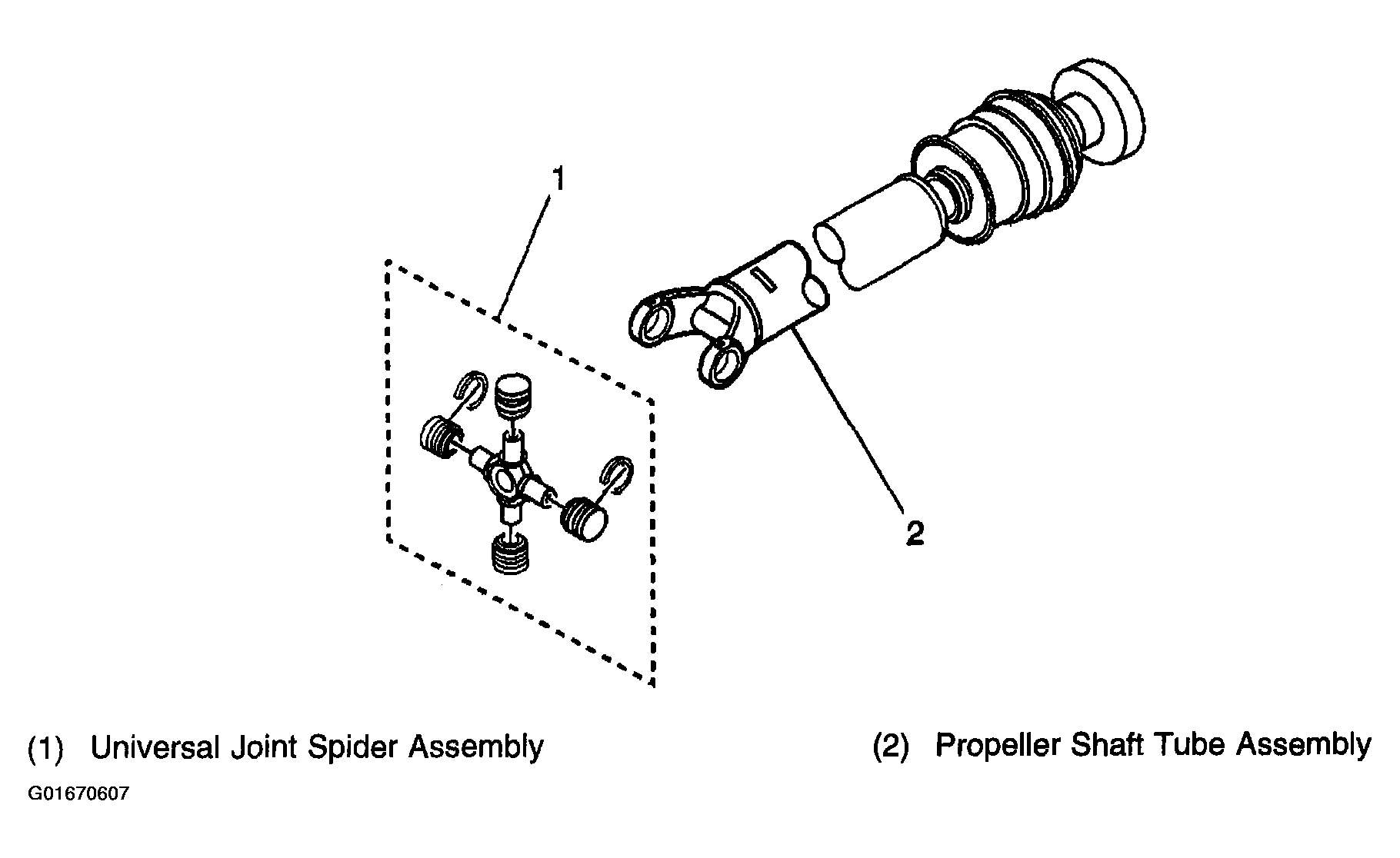

Fig 3: Front Drive Propeller Shaft
G01670607Courtesy of GENERAL MOTORS CORP.
