Installation Procedure

  1. Use a neoprene-type replacement vent hose.
  2. Install the hose clamp to the vent hose.
  3. Install the vent hanger clip to the vent hose.
  4. Install the vent assembly to the vent hose.
  5. Install the vent hose to the axle vent tube.
  6. Install the hose clamp to the axle vent tube. Do not kink or twist the hose.

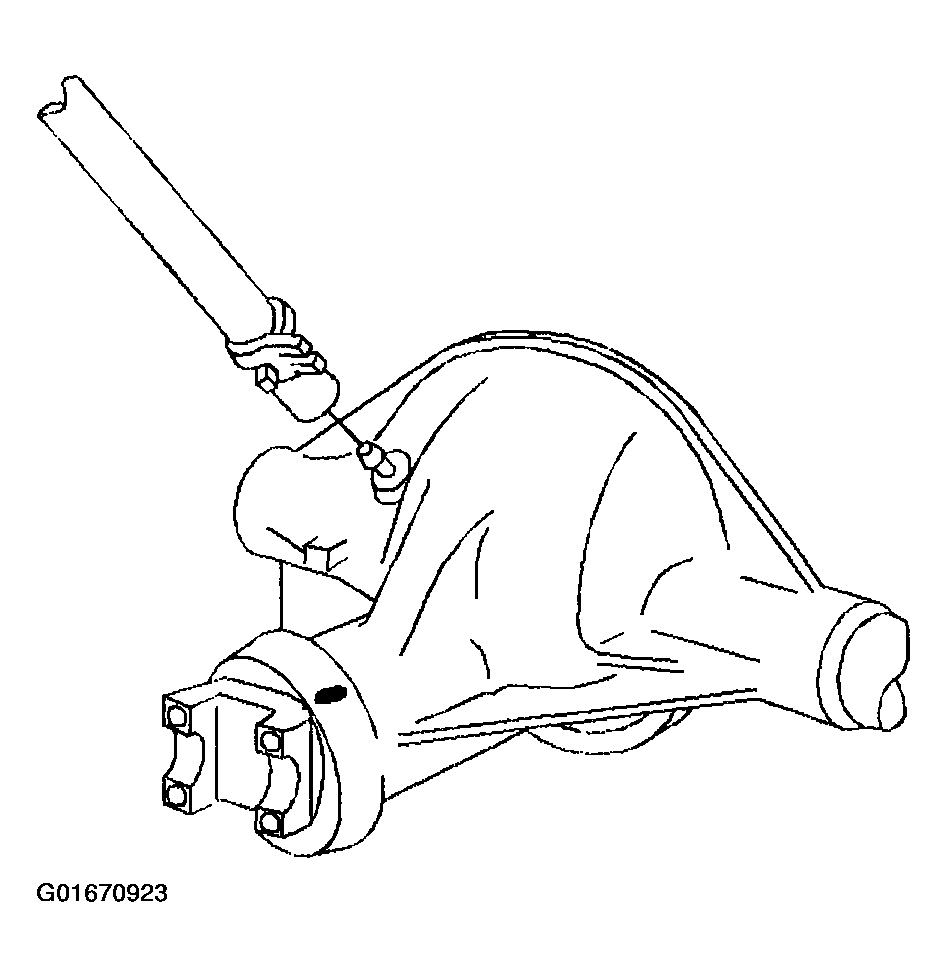

    Fig 1: Installing Vent Hose To Axle Vent Tube
    G01670923Courtesy of GENERAL MOTORS CORP.
  7. Install the hose to the frame.
    Fig 2: Installing Hose To Frame
    G01670924Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the vent clamp bolt at the vent assembly.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  9. Lower the vehicle.
    Fig 3: Installing Vent Clamp Bolt At Vent Assembly
    G01670925Courtesy of GENERAL MOTORS CORP.
