Lubricant Level Check (7.6 Axle)

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Make sure the vehicle is level.
  3. Inspect the rear axle for leaks. Repair as necessary.
  4. Clean the area around the rear axle fill plug.
  5. Remove the rear axle fill plug.
  6. Inspect the lubricant level.

    Specification

    The lubricant level should be between 0-10 mm (0-0.4 in) below the fill plug opening.

  7. If the level is low, add lubricant until the level is even with the bottom edge of the fill plug opening. Use the proper fluid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

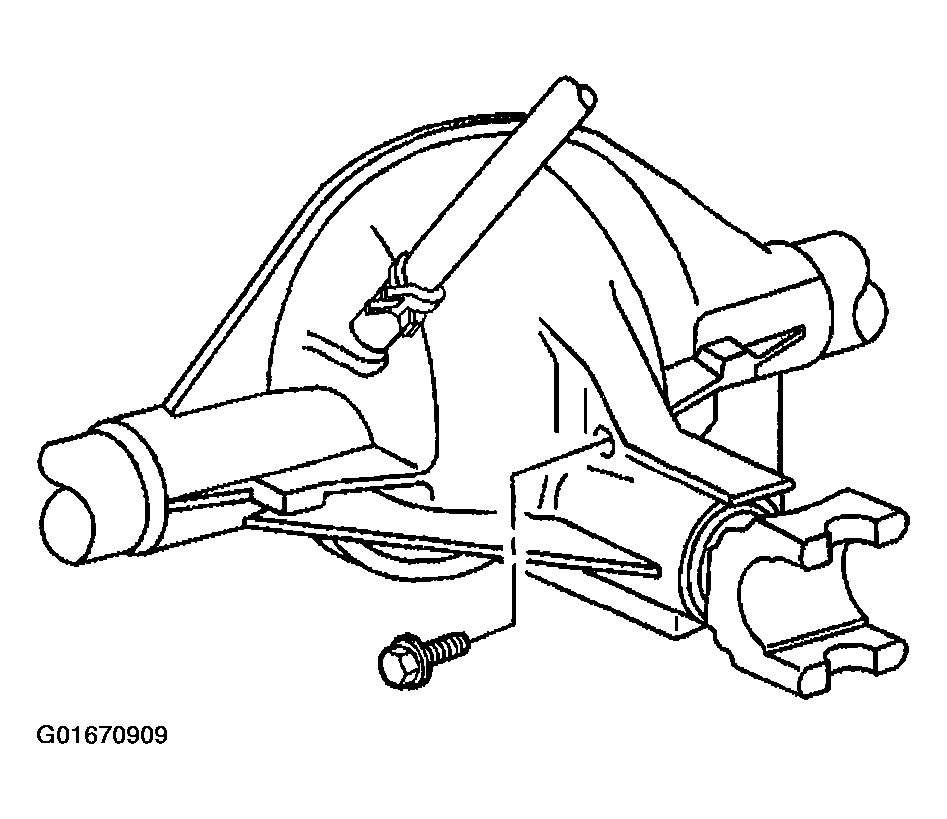

    Fig 1: Removing/Installing Rear Axle Fill Plug
    G01670909Courtesy of GENERAL MOTORS CORP.
  8. Install the rear axle fill plug.

    Tighten

    Tighten the rear axle fill plug to 33 N.m (24 lb ft).

  9. Lower the vehicle.
