Wheel Bearing Wear - Rear Drive Axle (Tapered): Galling

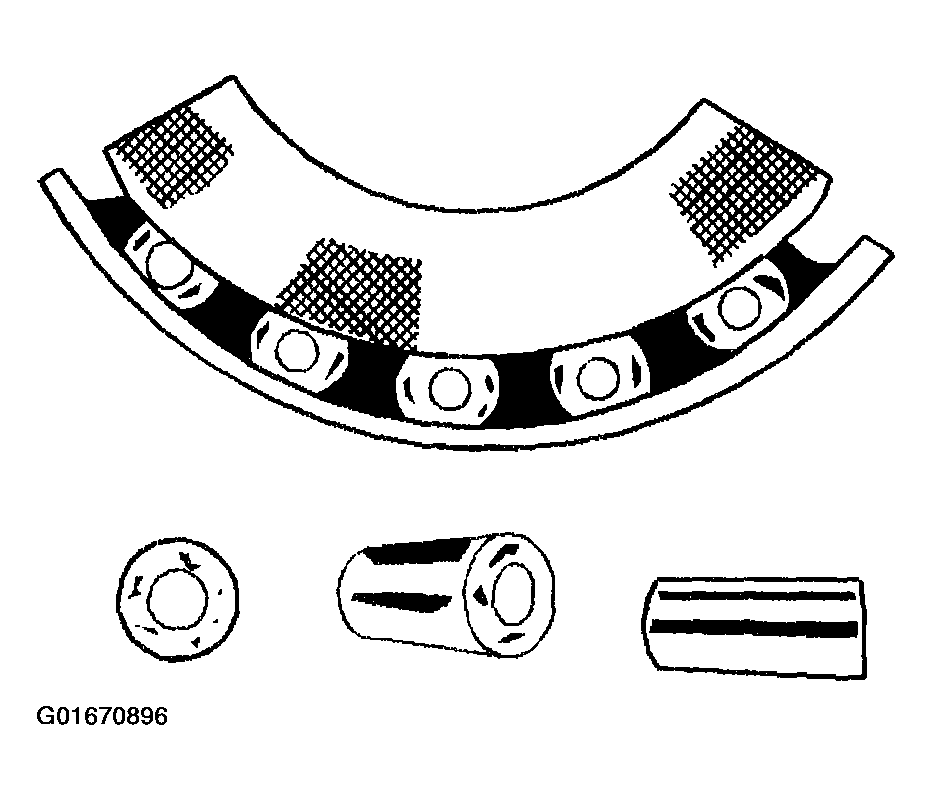

Fig 1: Galling

Courtesy of GENERAL MOTORS CORP.

Metal smears on the roller ends due to overheating, lubricant failure or lubricant overload. Replace the bearing. Check the seals. Check for proper lubrication.
