Fatigue Spalling

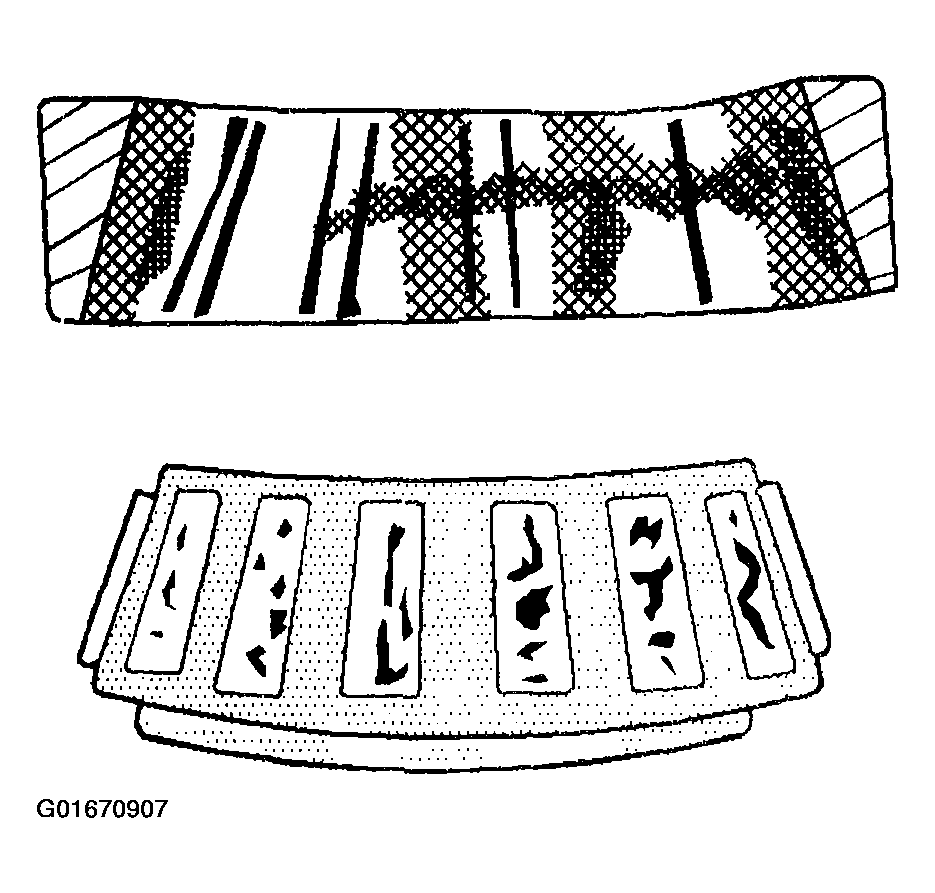

Fig 1: Fatigue Spalling

G01670907

Courtesy of GENERAL MOTORS CORP.

Flaked surface metal that results from fatigue. Replace the bearing. Clean all related parts.
