Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Rear Drive Axle >> Diagnostic Information and Procedures >> Wheel Bearing Wear - Rear Drive Axle (Tapered) >> Brinelling

Wheel Bearing Wear - Rear Drive Axle (Tapered): Brinelling

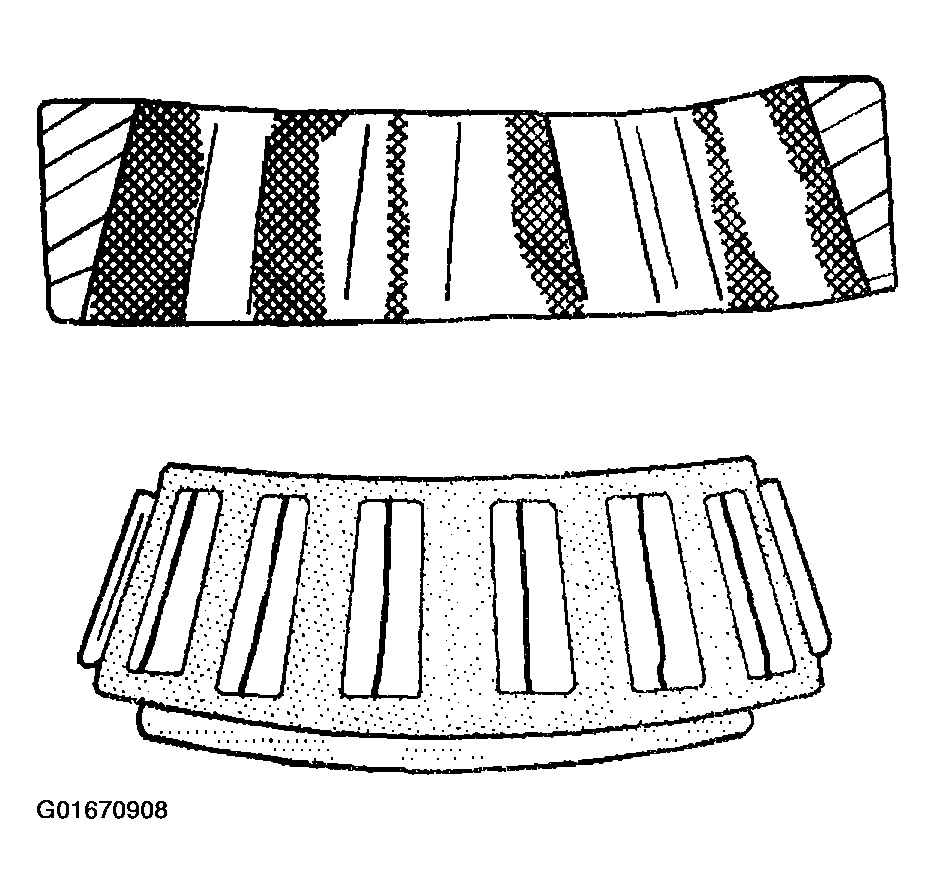

Fig 1: Brinelling
G01670908Courtesy of GENERAL MOTORS CORP.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while the bearing is not rotating. Replace a rough or noisy bearing.
