Wheel Bearing Wear - Rear Drive Axle (Straight): Indentations

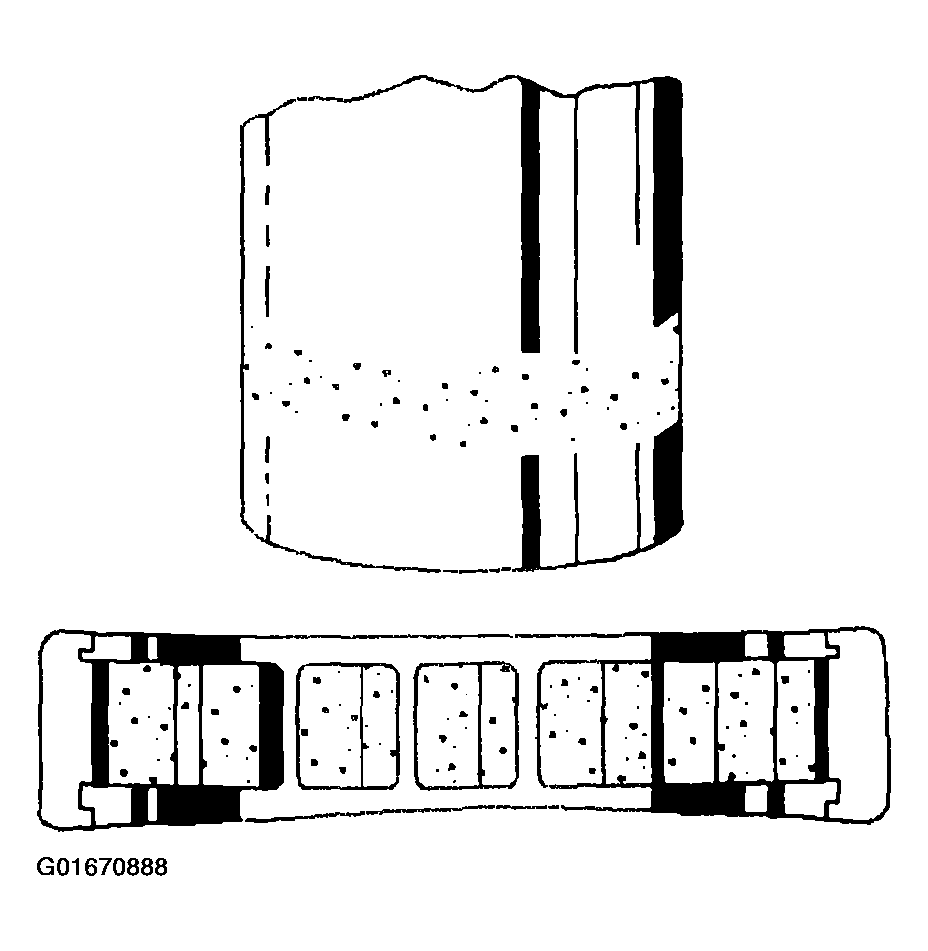

Fig 1: Indentations
G01670888Courtesy of GENERAL MOTORS CORP.

Surface depressions on race and rollers can be caused by hard particles of foreign material. Clean all of the parts, including the housing. Check the seals. Replace the bearings if rough or noisy. Replace the shaft if damaged.
