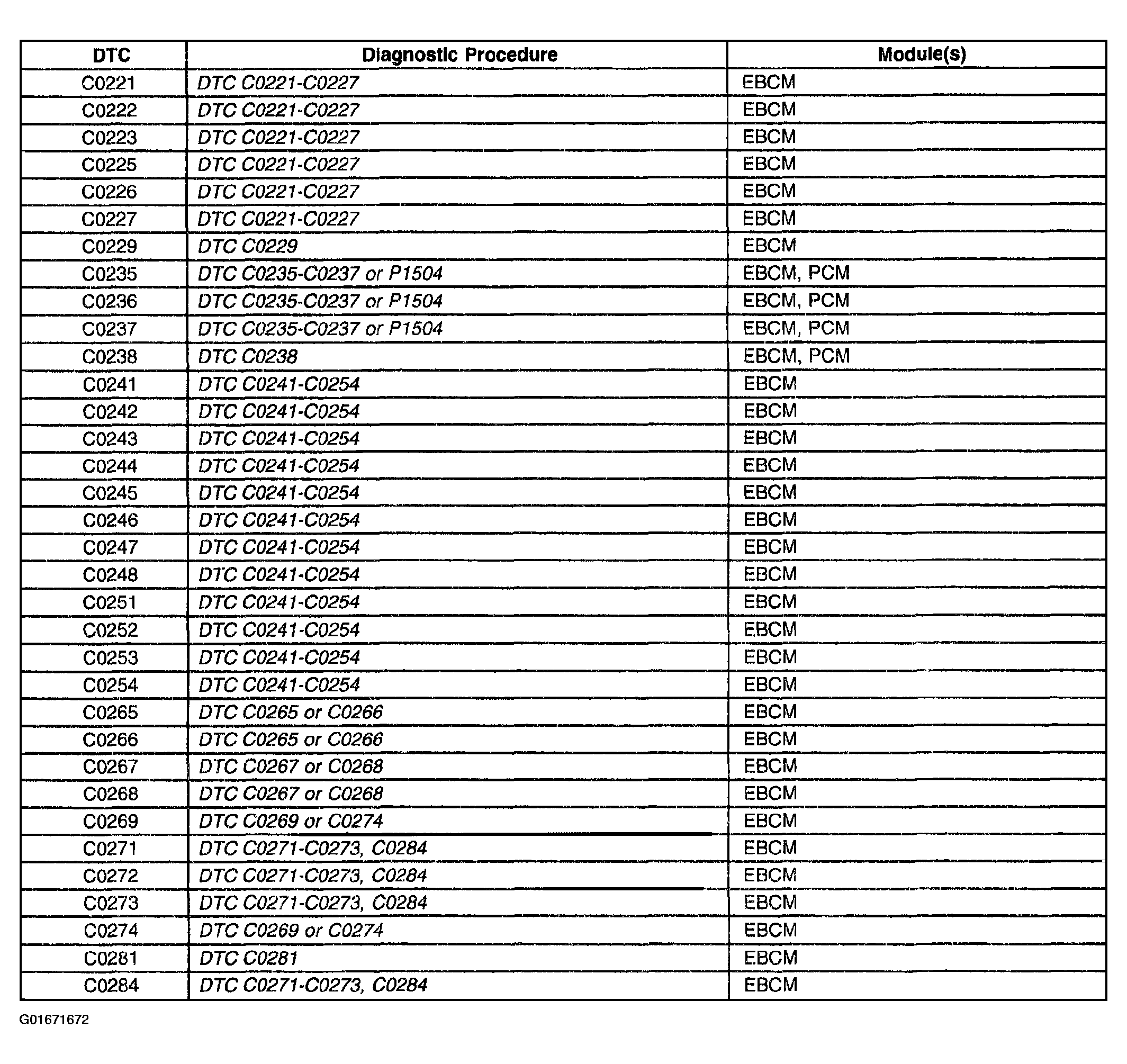

Diagnostic Trouble Code (DTC) List
a00187304
| DTC | Description |
|---|---|
| DTC C0221, C0222, C0223, C0225, C0226, C0227 | Front Wheel Speed Sensor Cirucit |
| DTC C0229 | Drop Out of Front Wheel Speed Signals |
| DTC C0235, C0236, C0237 or P1504 | Rear Wheel Speed Sensor Circuit |
| DTC C0238 | Wheel Speed Mismatch |
| DTC C0241, C0242, C0243, C0244, C0245, C0246, C0247, C0248, C0251, C0252, C0253, C0254 | EBCM Control Valve Circuit |
| DTC C0265 or C0266 | EBCM Relay Circuit |
| DTC C0267 or C0268 | Pump Motor Circuit Open/Shorted |
| DTC C0269 or C0274 | Excessive Dump/Isolation Time |
| DTC C0271, C0272, C0273, C0284 | EBCM Malfunction |
| DTC C0281 | Brake Switch Circuit |
