Test Description

The numbers below refer to the step numbers on the diagnostic table.

4. This step tests for a shorted stoplamp switch.

5. This step tests for an open stoplamp switch.

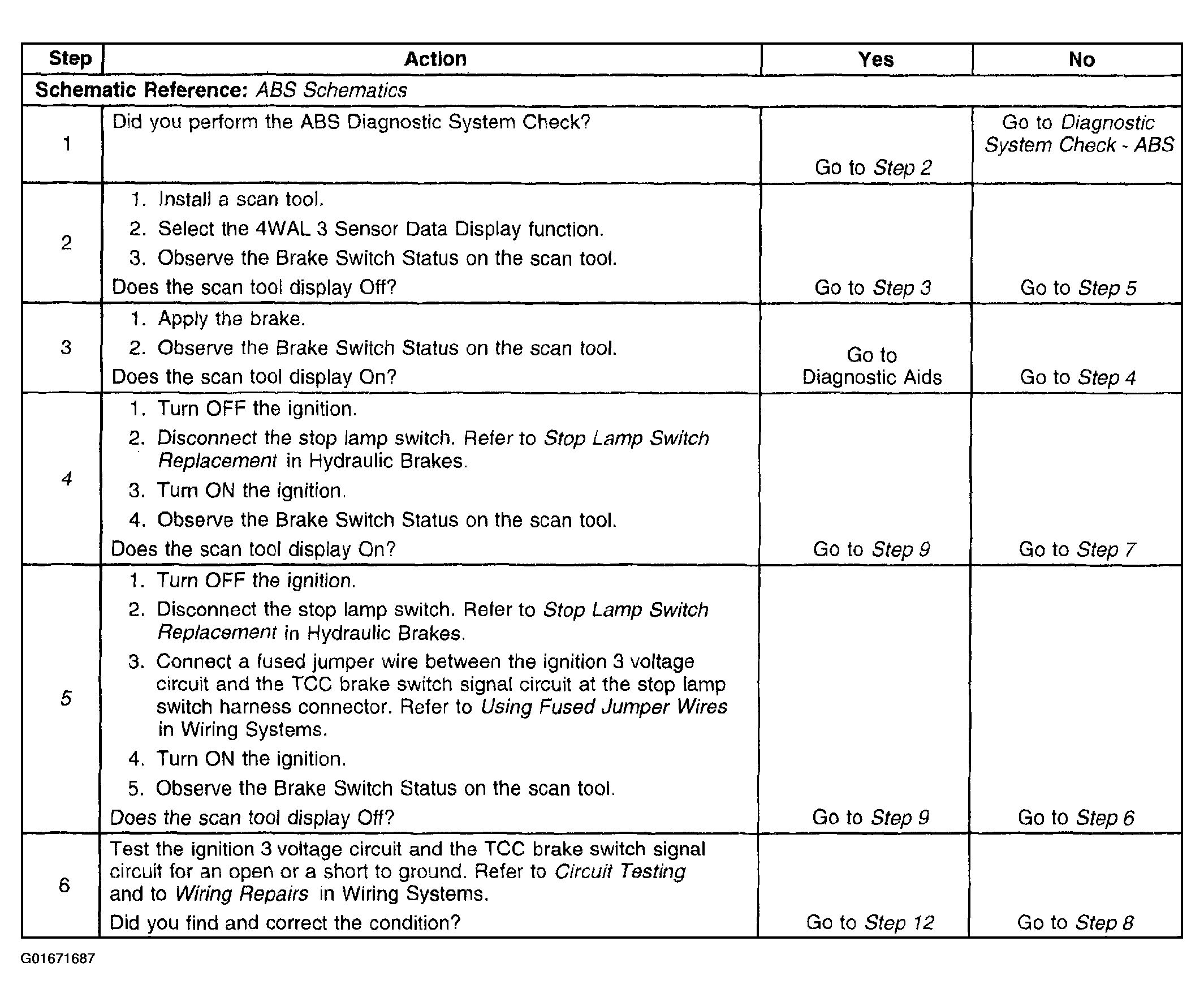

Fig 1: DTC C0281 (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

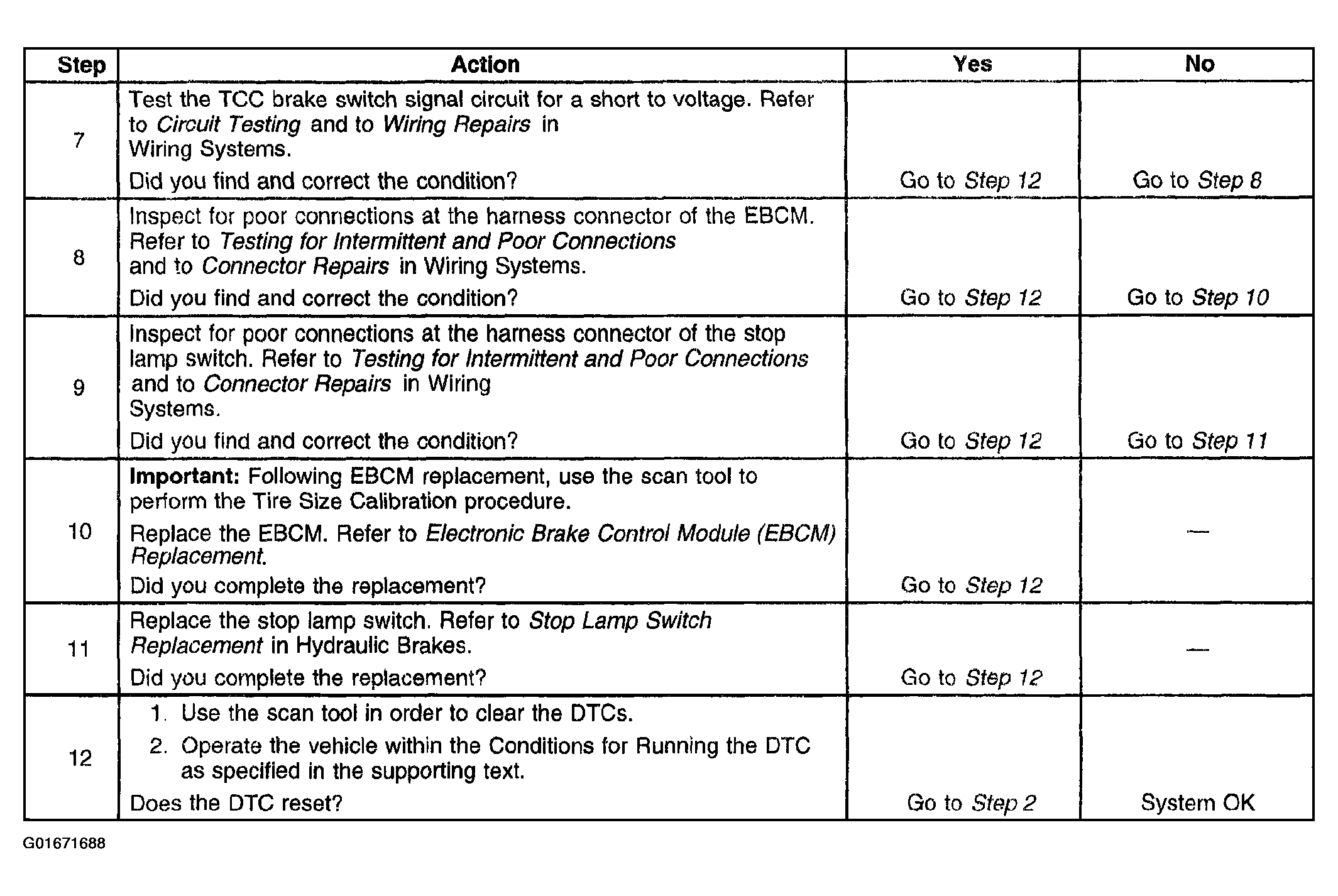

Fig 2: DTC C0281 (Steps 7-12)

Courtesy of GENERAL MOTORS CORP.
