Test Description

The number below refers to the step number on the diagnostic table:

2. Performing solenoid tests determines if there is a mechanical malfunction inside the BPMV. Perform dump valve solenoid tests for DTC C0269 or isolation valve solenoid tests for DTC C0274.

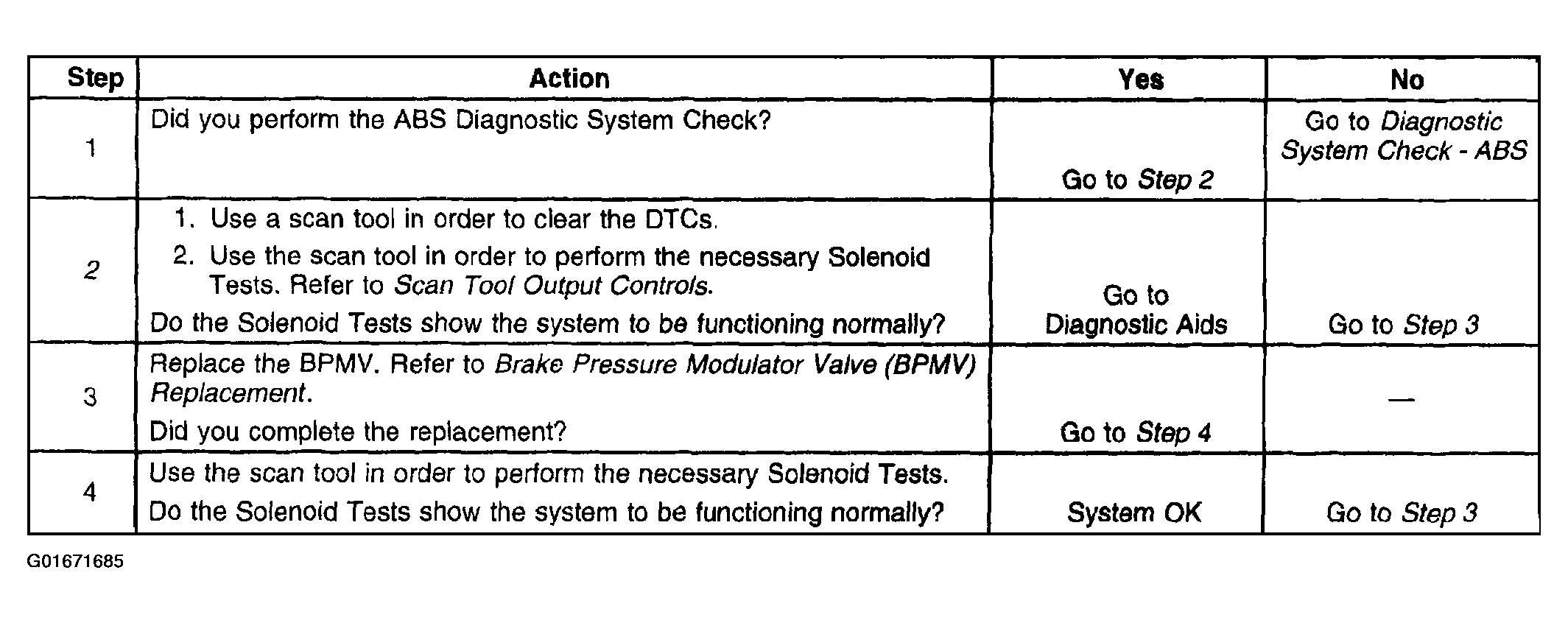

Fig 1: DTC C0269 or C0274
G01671685Courtesy of GENERAL MOTORS CORP.
