Test Description

The number below refers to the step number on the diagnostic table.

2. This step tests if the IPC is able to illuminate the ABS indicator during the bulb check.

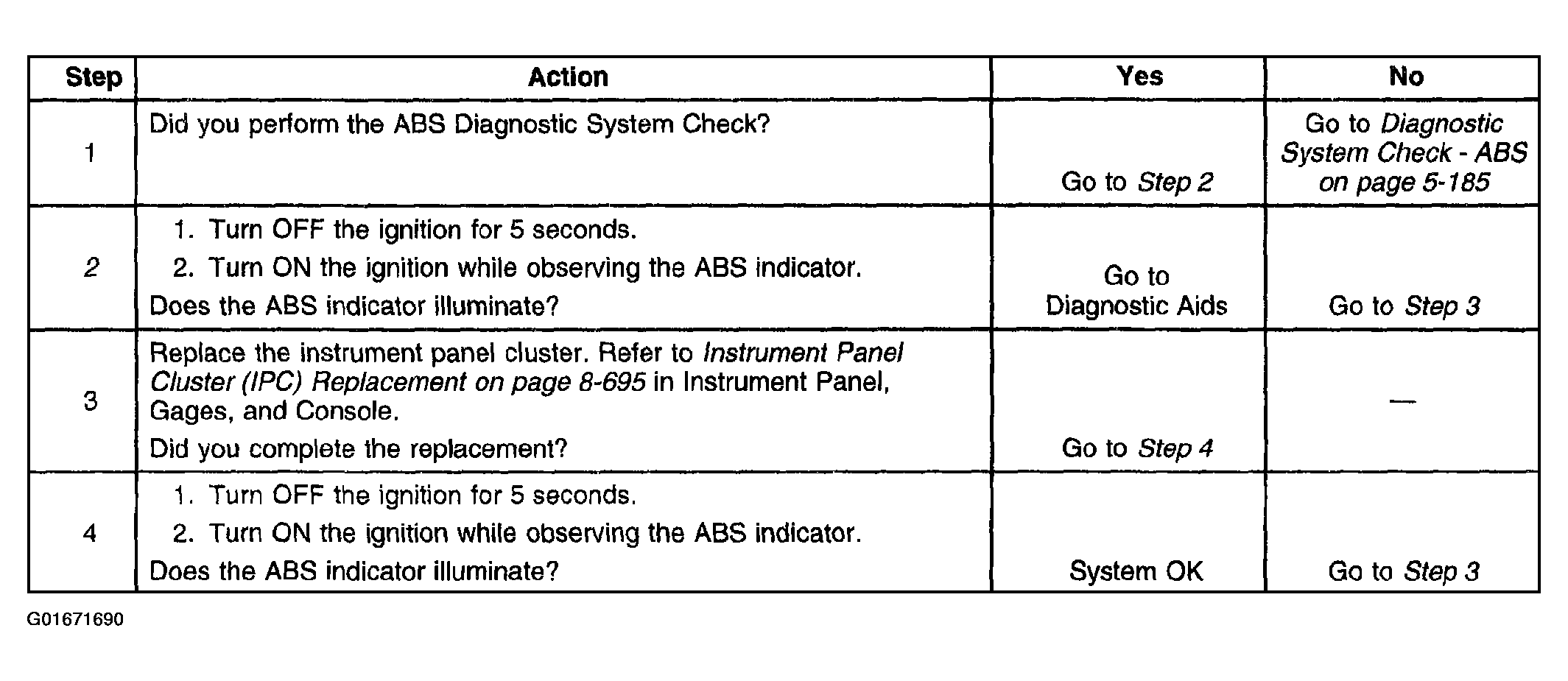

Fig 1: ABS Indicator Inoperative
G01671690Courtesy of GENERAL MOTORS CORP.
