Test Description

The number below refers to the step number on the diagnostic table.

3. This step tests if the IPC is able to turn OFF the ABS indicator.

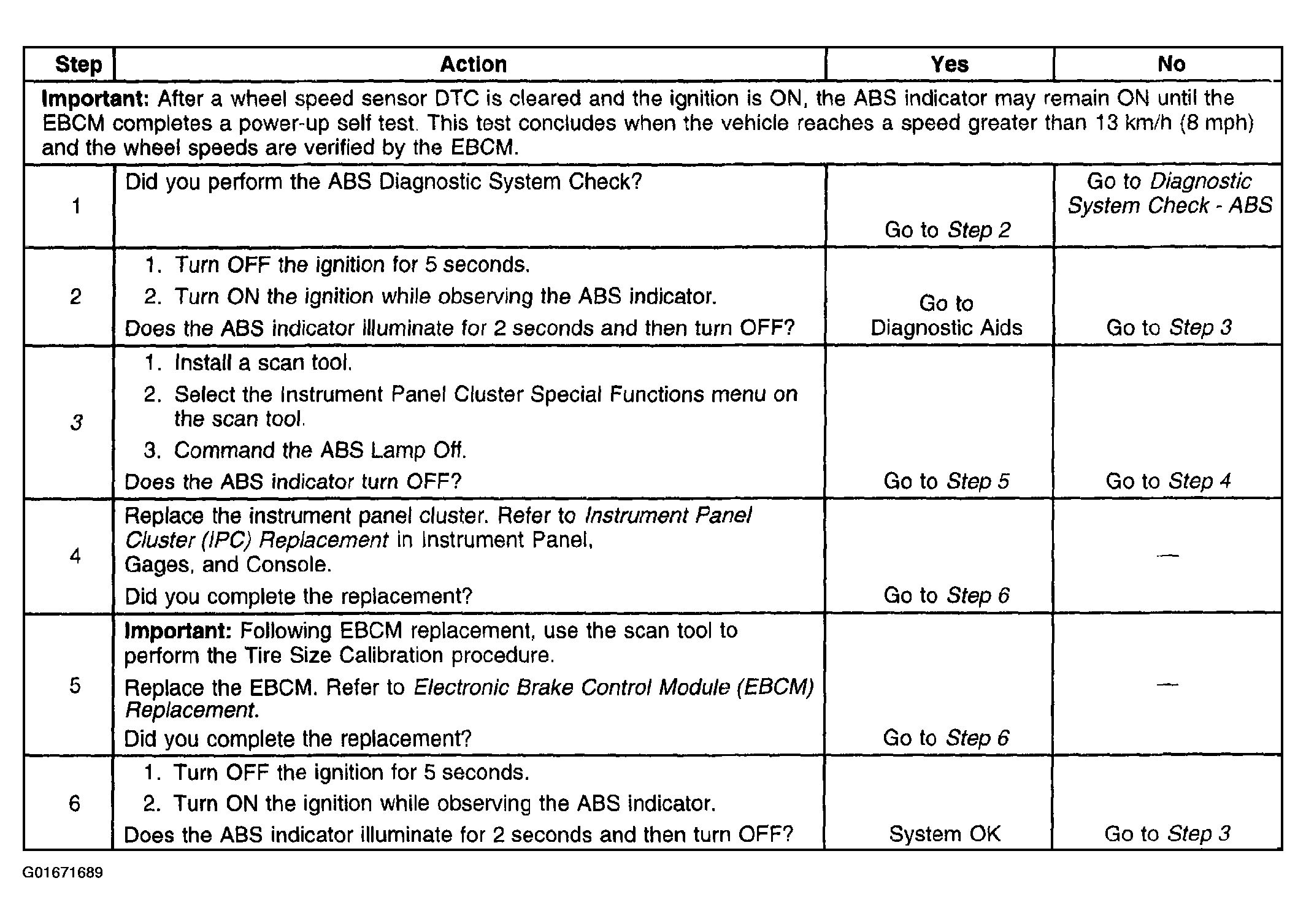

Fig 1: ABS Indicator Always On
G01671689Courtesy of GENERAL MOTORS CORP.
