Removal Procedure

  1. Peel back the weatherstrip tape in order to reveal the molding screws.
  2. Remove the fasteners.
  3. Remove the reveal molding from the windshield pillar.

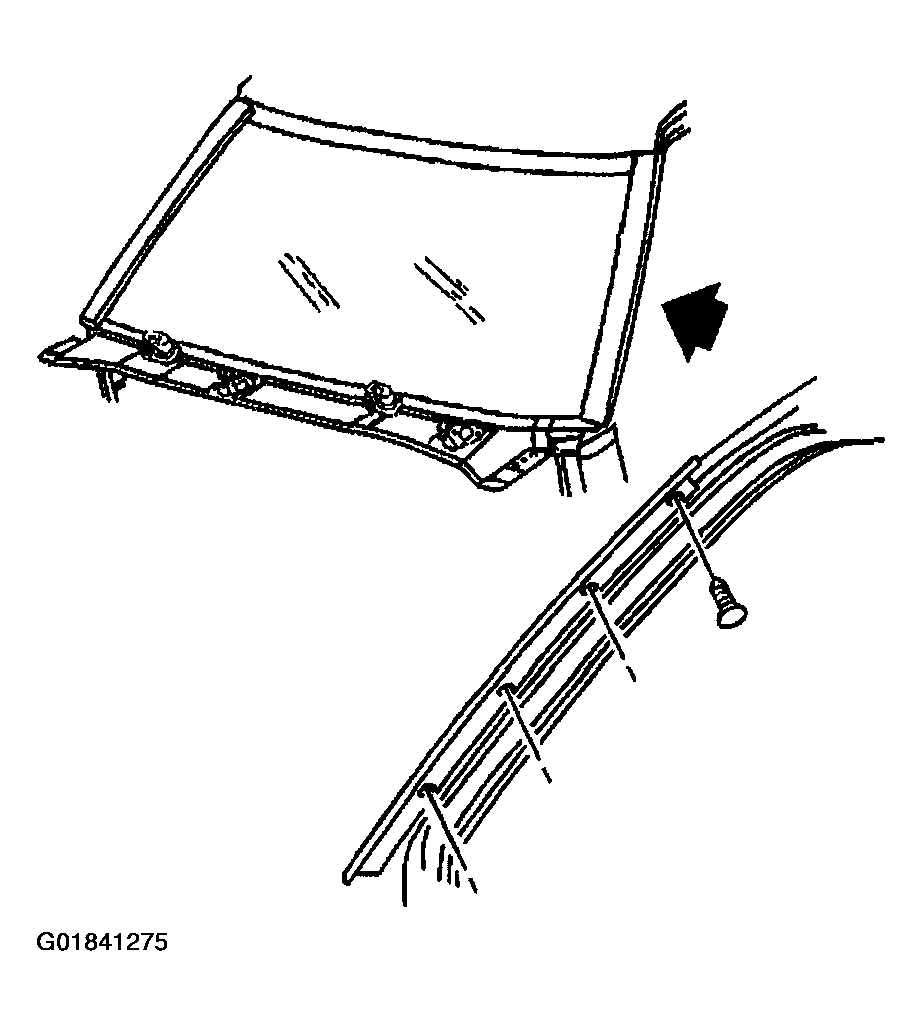

    Fig 1: Removing Fasteners And Reveal Molding From Windshield Pillar
    G01841275Courtesy of GENERAL MOTORS CORP.
