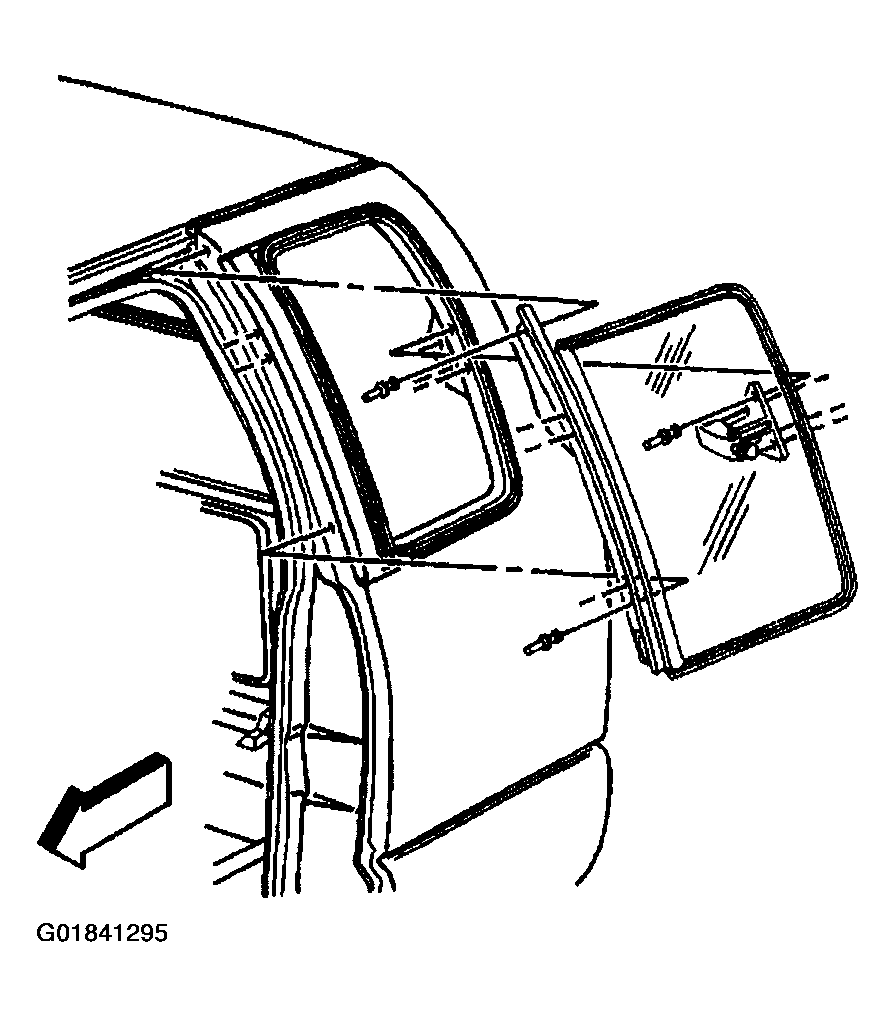

Removal Procedure
IMPORTANT:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim of the window.
- Carefully spread the handle retainer outward in order to release the latch pin from the latch.
- Remove the latch pin from the latch.
- Remove the seat belt retractor. Refer to SEAT BELT REPLACEMENT - FRONT in Seat Belts.
- Open the door in order to access the rivets.CAUTION: Refer to DEFROSTER OUTLET CAUTION in Cautions and Notices.
- Cover to protect the following parts from broken glass:
- Upper dash pad
- Defroster outlets and A/C outlets
- Seats and carpeting
CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices. - Drill out the rivets retaining the window assembly.
- Thoroughly clean all metal particles that may have lodged inside the body panel.
- Remove the window assembly from the vehicle.
