Installation Procedure

  1. Install the window assembly to the vehicle.
  2. Using the J 34940  , or equivalent, install the rivets in order to retain the window assembly to the vehicle.
  3. Install the seat belt retractor. Refer to SEAT BELT REPLACEMENT - FRONT in Seat Belts.
  4. Install the latch pin.

    Using a punch, carefully drive the pin into the latch.

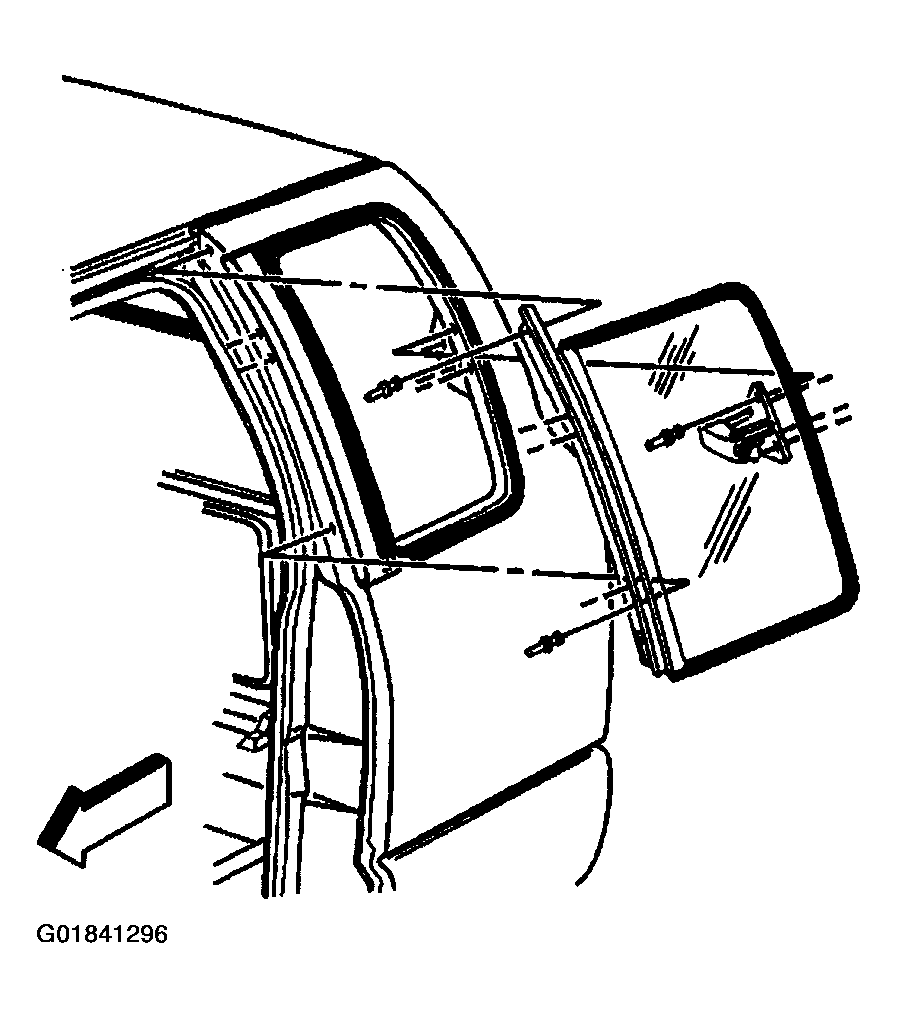

    Fig 1: Installing Window Assembly To Vehicle
    G01841296Courtesy of GENERAL MOTORS CORP.
