Removal Procedure

  1. Open the rear side door window.
  2. Remove the rear side door window weatherstrip. Start the at butt joint and pull the weatherstrip from the window opening.

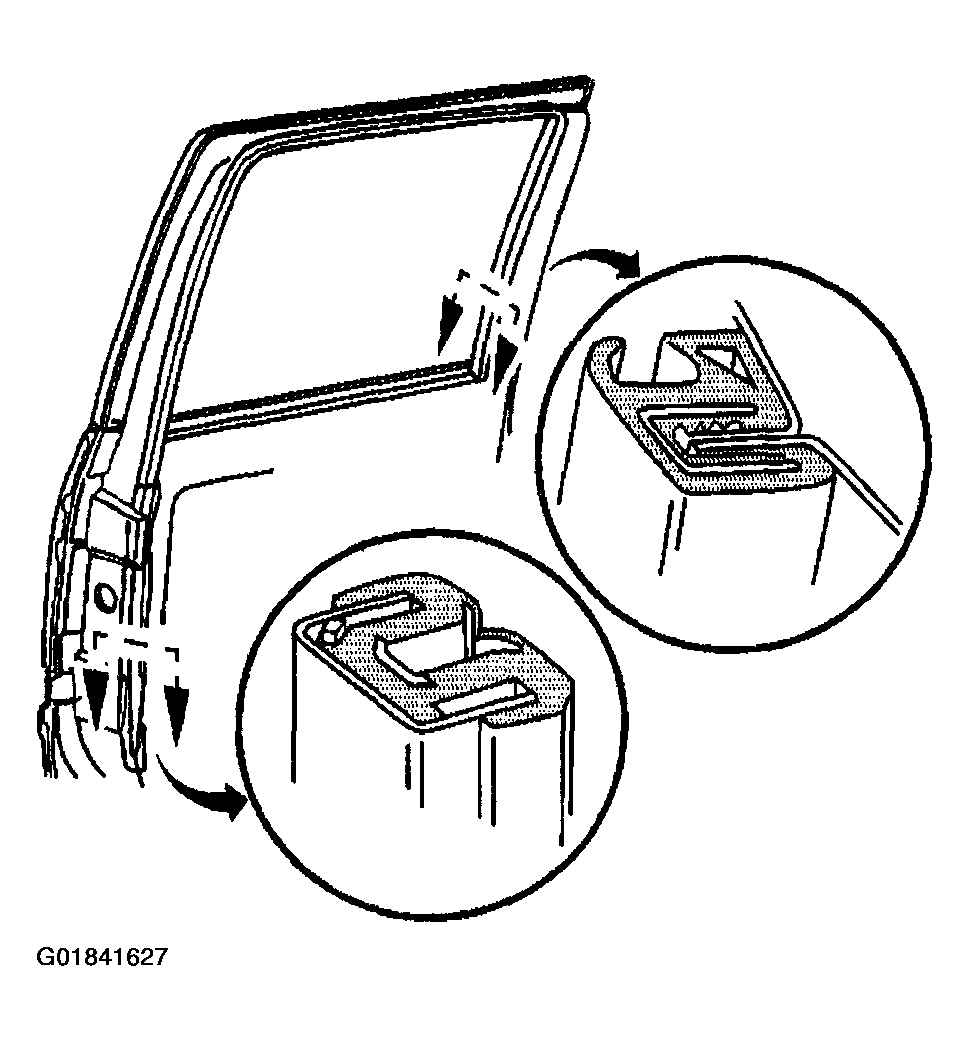

    Fig 1: Removing Rear Side Door Window Weatherstrip - Rear Door Window
    G01841627Courtesy of GENERAL MOTORS CORP.
