Removal Procedure

  1. Open the door.
  2. Remove the weatherstrip drip channel (3).

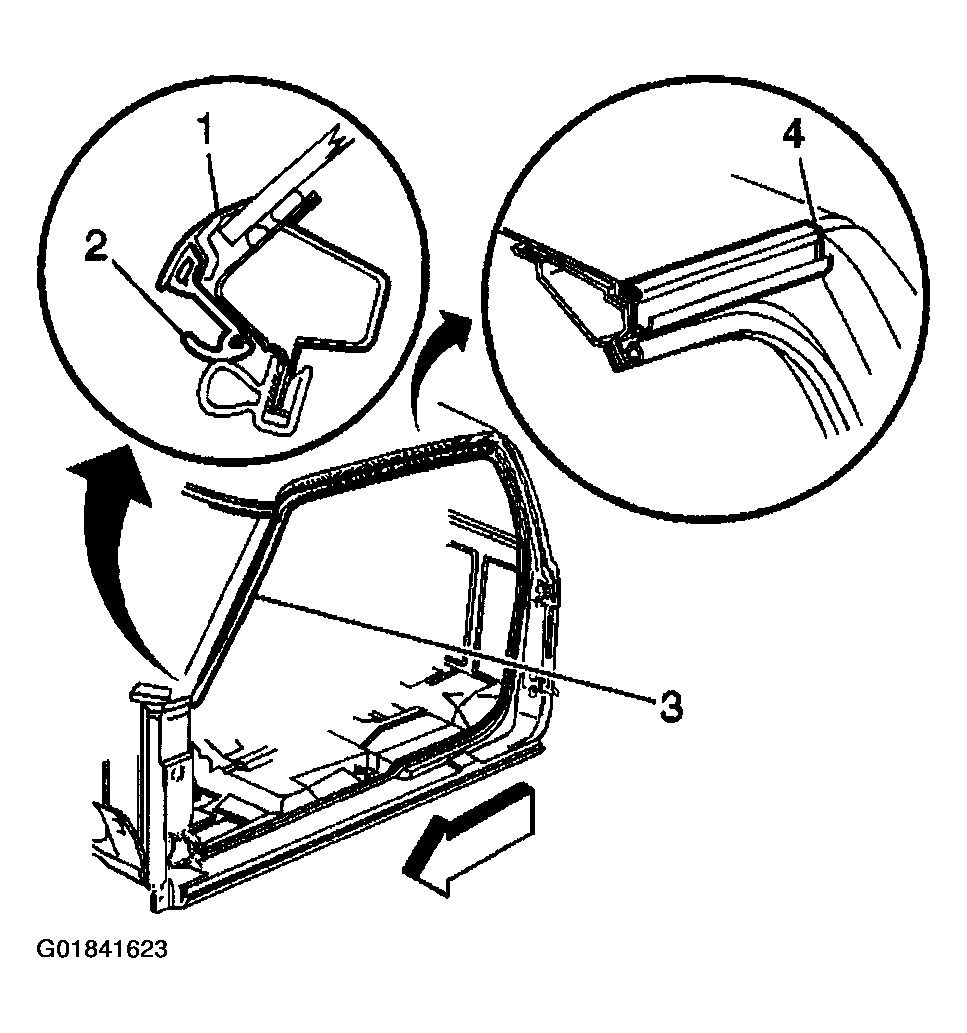

    Fig 1: Removing Weatherstrip Drip Channel - Front Door (Drip Channel)
    G01841623Courtesy of GENERAL MOTORS CORP.
