Removal Procedure

  1. Remove the bottom anchor bolt on the seat belt.
  2. Remove the trim cover of the shoulder belt opening.
  3. Using the J 38778  , remove the trim panel retainers from the rear side door.
  4. Feed the seat belt through the trim panel.

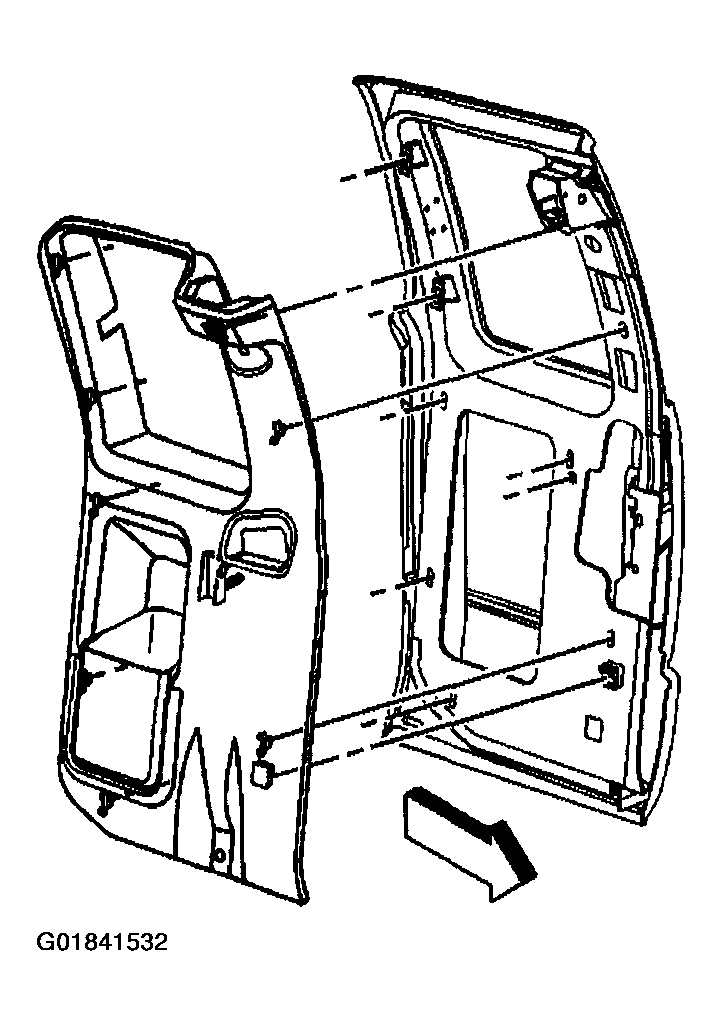

    Fig 1: Removing Trim Cover Of Shoulder Belt Opening - Side Rear Door (Extended Cab P/U Only)
    G01841532Courtesy of GENERAL MOTORS CORP.
