Removal Procedure

  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the window regulator handle, if equipped. Refer to Window Regulator Handle Replacement - Door .
  3. Remove the power accessory switch mounting panel, if equipped with power accessories. Refer to Power Accessory Switch Panel Replacement .
  4. Remove the trim panel armrest screws.
  5. Use the J 38778  in order to release the door trim panel retainers.
  6. Remove the door trim panel from the door.

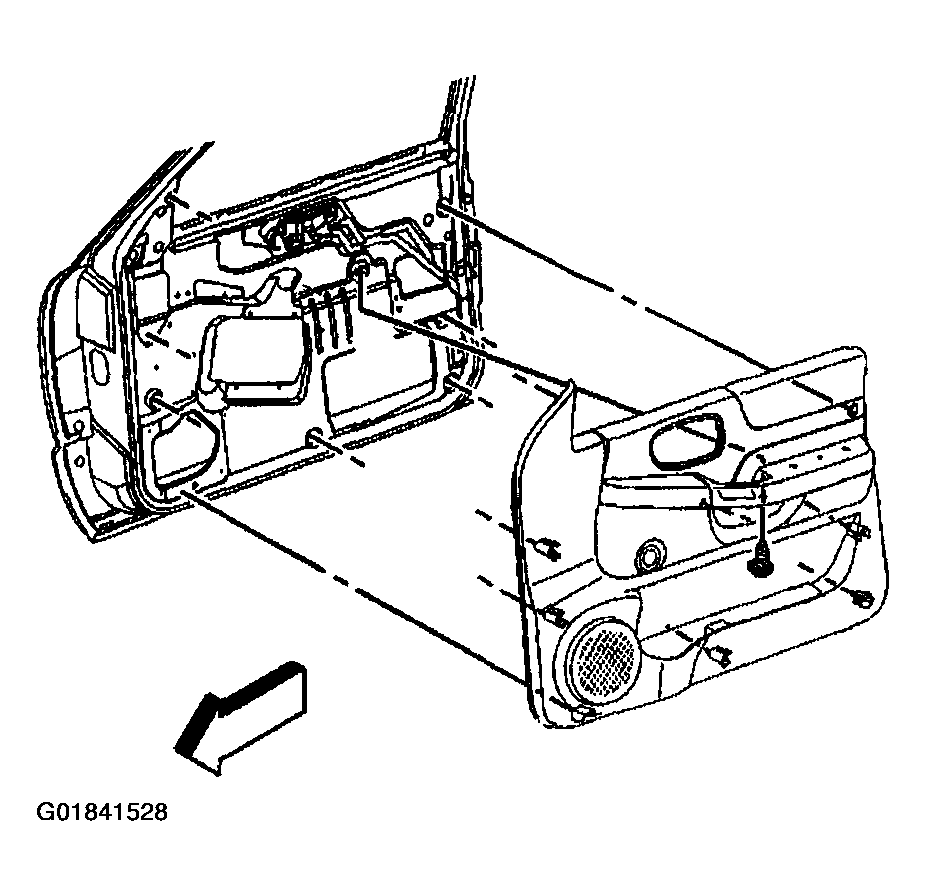

    Fig 1: Removing Door Trim Panel From Door - Side Front Door
    G01841528Courtesy of GENERAL MOTORS CORP.
