Removal Procedure

  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Utility)  or Trim Panel Replacement - Side Rear Door (Extended Cab P/U Only) .
  2. Remove the staples that secure the sealing strip to the trim panel.
  3. Remove the sealing strip.

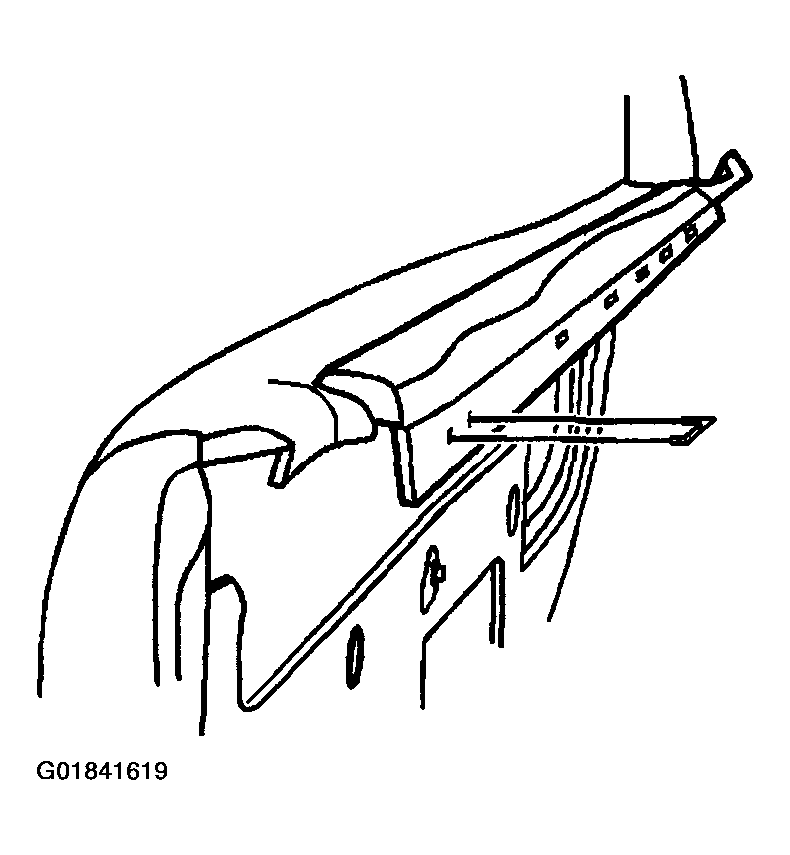

    Fig 1: Removing Staples That Secure Sealing Strip To Trim Panel - Rear Door Window Belt Inner
    G01841619Courtesy of GENERAL MOTORS CORP.
